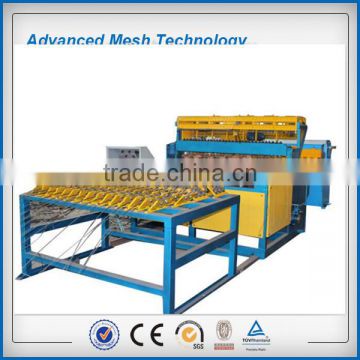

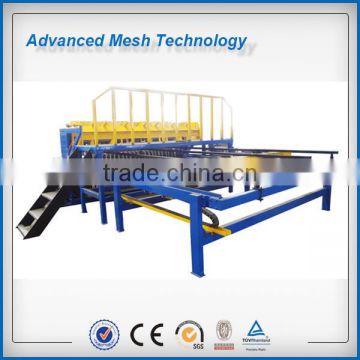

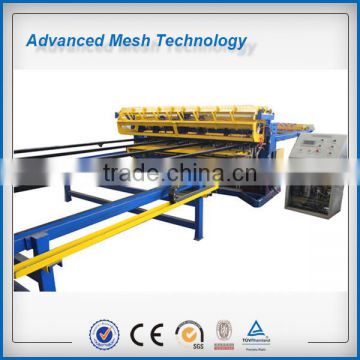

Wire mesh welding machines JK-AC-1200S main parameter:

Model	JK-AC-1200S
wire diameter	2-3.5mm
max. mesh width	1200mm
number of electrodes	25pcs
mesh length	3.2m
cross wire space	50-300mm
line wire space	25-300mm
electric capacity	375KVA
welding speed	60-90 cross wires/min
control system	PLC control



Wire mesh welding machines JK-AC-1200S characteristic

cross wire device: Panasoniv sevo motor(0.75kw)

mesh output fevice: Panasonic servo motor (1.5kw)

power system: helical gear motor, servo control(4kw)

operation system: HMI+touch screen in English

1. easy to operate: start the machine only one automatic run button.

2. motor servo control: adopts Delta VE high-end frequency converter snd PG card, the time of main motor 0-1500r/min accelerate and decelerate is 0.02s, zero speed could 200% torque run, ensure the machine quick reaction (the main motor with Autonics encoder)

3. Helical gear reducer: to ensure the machine high bearing running, adopts torque high bearing K-series helical gear reducer, and outside install, easy to maintanance.

4. mesh output device: Panasonic servo motor and planetary gear, ensure the system stability of and wire mesh size precision.

5. weft input device: Panasonic servo motor and planetary gear, ensure the weft uniformity and system stability.

6. fault display: when the machine fault, it will show on the touch screen(HMI), convenient to maintain.

7. parameter set: all the parameter could be set on the touch screen in English.

8. All the spare parts are famous brand abroad and inland.
