Good quality small clear roof tents



>> Exemplary Phots of Our Tents

Different designs available on request!







Detail specifications:



Other specification of clear roof tent
Span width	Side height	Bay distance	Main profile size
10m	3.4m,4m	5m	150x120x4mm, 200x120x4mm
12m	40m	5m	200x120x4mm
15m	3.4m,4m	5m	150x120x4mm, 200x120x4mm
20m	3.4m,4m,5.4m	5m	200x120x4mm
25m	3.4m,4m,5.4m	5m	200x120x4mm
30m	4m,5.4m	5m	300x120x4mm
40m	4m,5.4m	5m	300x120x4mm



Customized designs are available.

>>Specification





Size:



1) Span Width: 6m

2) Length: not limited,extendable by 3m/unit or 5m/unit.

3) Eave Height: 2.5m,3m,4m,5m, customizing possible.

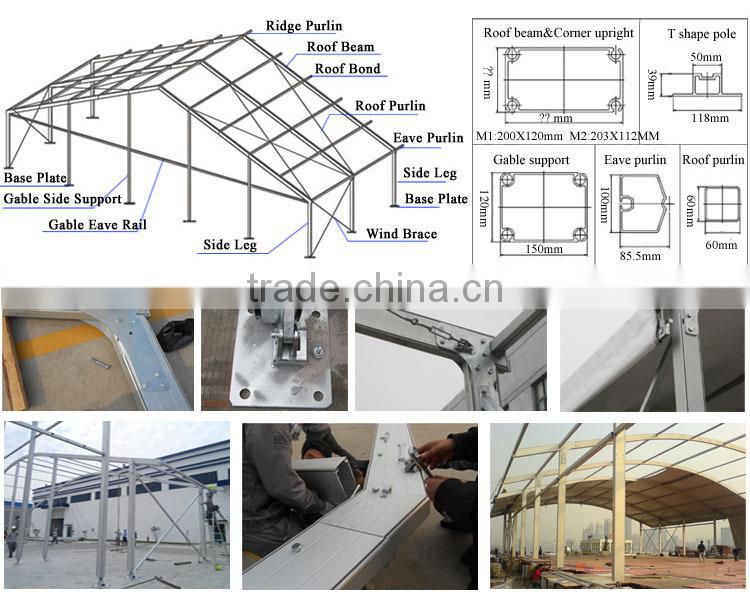

Framework:



1) Hard pressed aluminium 6082/T6

2) Connectors are made of hot dip galvanized steel according to DIN EN ISO 1461.

3) Durable, easy set up, lightweight, maintainance-free







Fabric Material:



1) Double PVC-coated polyester textile. Any colors, patterns and prints are available.

2) Waterproof; Flame retardant according to DIN 4102, fire class B1

3) 850g/sqm block out PVC for roof;  650g/sqm translucent PVC for sidewall







Character & Features:



1) Wind load: 80-102 km/h

2) Snow load: customized on request

3) Easy and fast to install and dismantle

4) Portable, flexible, durable. Convinent to transport and store.

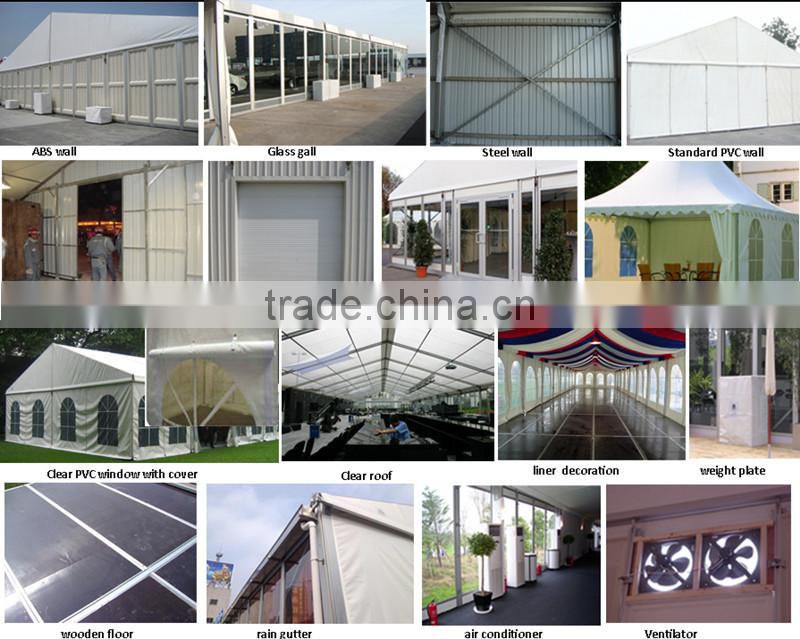

>> Optional Accessories







 >> Certification

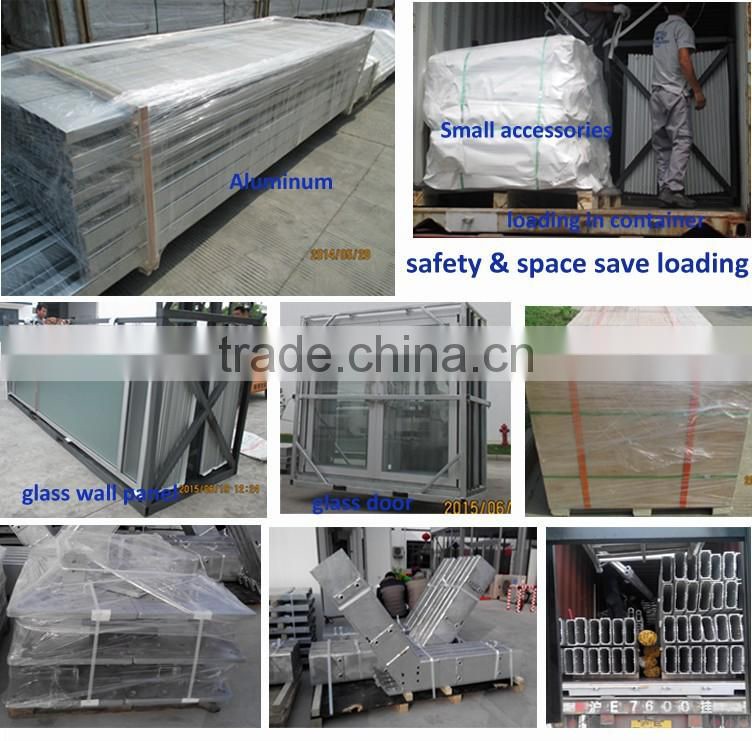

 >> Packaging



 1) aluminum profiles packed in film.

2) hardware packed in steel case.
3) roof and sidewall in PVC bag.



The delivery time would be 15-30 days after receipt of deposit.

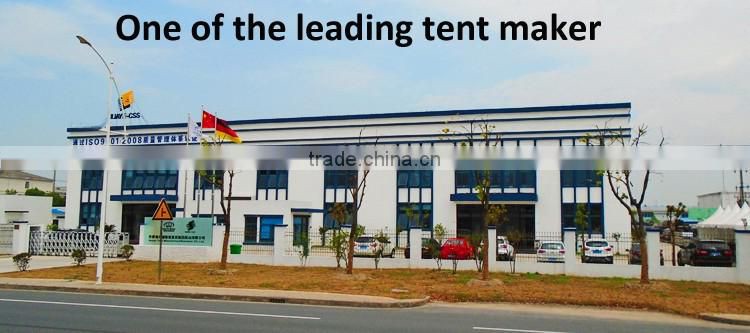

>> About Us



HUAYE Tent Manufacture Co.,Ltd is an industry leading company specialising in the design, manufacture and supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.







Why Choose us:



• A leading manufacturer of marquee tent systems and industrial buildings.
• A diverse range of over 600 different temporary structures systems for multiple applications.
• State-of-the-art production facility able to produce up to 60,000m² of new structures per week.

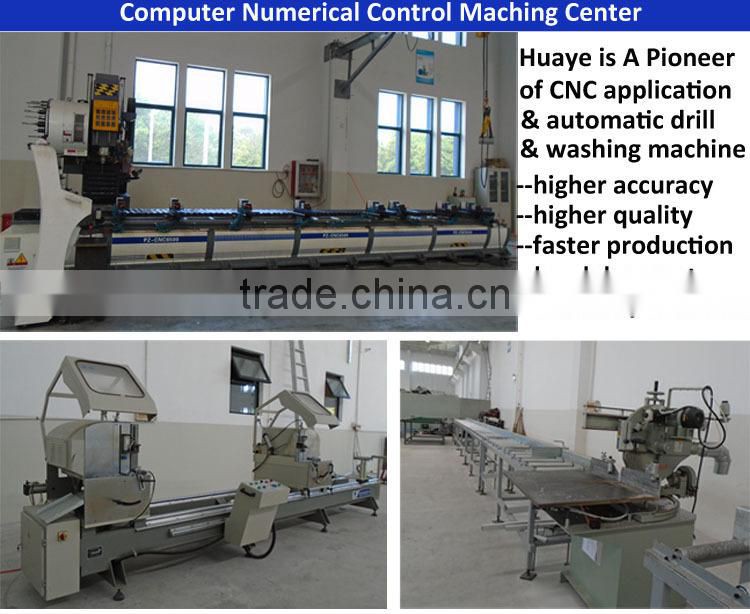

• Components are CNC machined and finished by hand ensuring a consistent high quality finish.
• Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
• European Standards guarantee high quality, professionally engineered and fully certified structures.
• In- house technical sales force, strategically located worldwide providing local knowledge and support.
• Short production lead-times can always be achieved irrespective of the size of order.
• A globally recognised brand you can trust, providing complete peace of mind.
• Competitive pricing policy across all product lines – ensuring customer satisfaction
