Concertina Razor Wire,Blade Thorn Rope
Product description
Product Description
Specifications

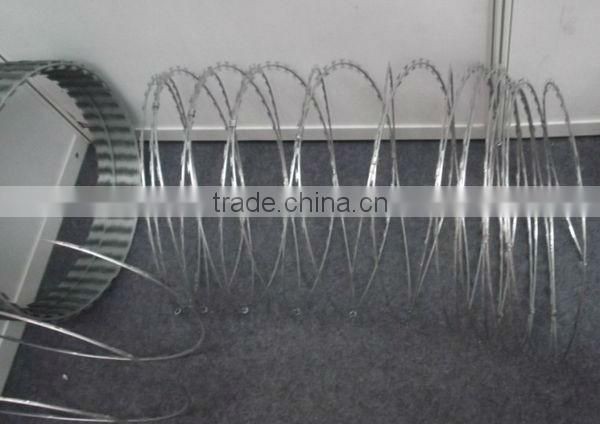

Concertina Razor Wire
Used together with welded mesh fence for defence of key sites.
Blade type: BTO-22, CBT-65
Concertina Razor Wire
Blade thorn rope, also known as blade barbed wire, razor wire, is a new type of mat.
Razor barbed wire divided into Single-ring razor barbed wire and cross razor barbed wire.
Single-ring razor barbed mesh, available without a clamp, is according to its natural form of spreading.
Spiral razor cross-barbed mesh is made of two razors stainless steel and galvanized steel plate in between as a powerful clamp buckle, which takes the shape of cross when spread.

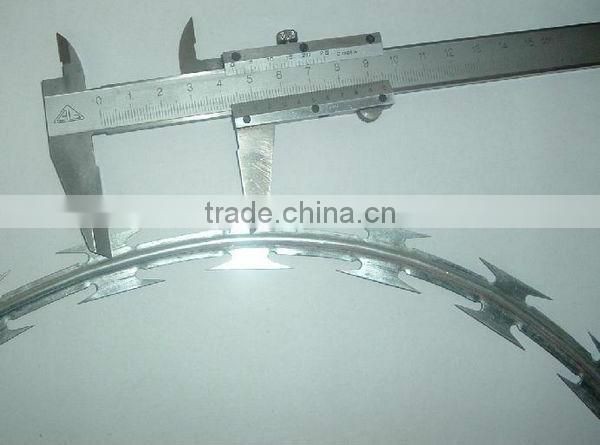

Razor Blade Type and Specification | ||||||
Reference Number | Blade Style | Thickness | Wire Dia | Barb | Barb | Barb |
BTO-10 |
| 0.5±0.05 | 2.5±0.1 | 12±1 | 13±1 | 26±1 |
BTO-12 |
| 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-18 |
| 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 |
| 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 |
| 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 34±1 |
BTO-30 |
| 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
CBT-60 |
| 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 96±2 |
CBT-65 |
| 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Standard Production Type | ||||
Loop Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13M | CBT-60.65 | Single coil |
700mm | 56 | 13-14M | CBT-60.65 | Single coil |
960mm | 56 | 14-15M | CBT-60.65 | Single coil |
450mm | 56 | 8-9m(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11M(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M(5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M(5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M(5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M(5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M(5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M(5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
