ROV underwater robot control box, ground station, ground operation box, industrial control computer, main unit of the equipment box

Product description

The underwater robot ground station (3-foldable screen) shall meet the following technical parameter requirements:

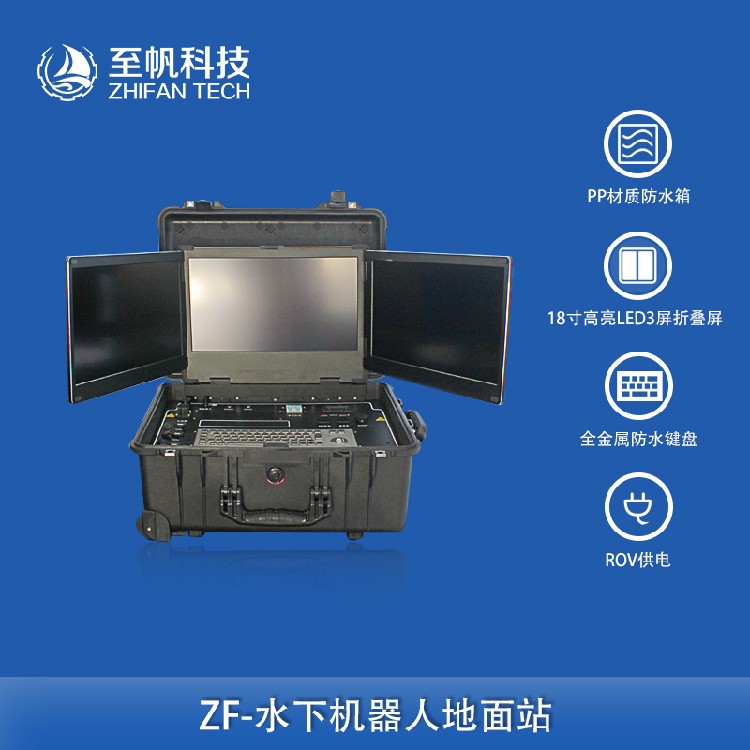

◆ Waterproof case made of PP material;

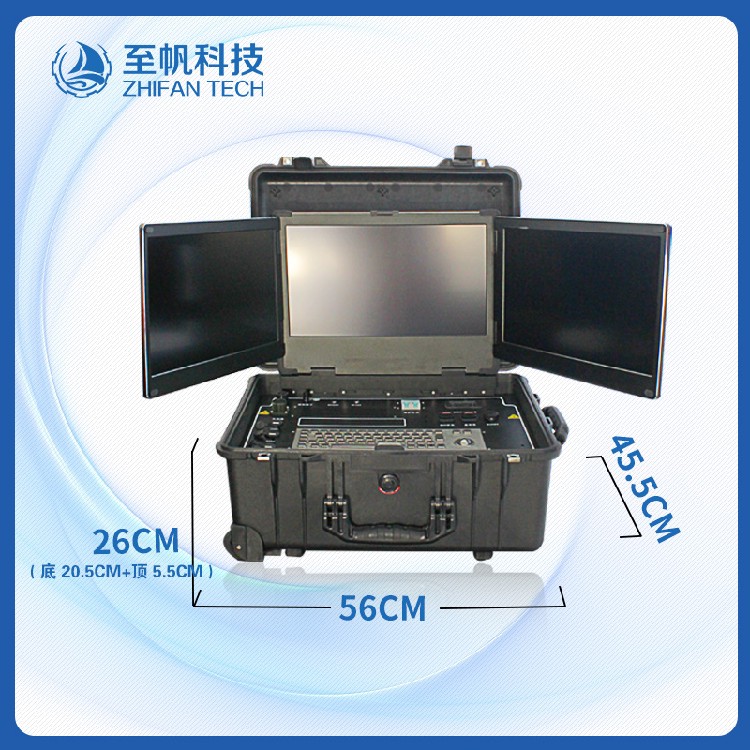

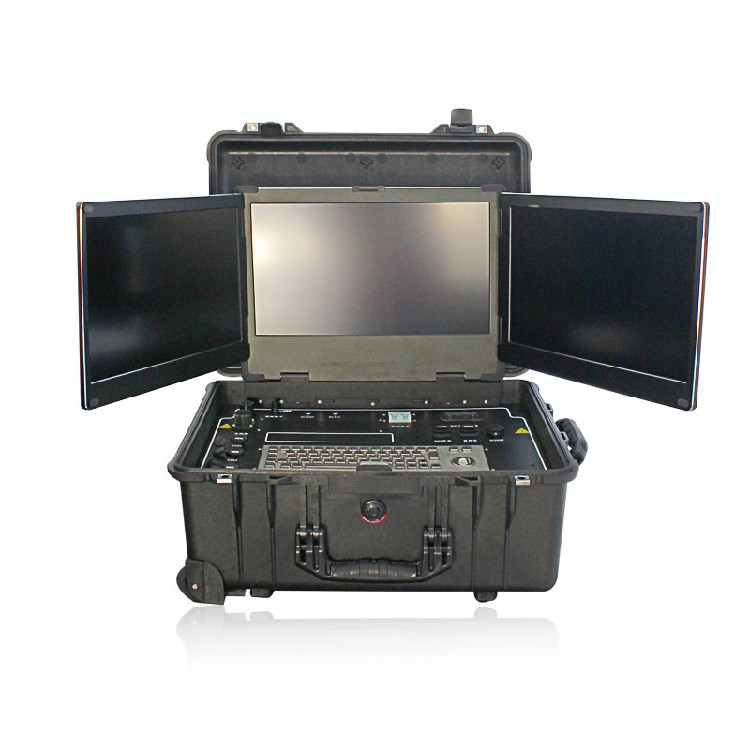

◆ 18-inch high-brightness LED triple-foldable screen;
◆ Input voltage: AC220V, Output voltage: DC380V, Power: 6000W;
◆ CPU: i7-1165G7, 16GB RAM, 1TB SSD, operating system: Windows 10;

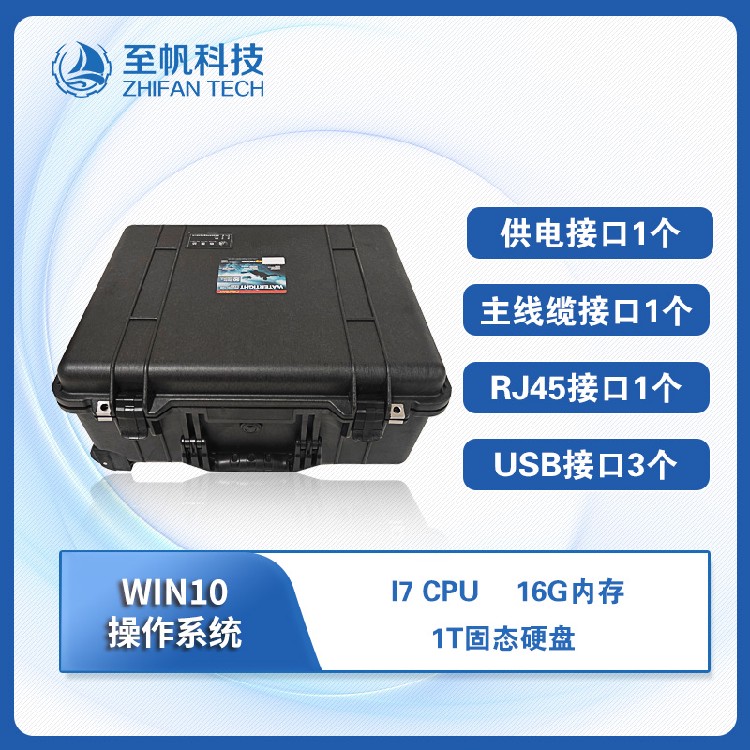

◆ 1 power supply interface, 1 main cable (ROV) interface, 1 RJ45 external output interface, 3 USB interfaces;

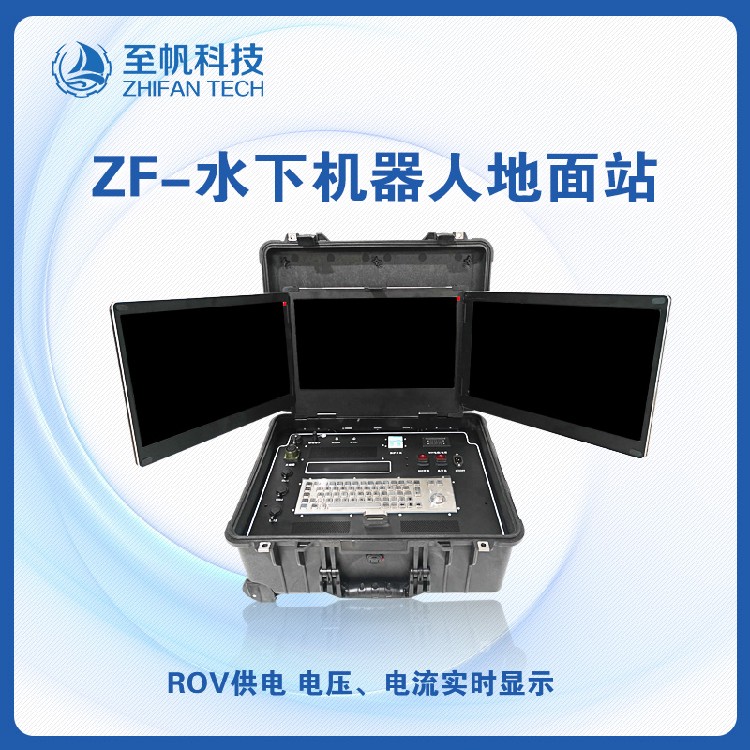

◆ Real-time display of ROV supply voltage and current;
◆ All-metal waterproof keyboard with integrated mouse;
◆ Equipped with an air switch, leakage protector, and grounding terminal;
◆ Weight: <25kg;
