I. Product Overview

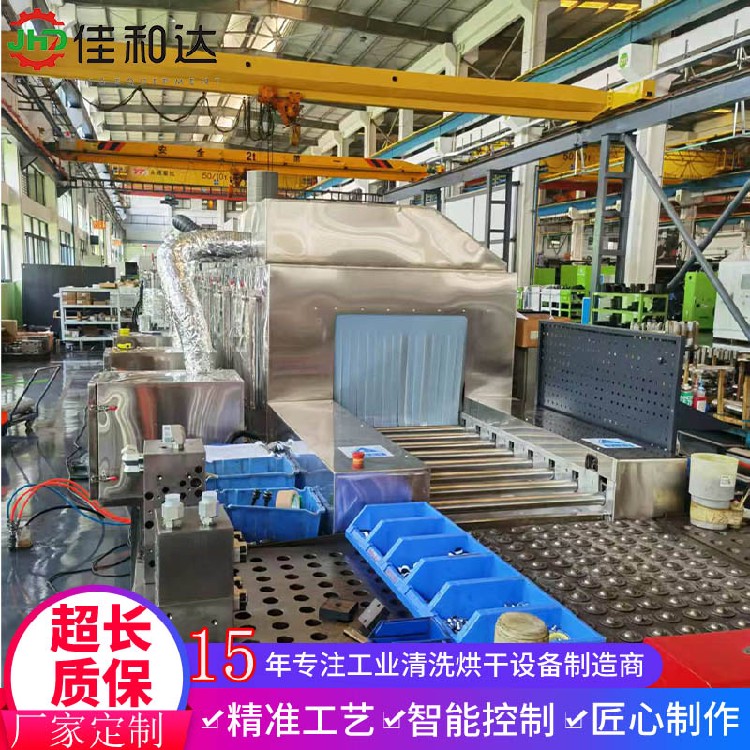

The mold roller high-pressure spray cleaning machine is an automated cleaning equipment specially designed for medium and large injection molds and die-casting molds. Adopting a heavy-duty roller conveying system, it integrates 360° high-pressure spraying, rotary brushing, cutting and air drying and other functions. Through the combination of high-temperature alkaline cleaning agent and high-pressure water flow, it can quickly remove oil, mold release agent residue and plastic shavings from mold separation surface, mold cavity, thimble hole and other parts. The equipment adopts a closed structure and is equipped with a filtration and circulation system, which can realize the online automatic cleaning of the mold, greatly improve the efficiency of mold maintenance, and ensure the production quality.

II. Main components

1. Body structure

· Adopt square skeleton + 304 stainless steel plate fully closed structure

· The segmented type can open the protective door, which is convenient for mold loading and unloading and equipment maintenance.

· Set up a collection sink and splash-proof baffle at the bottom

2. Conveying system

· Heavy-duty rubber-covered roller set, single-wheel load-bearing 500kg

· Variable frequency motor drive, the speed is 0.5-5m/min adjustable

· V-type guide device to ensure the smooth delivery of the mold

3. Cleaning system

· High-pressure pump group: pressure 100bar, flow rate 120L/min

· Three-dimensional rotating sprinkler pipe: 24 stainless steel nozzles

· Upper and lower cleaning unit: top spray + bottom spray + side spray combination

· Rotating brushing device: nylon/stainless steel brush optional

4. Heating system

· Stainless steel electric heating tube, power 30kW

· PID temperature control system, temperature control accuracy ±2℃

· Insulation layer: 50mm polyurethane foam

5. Filtration system

· Third-level filtration: coarse filter + bag filter + magnetic separator

· Filtration accuracy: 100μm

· Oil-water separation device (optional)

6. Control system

· PLC+10-inch touch screen

· Preset a variety of mold cleaning procedures

· Real-time monitoring of pressure, temperature, flow and other parameters

· Fault self-diagnosis and alarm function

III. Workflow

1. Mold conveying → 2. Pre-spray moistening → 3. High-pressure spray cleaning → 4. Brushing (optional) → 5. Rinse with water → 6. Cut the wind and blow the water → 7. Drying (optional) → 8. Out of material

IV. Product features

· Cleaning: 100bar high-pressure water flow with three-dimensional spraying, no cleaning dead angle

· Energy-saving and environmental protection: cleaning liquid is recycled, equipped with oil-water separation device

· Simple operation: human-computer interface operation, preset a variety of cleaning programs

· Reliable: multiple protection, including emergency stop button, protective door interlock, etc.

· Strong adaptability: can handle various specifications of molds within 2000kg

V. Application field

· Daily maintenance and cleaning of injection molds

· Die-casting mold release agent cleaning

· Regular deep cleaning of the mold

· Cleaning of large-scale tooling fixtures

VI. Optional configuration

· Pure water rinsing system

· Compressed air drying system

· Automatic addition device for cleaning agent

· Equipment size customization

· Special material sprinkler system

VII. Technical parameters

Project Parameters

Power supply 380V/50Hz/three-phase four-wire

Total power 65kW

Water capacity 1200L

Working pressure 50-100bar adjustable

Working temperature Room temperature -90℃ adjustable

Note: This equipment can be customized, designed and manufactured according to the specific needs of customers.
