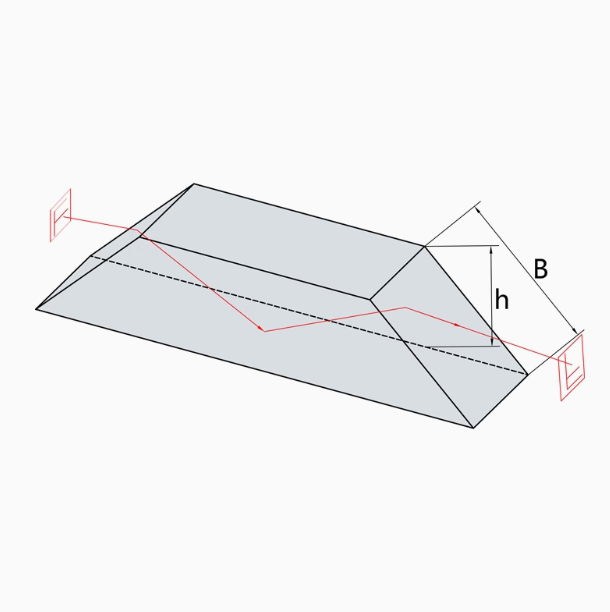

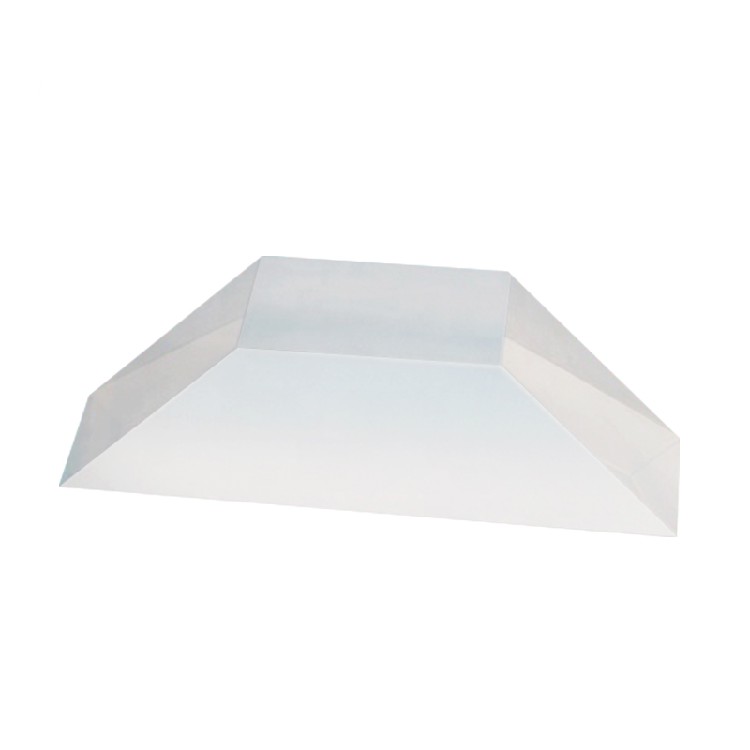

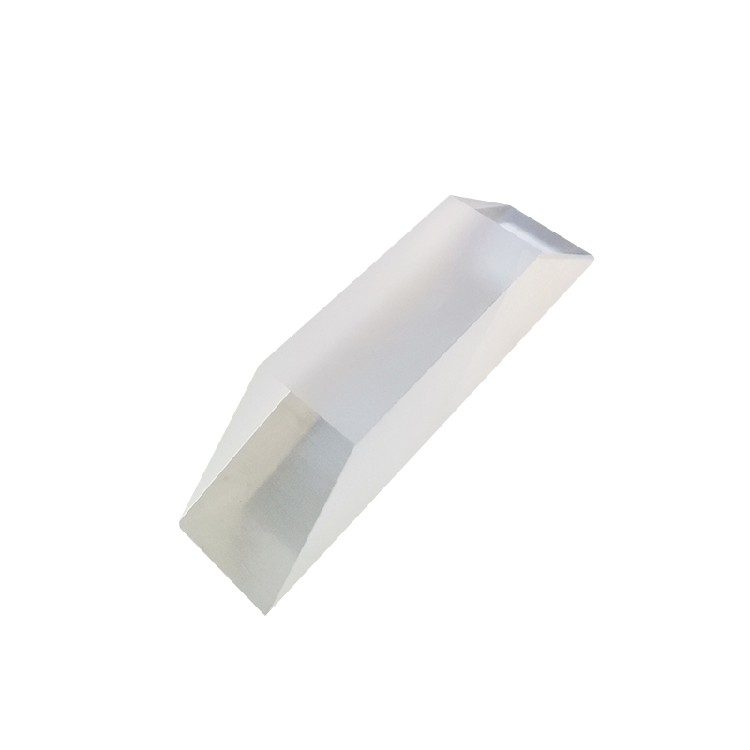

A Dove prism is used to rotate, invert, or retroreflect an image, depending upon the prism's rotation angle and the surface through which the light enters the prism.Dove prisms are made of N-BK7 glass and provide high transmission from the visible to near-infrared spectrum.

Rotate, Invert, or Retroreflect an Image

Sizes Available

Available Uncoated or AR Coated for 350 - 700 nm or 650 - 1050 nm

Rotate and Invert an Image or Retroreflect Light

Offered Uncoated in Six Face Widths: 5 mm, 10 mm, 15 mm, 20 mm, 25 mm, and 30 mm

Custom Coatings

Upon request, our prisms can be AR coated for the 245 - 400 nm (-UV), 350 - 700 nm (-A), 650 - 1050 nm (-B), or 1050 - 1700 spectral ranges.
