Product Description

Bias Tee provides both DC bias current  and RF signal via bias network. The features include small size, light and flat frequency response, it is used in microwave measurement area such as amplifier, programmable attenuation and swith circuit etc.



Applications

biasing amplifiers

biasing of laser diodes

biasing of active antennas

test accessory



Technical Parameters

Frequency range (GHz)	VSWR	Insertion Loss (dB)	Connector Type
0.01-1.0	≤1.2	≤1.0	RF IN SMA(F) RF+DC OUT SMA(F) DC IN SMA(F)
1.0-3.0	≤1.25	≤2.5



Maximum Ratings

Operating Temperature -35°C to 80°C

Storage Temperature -55°C to 100°C

RF Power 200W max.

Voltage at DC port 72V max.

Input Current 2A

• Permanent damage may occur if any of these limits are exceeded.



Outline Dimensions

                                                                                                                                  Unit:mm

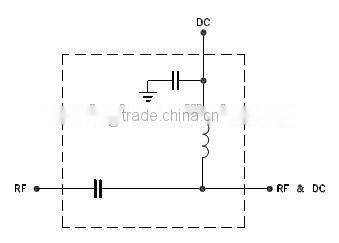

Electrical Schematic
