Product Description

Bias Tee provides both DC bias current  and RF signal via bias network. The features include small size, light and flat frequency response, it is used in microwave measurement area such as amplifier, programmable attenuation and swith circuit etc.



Applications

• biasing amplifiers

• biasing of laser diodes

• biasing of active antennas

• test accessory



Technical Parameters



Frequency range (GHz)	VSWR	Insertion Loss (dB)	Connector Type
0.01-1.0	≤1.25	≤1.0	RF IN F-Female RF+DC OUT  F-Female DC IN Cable
1.0-3.0	≤1.3	≤3



Maximum Ratings

Operating Temperature -35°C to 80°C

Storage Temperature -55°C to 100°C

RF Power 200W max. Voltage at DC port 72V max.

Input Current 2A

• Permanent damage may occur if any of these limits are exceeded.

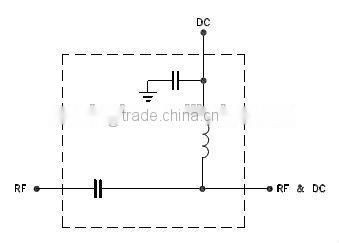

Electrical Schematic



Outline Dimensions

                                                                      Unit:mm

Production Line







Machine and test equipment:



Design concept

It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.



Environmental Guarantee

Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.



After-sale service

Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).



Other Service

We can produce products in your brand according to your request.



If you need more information about it, please send me inquiry, you can get our reply within one day.
