Non-electric Non-maintenance Purification Tank

Efficient, stable, and simple

The equipment adopts the operation mode of a forced ventilation biological drip filter bed,which has powerful functions and stable operation.It can ensure that the effluent meets the standard even when the coefficient of water quality and quantity changes greatly.

No energy consumption, no maintenance

Pioneering the use of high-level natural wind driven induced draft fans,which can operate automatically for a long time without consuming electrical energy,and support fast start-up and long-term shutdown.

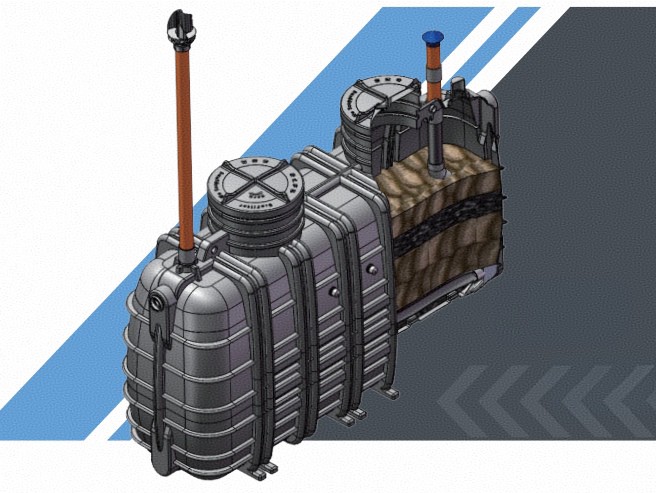

Product principle

It is a biological membrane system with filtering function. Its working principle is as follows:

The wastewater is evenly distributed into the biological reaction system through a unique water distribution system (shaker bed). On the surface of the BioFilter nano-porous biological enzyme packing in the system, a biofilm is formed. During the downward flow of the wastewater, the pollutants are removed by adhering to the biofilm on the surface of the BioFilter nano-porous biological enzyme packing.

The aeration within the system is achieved through the principles of aerodynamics, ingeniously introducing natural air into the equipment. This enables multiple-stage anaerobic, anoxic and aerobic reactions to occur alternately within the tank. The product demonstrates excellent removal effects for COD, BOD, ammonia nitrogen and SS.

Project Cases

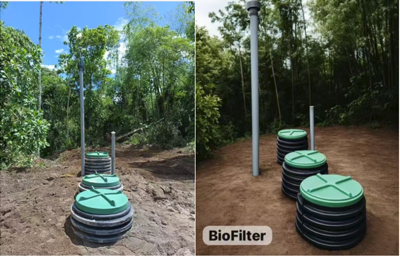

South America - Ecuador - Tourist Area Wastewater Treatment Project

Installation time: 2025

Capacity: 2.0m3/d，3.0m3/d

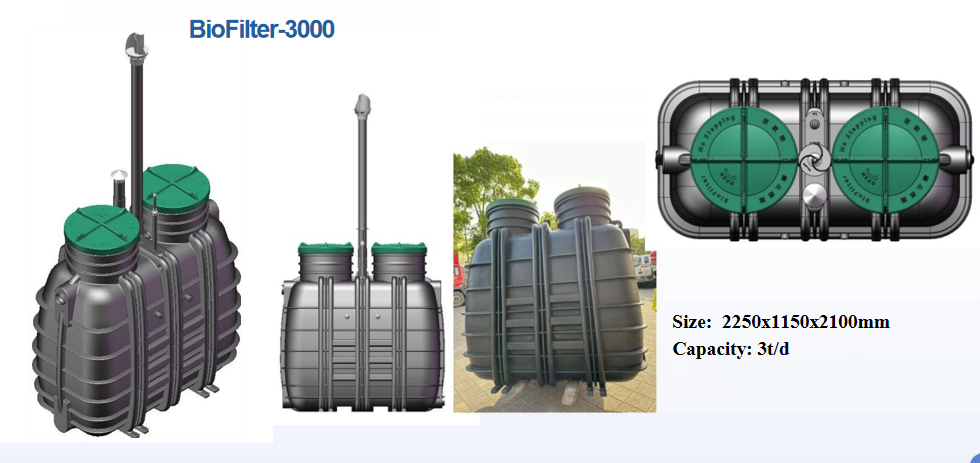

Model: BioFilter-2000 and BioFilter-3000

Project Status：The camping area and scenic area projects have strict environmental requirements. After a series of comparisons and selections, the customers chose multiple models of equipment such as BioFilter-2000 and BioFilter-3000 to treat the domestic sewage generated by tourists in the scenic area. These equipment do not require electricity connection and do not need maintenance, which significantly reduces the operating and maintenance costs. The treated effluent is clear and odorless, and has received wide acclaim from users and tourists.
