Passive RFID Tag 2.4ghz with Low Cost



Product details:





Electrical Characteristics
Static Current:	<3µA
Operating Current:	<15mA, Peak Current: <40mA
Bettery Life:	<4.5 years
Working Frequency:	About 5 times / 2s
Microwave Link Characteristics
Rate of Communication:	Bidirectional, 1024K bits/s
Operating Frequency:	2.4~2.5GHz
Reading Distance:	<80M
Physical Characteristics
Material of Shell:	ABS
Type:	Read Only
Dimension:	86*52*5mm
Color:	White or other customized
Protection Standard:	Waterproof IP34
Installation:	Hanging, Sticking to the Object Surface
Working Environment
Operating Temperature:	-40℃~ +80℃
Operating Humidity:	<85%
Storage Temperature:	-40℃~ +80℃
Shake:	10 ~ 2000Hz, 15g Three Axis
Anti Electromagnetic Interference:	10V/m 0.1 ~ 1000MHz AM Amplitude Modulated Electromagnetic Wave
Feature & Advantage
Anti-Collision:	Identify 100pcs Tags/s
High Identification Rate:	Up to 200km/h
Identification Security:	Encryption and Authentication to ensure Data Security and Prevent Eavesdropping and Data Cracking
Identification Direction:	Directional and Non directional Identification Available
High Identification Reliability:	-40℃~ +85℃, Anti Shock
Effective Cost:	Using 0.18uM Chips lead to Lower Cost

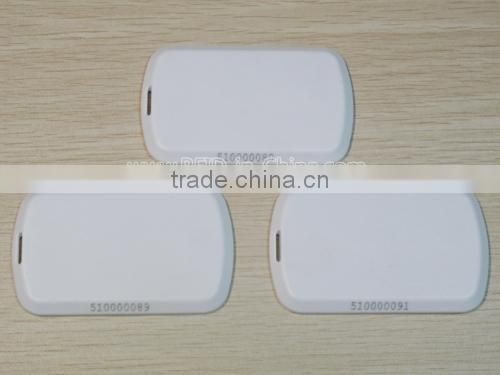

Other more pictures for Passive RFID Tag 2.4ghz with Low Cost
