hot sales 358 anti-climb security fence



Securifor358 is the ultimate welded mesh system offering one of the most effective means of providing a high degree of physical perimeter protection where a discreet visual impact on the immediate environment is essential.



1) Material:

Manufactured from hard drawn wire and electro-resistance welded at every intersection.



2) specification:

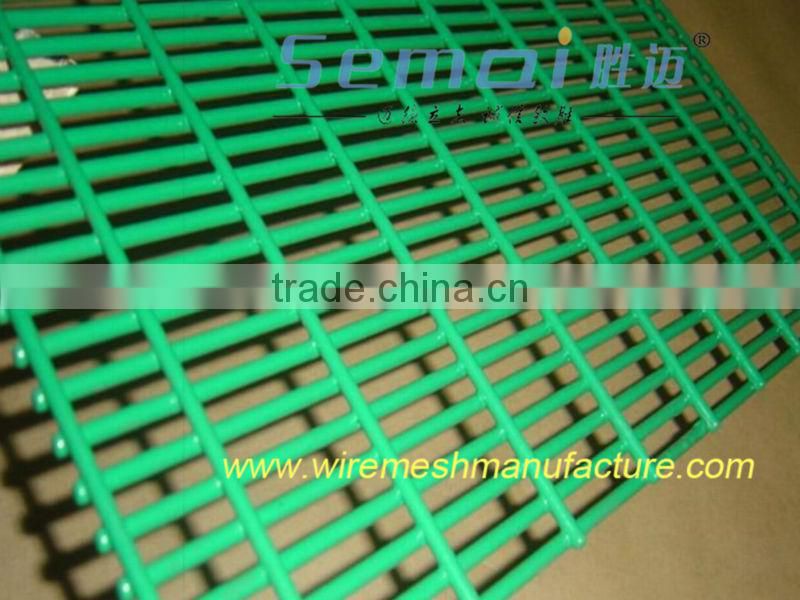

Mesh pattern:
76.2mm (3") x 12.7mm (0.5") welded at each intersection
Horizontal wires: 4mm diameter at 12.7mm centres
Vertical wires: 4mm diameter at 76.2mm centres
Weld strength: 75% of the minimum tensile strength of the wire
Tensile range 540-690 N/m²

3) application:

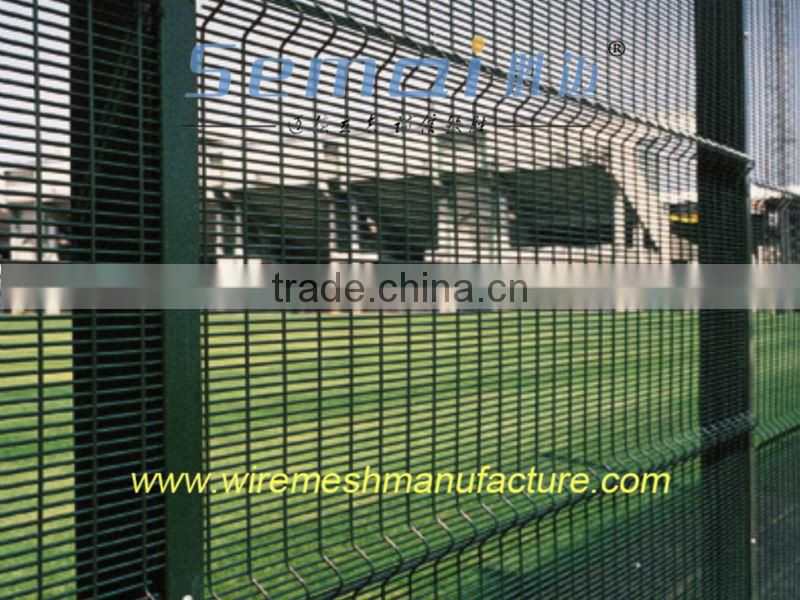

358 high security fence is world renouned for its performance as an anti-climb & anti-cut through barrier, whilst providing the lowest level of visual impact to the surroundings. Designed to give attractive, long lasting and secure perimeter protection for retail,industrial and commercial properties, schools, public utilities and is ideally suited for electronic alarm and detection systems - no blind spots for CCTV. Military, airports, secure units and prisons.



4)advantage:

High security fence, anti-climb and anti-cut
Flat panel that gives improved aesthetic appearance
Maximum strength and security
Excellent through vision
Wide range of colour options
Available as a complete system



5) sizes

Panels		Posts
Fence	Panel Size	section	O/A Length	Total number of fixings
height	Height/Width			Inters- 1 Clamp bar	Corners- 2 Clamp bars
m	mm
2.0	2007 x 2515	60x60x2.5mm	2700	7	14
2.4	2400 x 2515	60x60x2.5mm	3100	9	18
3.0	2997 x 2515	80x80x2.5mm	3800	11	22
3.3	3302 x 2515	80x80x2.5mm	4200	12	24
3.6	3607 x 2515	100x60x3mm	4500	13
3.6	3607 x 2515	100x100x3mm	4500		26
