>> Specification





Size:

1) Span Width: 3m,4m,5m,6m,8m,9m,10m,12m,15m,20m,25m,30m,35m,40m,45m,50m.

2) Length: not limited,extended by 3m/unit or 5m/unit.

3) Eave Height: 2.5m,3m,4m,5m, accept customized.



Framework:

1) Hard pressed aluminium 6082/T6

2) Connectors are made of hot dip galvanized steel according to DIN EN ISO 1461.

3) Durable, easy set up, lightweight, maintainance-free



Fabric Material:

1) Double PVC-coated polyester textile. Any colors, patterns and prints are available.

2) Waterproof; Flame retardant according to DIN 4102, fire class B1

3) 850g/sqm block out PVC for roof;  650g/sqm translucent PVC for sidewall



Character & Features:

1) Wind load: 80-102 km/h

2) Snow load: customized on request

3) Easy and fast to install and dismantle

4) Portable, flexible, durable. Convinent to transport and store.



Detail specifications:

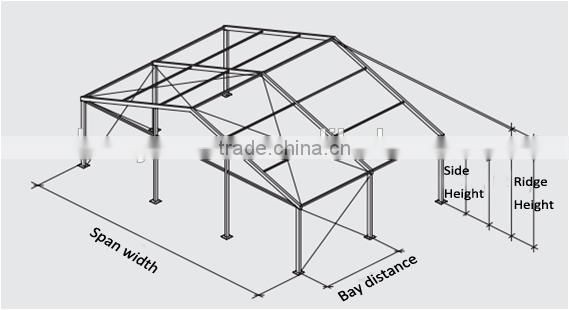

Span width	Side height	Bay distance	Main profile size
10.00m	3.40m,4.00m	5.00m	150x120x4mm, 200x120x4mm
12.00m	4.00m	5.00m	200x120x4mm
15.00m	3.40m,4.00m	5.00m	150x120x4mm, 200x120x4mm
20.00m	3.40m,4.00m,5.40m	5.00m	200x120x4mm
25.00m	3.40m,4.00m,5.40m	5.00m	200x120x4mm
30.00m	4.00m,5.40m	5.00m	300x120x4mm
40.00m	4.00m,5.40m	5.00m	300x120x4mm



Customized designs are available.









1) Roof Covers: Transparent, Translucent, block out PVC covers;

2) Sidewall: Soft PVC,Glass, ABS, Steel sheet, Sandwich panel;

3) Doors: Glass door, Sliding door, Rolling door, Double-wing door, Aluminum;

4) Lining Decoration: Roof lining, Wall Curtain, Lighting;

5) Flooring,Rain gutter,Ventilation system, Extended Ramps;

6) Transport and storage rack for doors

and many more...

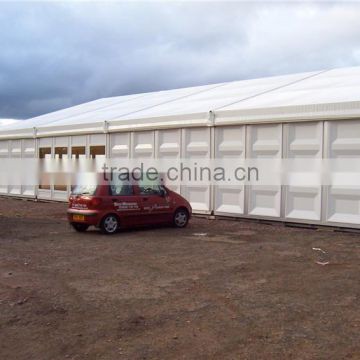

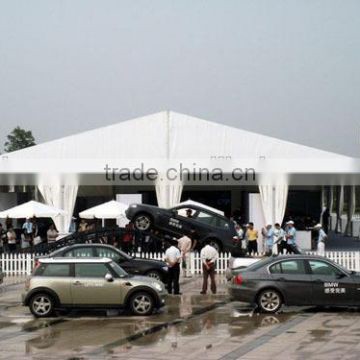

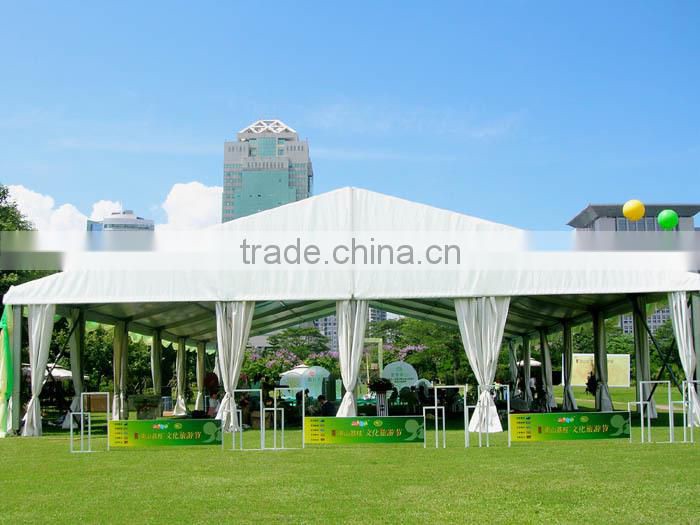

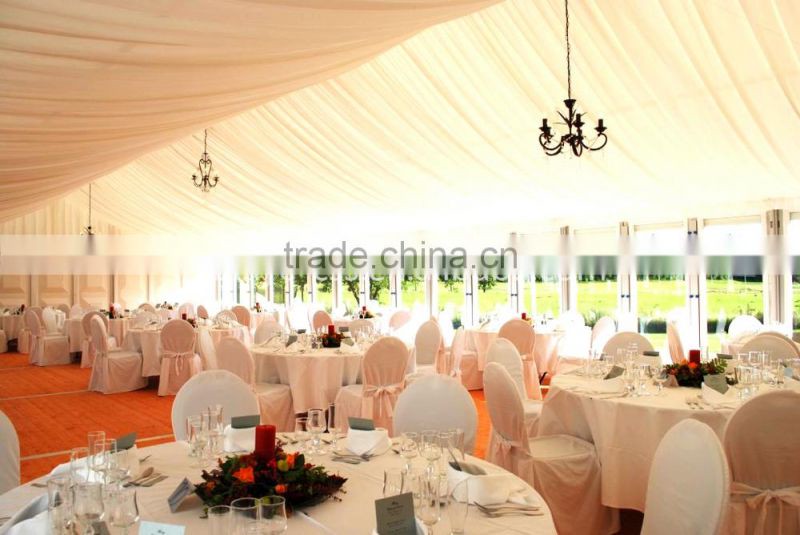

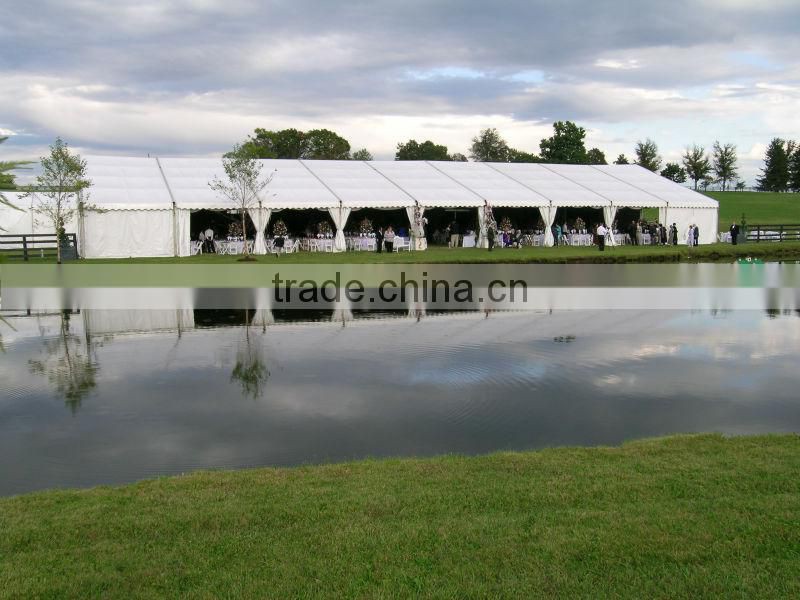

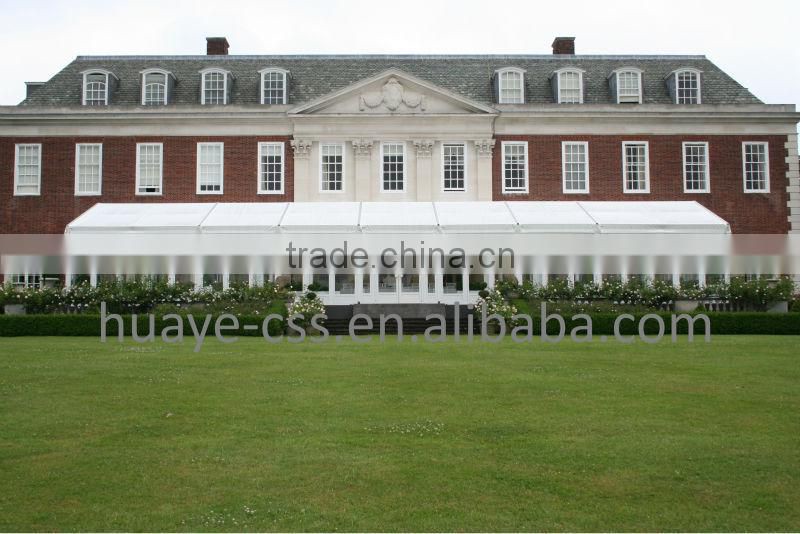

>> Application of Our Tents

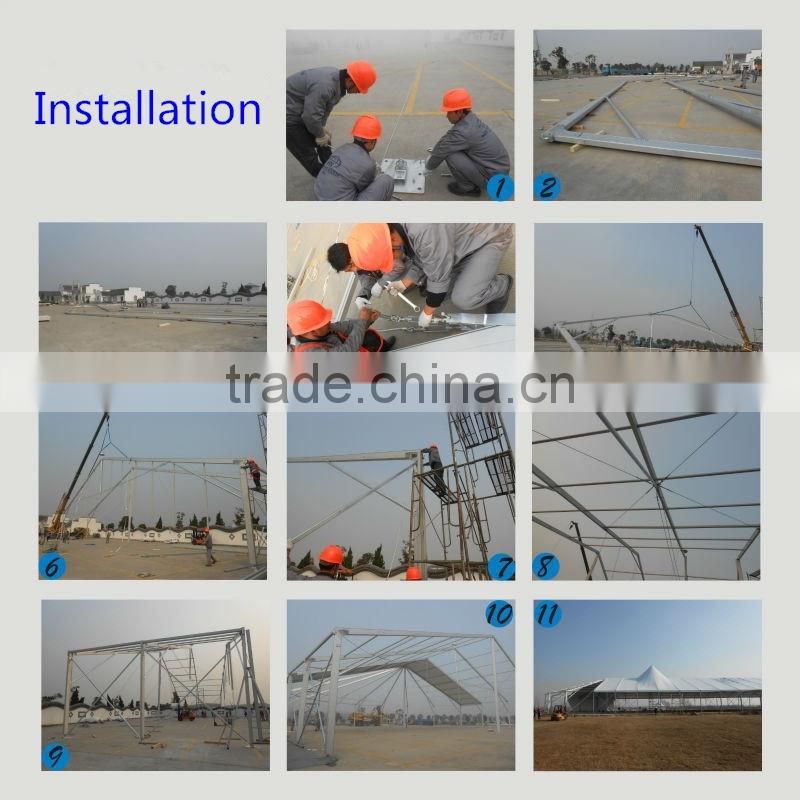

>> Easy Installation























 >> Warranty



Material of Marquee

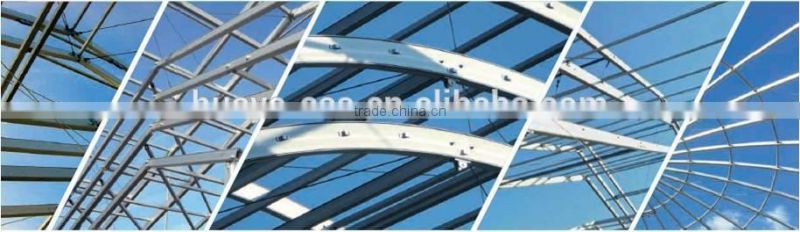

   Aluminum profile: solid, 100% hard pressed, four-groove aluminum hollow profile (GB6063/T5, GB6061/T6) whose use life can be 15 to 20 years.



   PVC Fabric cover: completely waterproof with high quality double PVC-coated polyester textile.

 Flame retardant according to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.



   Steel Connector: hot-dip galvanized steel, zinc thickness over 80um.















>> Payment and shippment



At present we accept payment made by T/T,L/C,Western Union,MoneyGram,Paypal,Escrow.

30% as deposit,balance shall be cleared before delivery.

The delivery time would be 15-30 days after receipt of deposit.













 >> About Us



HUAYE Tent Manufacture Co.,Ltd is an award winning company specialising in the design, manufacture and supply of temporary and semi-permanent clear-span demountable tent systems. It supplies both the private and public sectors including the hospitality and events industry, the military, aid organisations, retail and general industry.



Why Choose us:



• A renowned leading Germany- based manufacturer of marquee tent systems and industrial buildings.
• A diverse range of over 600 different temporary structures systems for multiple applications.
• State-of-the-art production facility able to produce up to 60,000m² of new structures per week.
• Components are CNC machined and finished by hand ensuring a consistent high quality finish.
• Dedicated technical team of CAD / CAM designers and stability engineers for custom projects.
• European Standards guarantee high quality, professionally engineered and fully certified structures.
• In- house technical sales force, strategically located worldwide providing local knowledge and support.
• Short production lead-times can always be achieved irrespective of the size of order.
• A globally recognised brand you can trust, providing complete peace of mind.
• Competitive pricing policy across all product lines – ensuring customer satisfaction.



If you are interested in our tent,please feel free to contact me.We will offer you good quality,reasonable price and best service.As one of the leading tent manufacturer in China,we know what you want.
