Specifications

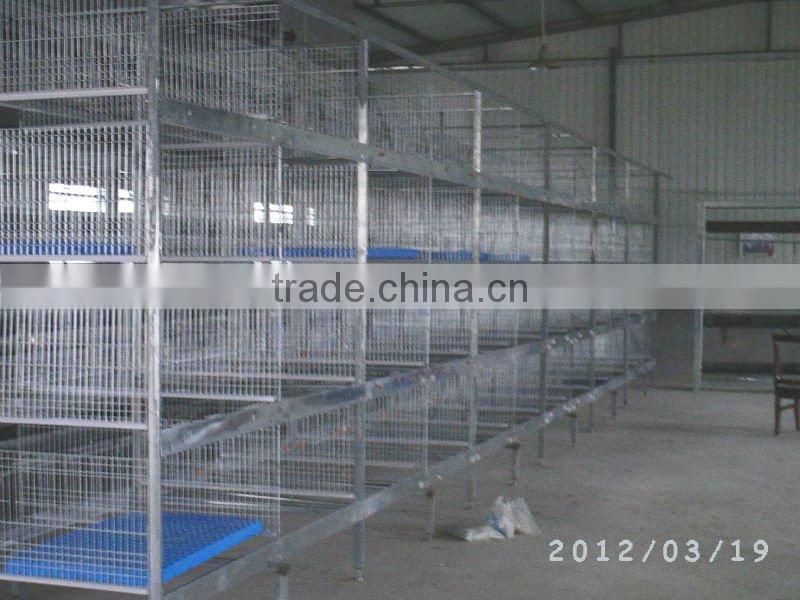

Automatic broiler cage

1.Material:hot galvanized mesh

2.per unit dimention:1*1.2*0.4meter

3.per capacity:160 birds





H type automatic broiler cage

1. The cage pullet rearing cages from 1-80day old,4lines, capacity: 160birds/unit, C21sion: 1000x1200x4250mm
2. cages/unit, 1cells/cage, 21birds/cell, cage dimension: 1000x1200x(396),49,8mm/bird, entirely hot galvanized mesh,horizontal sliding gate, bottom mesh/rear mesh/partition mesh: 2.25mm thick, upper mesh: 2.5mm thick, front mesh/gate: 3.8mm thick
3. Nipple drinking system

1)      complete dosatron Medicator, with Filter, Valve, Water flow Meter, Tee Pipe, Jointings

2)      ball-valve Nipples & Bases, round Pipes & Jointings, 60units/line

3)      complete front reactive Pressure Controller

4)      Accessories, Inc. pipe fastener, glue, etc

1. Belt manure remove system

1) end manure drive unite

2.Manure Belt, PP material, 980mm wide, 1.2mm thick

3)Crosswise Manure Conveyor, Inc. L≈12m long horizontal conveyor

4)Control Panel, with wires

5. Mechanical On-rail Hopper Feeding System, mechanical control

1)On-rail Hopper & Driving Sys., with Limit Control, hopper: hot galvanized, 1.2mm thick

2)complete Front and end  Frameworks

3)  Lower Rail, 6000mm per ea., with connection accessories

4) Pull Rope, hemp cord material 8mm thick

6. Silo, Conveying & Feed Uploading

7. ventilation system and with cooling pad &fan

8. Control Panel
