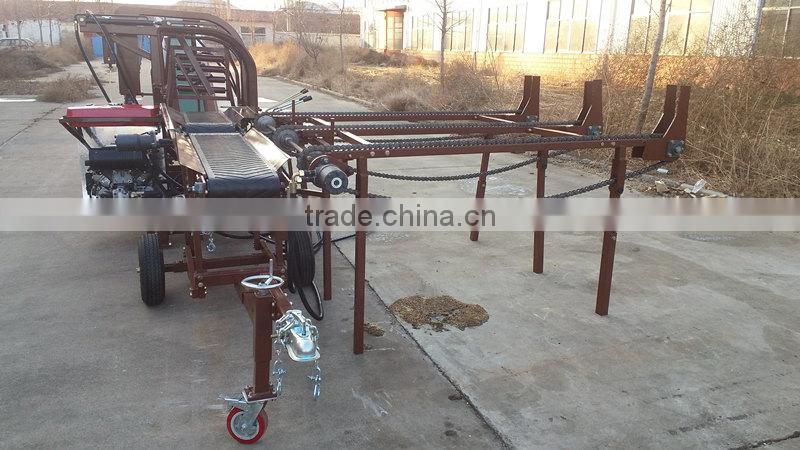

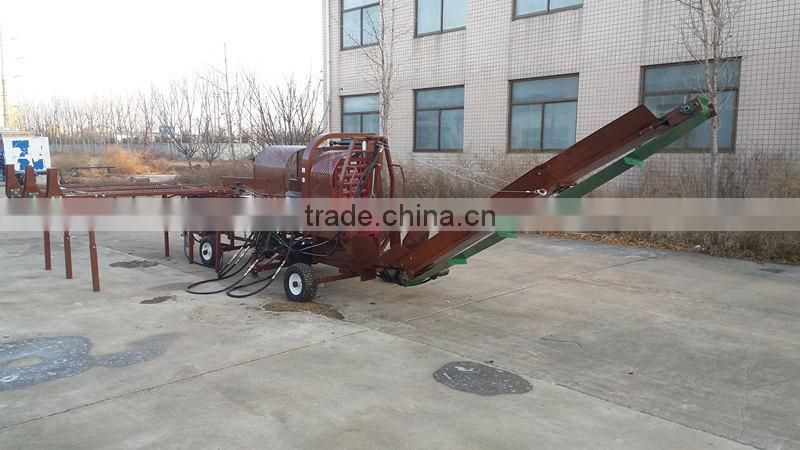

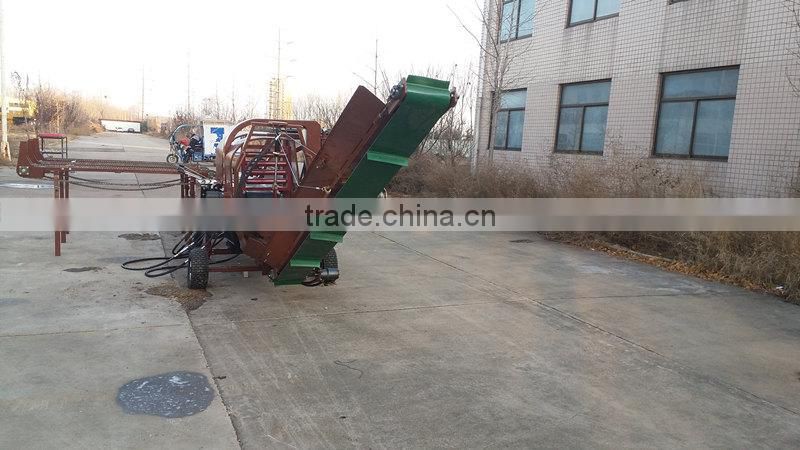

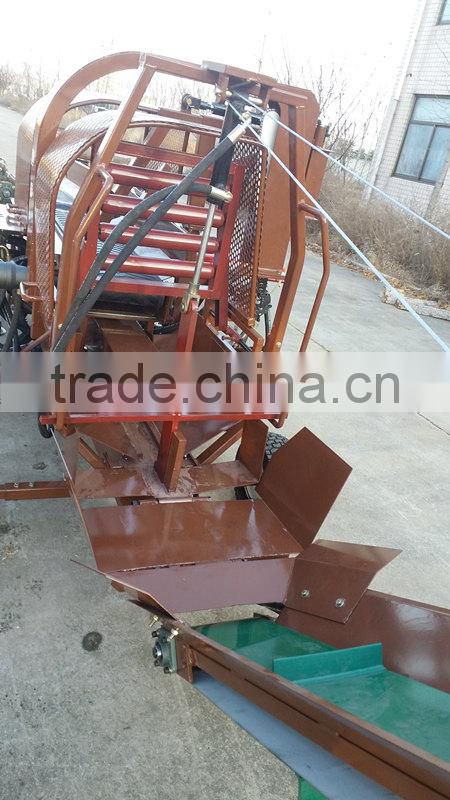

firewood processor with saw and splitting log splitter

Product description


Product Description





Product Description



 firewood processor with saw and splitting log splitterfirewood processor with saw and splitting log splitterfirewood processor with saw and splitting log splitterfirewood processor with saw and splitting log splitter







12HP DIESEL  engine

4" splitting cylinder

Adjustable splitting head, your choice of one:
4 or 6 way

Chain driven log trough for continuous log access

Hydraulic saw 18H 64cm (24") harvester bar and chain

2 Strand skidway

Safety glasses

Running lights for transporting

Firewood clean out grate

Tool box

Single Axle

Electric Brakes

Saw dust chute

Other engines available  -  call for pricing

2 strand hydraulic powered log deck

Hydraulic powered log lift/skidway

Last piece slide table

Elevator hydraulics

Operators lights

Operators seat

Plus Package includes:

24 HP engine

Up to 8-way wedge

4" splitting cylinder

Larger hydraulic pumps

Cuts logs up to 20" diameter

Larger infeed trough

Larger splitting beam

Larger Saw Bar (25")

Hydraulics for elevator





Cuts up to 14" diameter and excess of 14' lengths

Maximum splitter opening 24"

Width - Transporting - 6' 6"

Width - Operating - 8' 10"

Height - Transporting - 6' 6"

Height - Operating - 4' to top of deck

Length - 17' 6"

Weight - 3,500 lbs. Approximately

Production approximately 1+



cord per hour
(128 cublic feet cord)



Splitter cycle time - 6.5 seconds



Splits wood from 12" to 22" lengths



2-strand skidway - 5' long

Infeed log trough - 10'



Hydraulic tank capacity - 25 gallons



Fuel tank capacity - 12 gallons























Packaging & Shipping

 Iron or wooden case



MEAS: 2340x1800x1800



G.W: 720kgs



N.W:680kgs



Our Services

 Warranty: 24 months
