Automatic poultry farm equipments





1.Main feeding line



This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

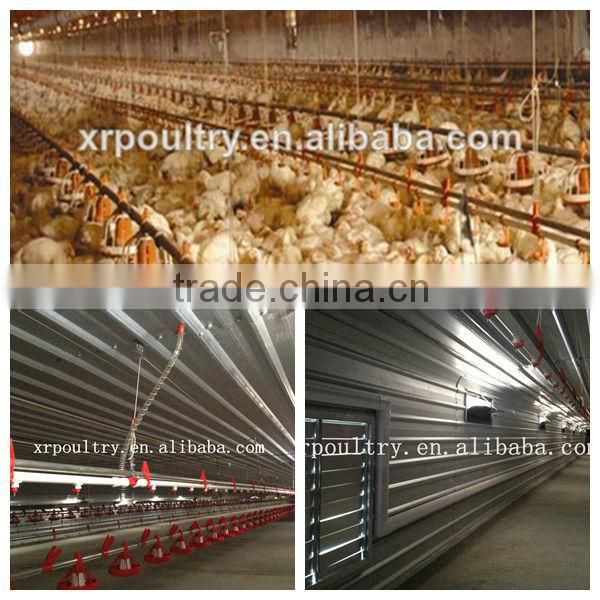

2.Broiler feed system

 This system deliver feed automatically through motor under the control of feed sensor,which



ensure birds feeding during whole growing period.

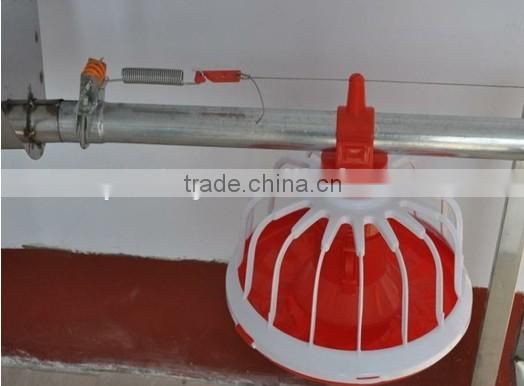

 Details of Broiler feeder pan:







Details of broiler feeding pan
No. of grilles per pan	14
No. of birds per pan could feed	40-55
Distance per grille	70mm
Density of broiler	13-18birds/M2
Max feed per pan for one bird per day	180g/bird
Dimension	330mm×330mm

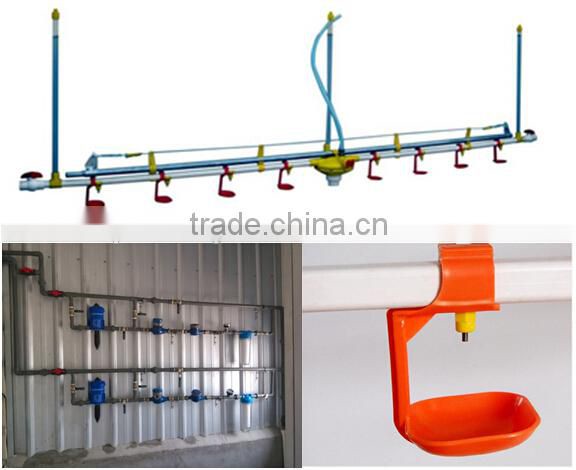

3.Niplple drinker system

 This system can provide fresh and clean water for poultry which is crucial for the growth of

 poultry.The drinkers can be triggered from 360 degree which helps young birds start well and

makes drinking easier.





Specification	12nipple/3m & 15nipple/3m
Max Work Length	150m
Nipple Drinking interval	20cm/25cm
Drinking Line interval	2.5-3.5m
Hanging Point interval	3m
No. of chicken supplied	10-12
Standard Water Quality	Clean
Shape of water pipe	Square or round
Diameter of water pipe	22mm or 25mm
Material of water pipe	PVC

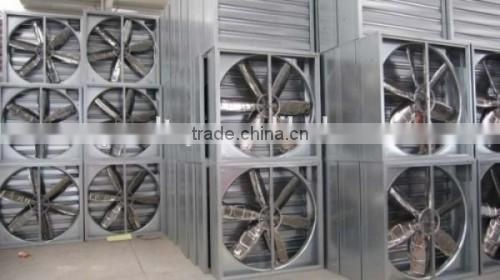

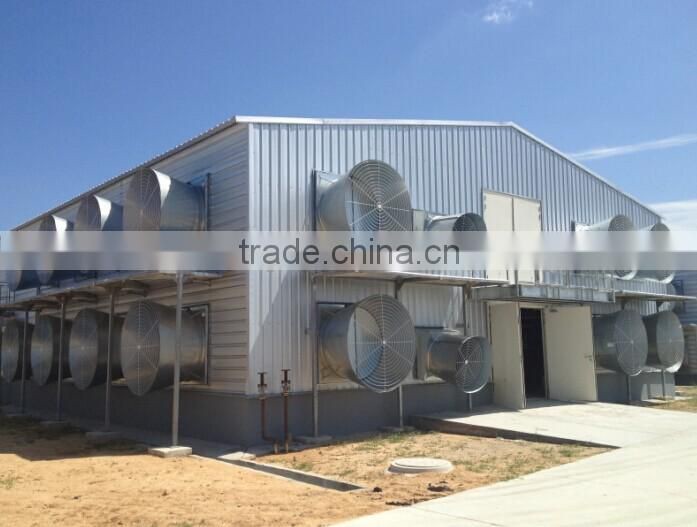

4.Ventilation system

This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it's vital for growing birds. This system include poultry house fan, air inlet window.















oling pad system

1.Thickness specification: 100mm,150mm

2.Width and Heightspecification:as requirement

3.Outer frame: galvanized sheet and aluminum alloy, rust prevention treatment

4.Aluminum alloy frame: high strength, good corrosion resistance, even water distribution, compact structure,

 beautiful and practical.

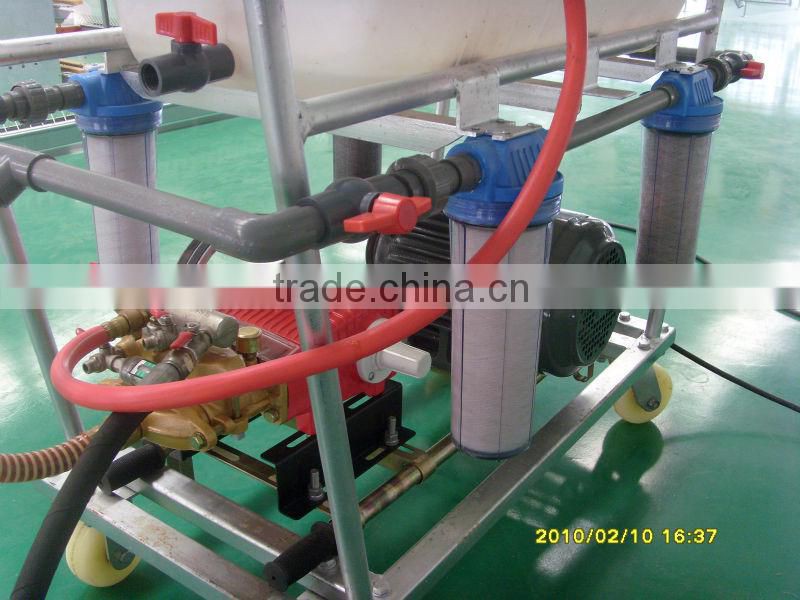

7.sparying system

 This system effectively cools,humidifies,dedusts and disinfects the henhouse.







Steel structure poultry house

The advantages of our steel structure poultry house are:

 1.Low cost.

 2.Fast construction and easy in installation.

 3.Long term service life: more than 25 years.

 4.Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.









one-stop service:

We supply the technical supportabout building and maintenance of steel structure poultry house.





We also can provide the model plan , if you tell us the information as bellow:





Factory address:

No.268,Sancheng road , Pingdu, Qingdao, China



Contract person: Kerwin Xu

Tel: +86 18560455549
