chicken farm equipment H type chicken cage
Product description
Product Description

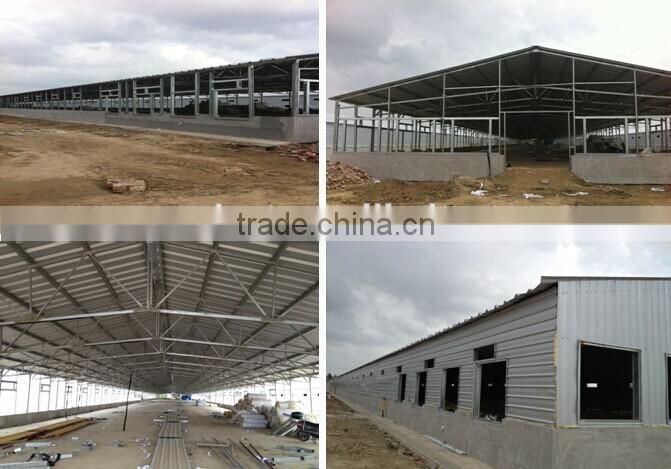

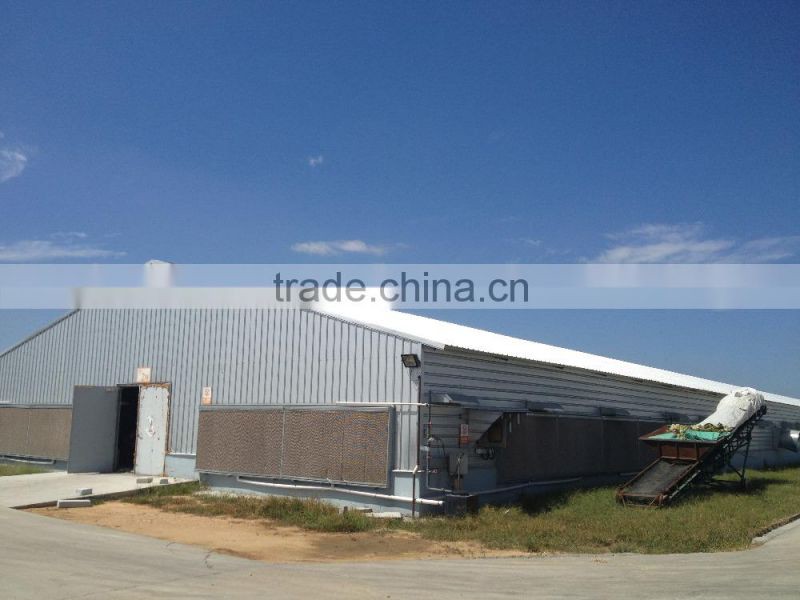

Steel Structure Chicken House
Composition:
1. Base:eConcrete and steel foundation bolts
2. Column and beam: material Q345(S355JR)or Q235(S235JR) steel, all bolts connection ,
straight cross-section or Variable cross-section
3. Bracing: X or V or other type bracing made from angle , round pipe etc.
4. Galvanized C or Z purlin: size from C100~C320,Z160~Z300
5. Roof and Wall Panel: Light gauge steel frame prefabricated house
(a) Single colorful corrugated steel sheet --Thickness:0.12-1.2mm; Width: 310-1150mm, etc.
(b) Sandwich panel with EPS, rock wool, glass wool , PU etc. insulation -- Thickness around 50mm~150mm;
Width 950mm or 960mm!
6. Accessories:
semi-transparent skylight belts, Ventilators, down pipe, out gutter etc
7. Surfrace:
Paint or hot dip galvanized
Characteristics:
1. Column: Galvanized Q235, Q345 H-section steel or square tube;
2. Beam: Galvanized Q235, Q345 H-section steel or square tube;
3. Purlin: Galvanized Q235 C-channel;
4. Vertical and transversal support: Q235 angle steel, round bar or steel pipe;
5. Tie bar: Q235 steel pipe;
6. Brace: Q235 round bar;
7. Sleeve: Q235 steel pipe;
8. Roof: Corrugated steel sheet with insulation or sandwich panel;
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

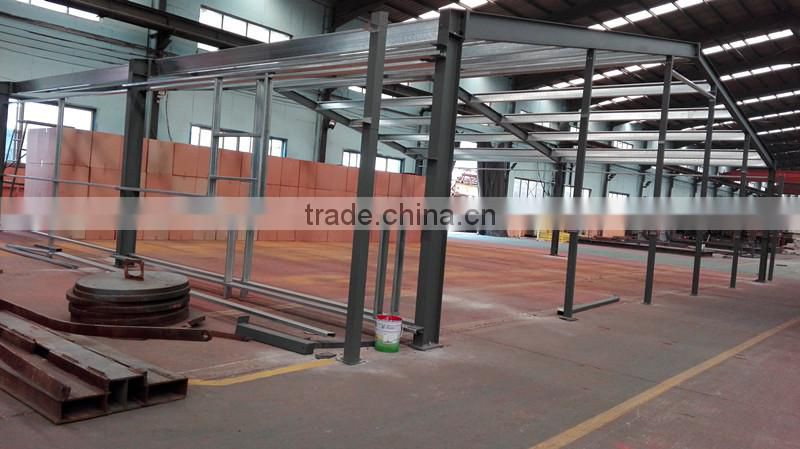

Production show:
-----------------------------------------------------------------------------------------------------------------------------------------------------

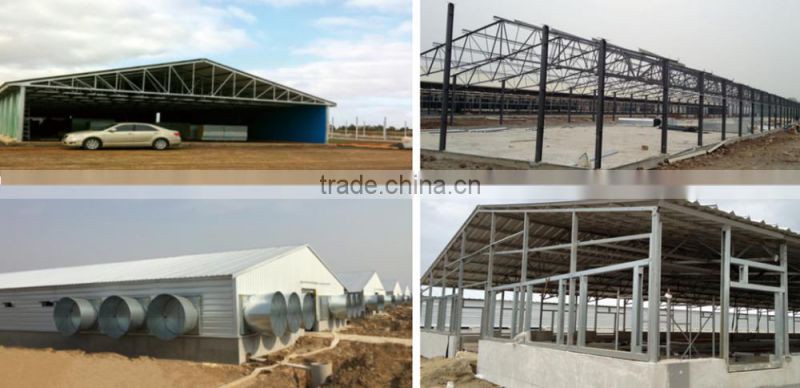

Classical projects we undertook in the past years:
Chicken shed(2800M2)—Austrilia
Industrial Workshop (13000 M2 )—Argentina
Warehouse (14000M2)---- Republic of Uzbekistan
Workshop (12000M2)----Canada
Vegetable Market(2500M2)---- Mauritius
Pig shed(3500M2)---USA
Aircraft Hangar(1300M2)------Austrilia
Prefabricated house(70M2)----800 sets---Angola
Container house(20’)-----60 sets—South Africa
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

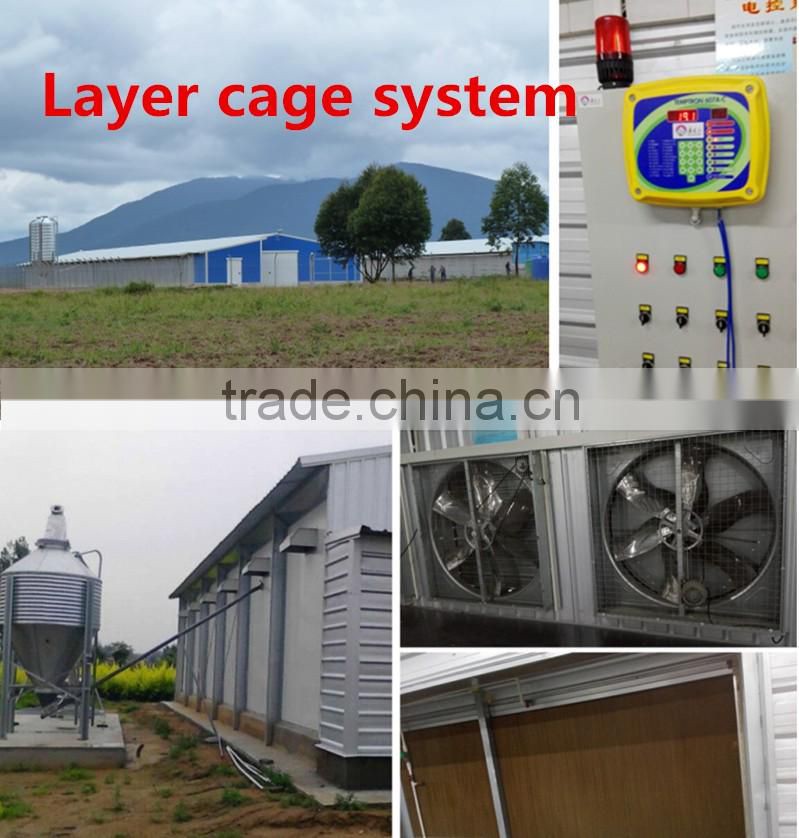

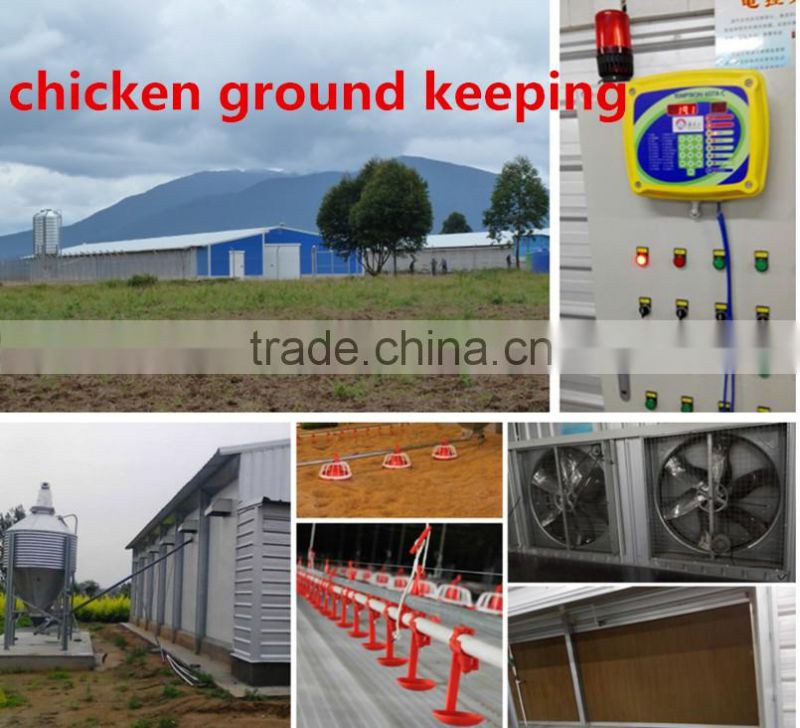

We supply the whole system for chicken farming:
1.Auto feeding and drinking system.
2.Ventilation and cooling system.
3.Chicken cage.
4.Manure cleaning system.
5.Environment control system.

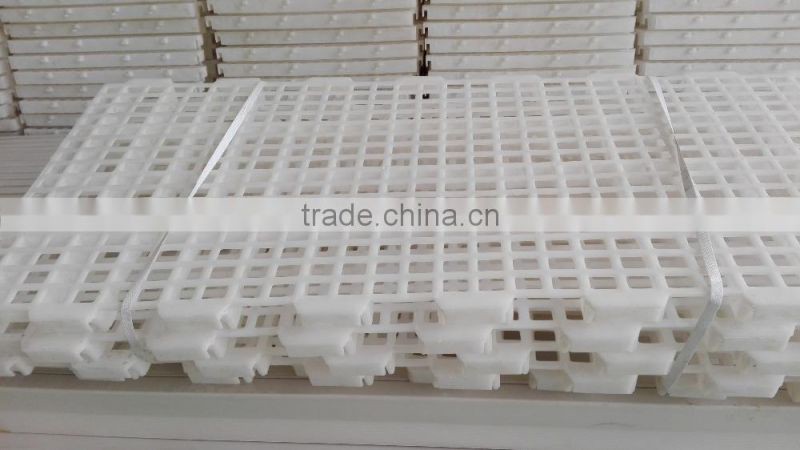

6.Plastic slat floor.
Our excellent design team will design the low cost industrial shed for you. If you give the following information, we will give you an
satisfactory drawing.
1. Location (where will be built? ): _____country, area
2.Size: Length*width*height _____mm*_____mm*_____mm
3.Wind load (max. Wind speed): _____kn/m2, _____km/h, _____m/s
4.Snow load (max. Snow height):_____kn/m2, _____mm
5. Anti-earthquake:_____level
6.Brickwall needed or not: If yes, 1.2m high or 1.5m high
7. Thermal insulation:
If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8.Door quantity & size: _____units, _____(width)mm*_____(height)mm
9.Window quanity & size: _____units, _____(width)mm*_____(height)mm
10.Crane needed or not: If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
