250kg Waste Incinerator

Specifically Designed for Medical Waste



The Medical GM range is designed as a two stage incinerator unit comprising of a primary loading chamber and a secondary after burner chamber. This afterburner system draws the hot gases from the primary chamber, this ensures a clean (and compliant) burn at temperatures of 850-1150°c.



Specifications:



Fuel Options (guide only)

Diesel, LPG, N-Gas

Electricity Supply (Volts)

210-230

Internal Chamber Dimensions -l x w x h (mm)

1000 x 670 x 655

Internal Refractory Thickness

180mm high grade refractory lining

Load Capacity

Up to 250kg

Loading Method

Top Loading

Afterburner, complies with UK Legislation

YES

CE Certified

YES

Commisioned prior to shipment

YES and Certified

Weight (approx tonnes)

2

Heat Recovery

Optional



At Addfield we manufacture various sizes of incinerators for different waste streams. If you can't find what you are looking for please contact us.

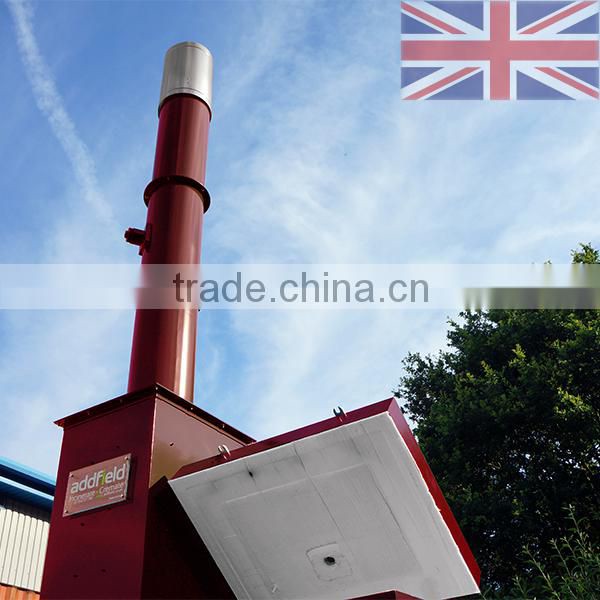

GM250 Incinerator - Made in Britain

Certification

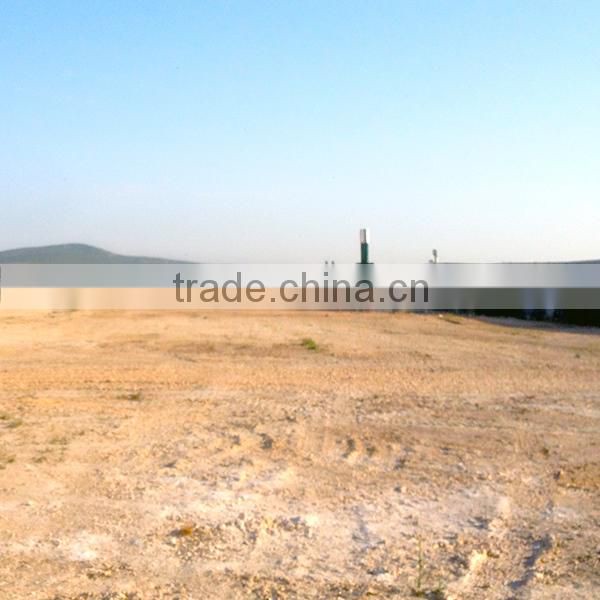

Incinerator on Site

Incinerator in Mexico

 Addfield Environmental Factory
