Barbed Wire Materials:1.Electric galvanized wire2.Hot dipped galvanized wire



Barbed wire  weave types:1) single strand barbed wire,

 2) double strand double twisted barbed wire;



 3) double strand common twisted barbed wire



Gauge of Strand and Barb in B.W.G.	Approximate Length per kilogram in Meter
	Barbs Spacing
	3''	4''	5''	6''
12x12	6.0617	6.759	7.27	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.719	8.3022	8.7221
12-1/2x14	8.1096	8.814	9.2242	9.562
13x13	7.9808	8.899	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.659	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.507
15-1/2x15-1/2	15.3491	17.1144	18.406	19.3386



Type	Wire Gauge(SWG)		Barb Distance(cm)	Barb Length(cm)
Electric Galvanized Barbed Wire;Hot-dip zinc plating barbed wire	10#x12#		7.5-15	1.5-3
	12#x12#
	12#x14#
	14#x14#
	14#x16#
	16#x16#
	16#x18#
PVC coated barbed wire;PE barbed wire	Before coating 1.0mm-3.5mm BWG11#-20# SWG11#-20#	After coating 1.4mm-4.0mm BWG8#-17# SWG8#-17#	7.5-15	1.5-3
	PVC PE coating thickness:0.4mm-0.6mm;different colors or length are available at customers request.



PVC Coated Barbed Wire

PVC coated barbed wire enjoy longer use life than galvanized barbed wire

The color is usually green color.
Core of PVC coated barbed wire can be galvanized iron wire
A variety of colors like green, blue, yellow, orange, gray

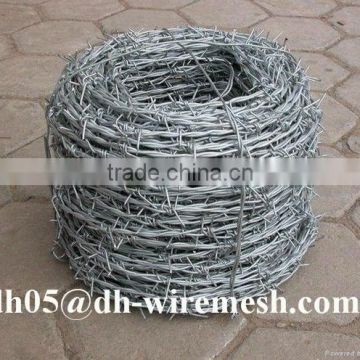

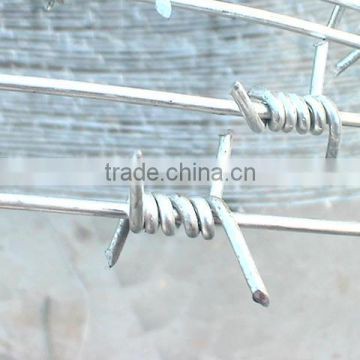

Galvanized Barbed Wire

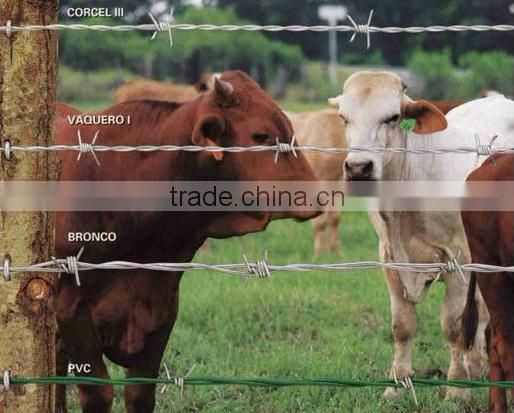

Galvanized barbed wire is used in defending of farm land, sport ground, or used together with concertina razor wire. Normally it's settled above the fence, for example chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a barbed wire wall with wooden sticks or iron sticks. The weaving methods are one main wire, one barbed wire; one main wire, twin barbed wire; and twin main wire, twin barbed wire.
