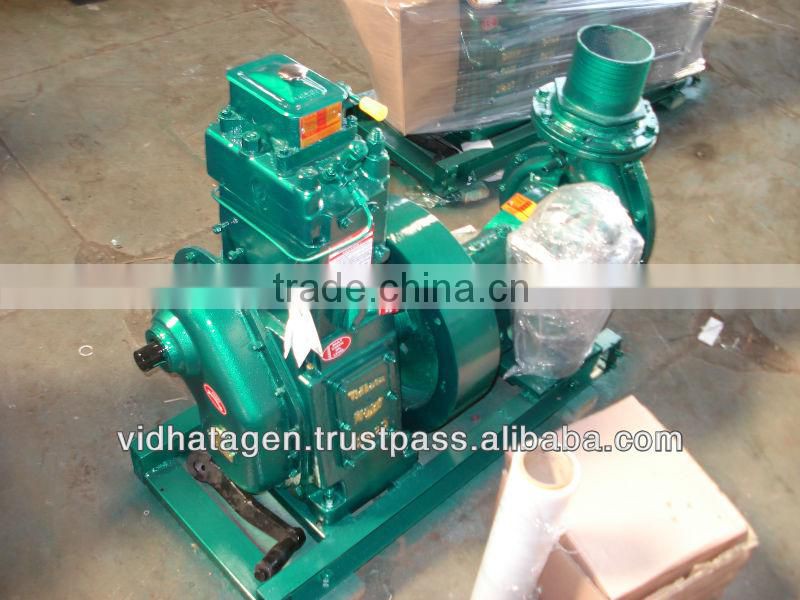

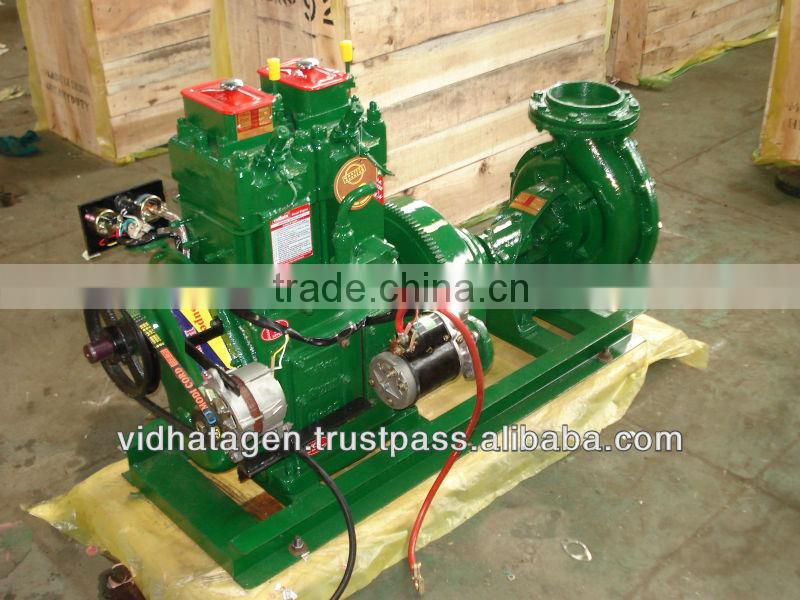

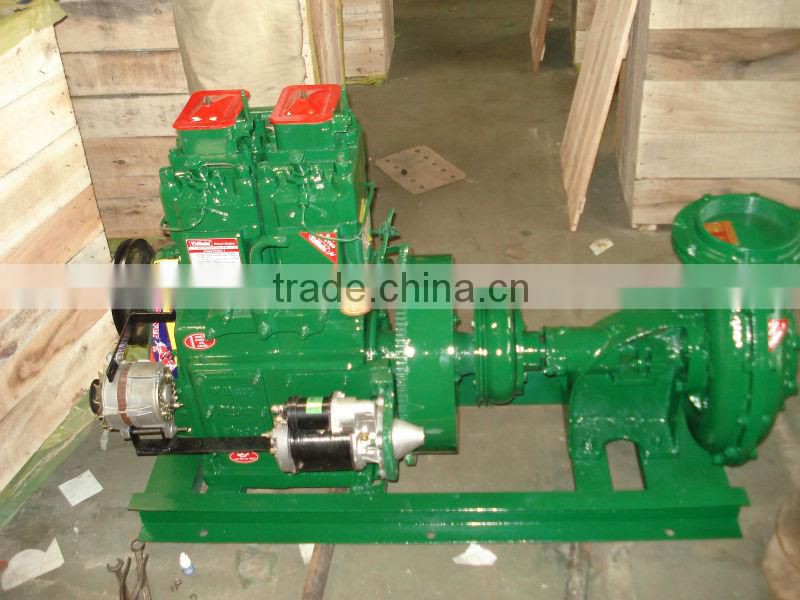

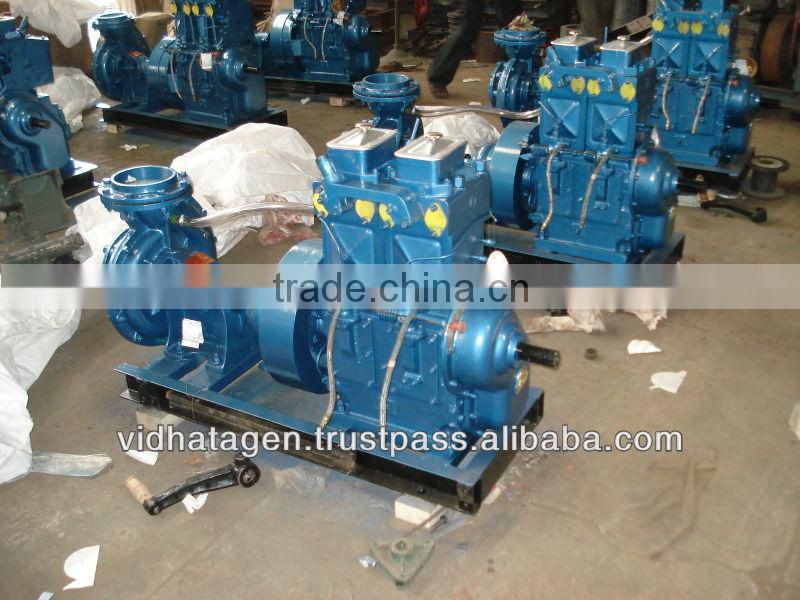

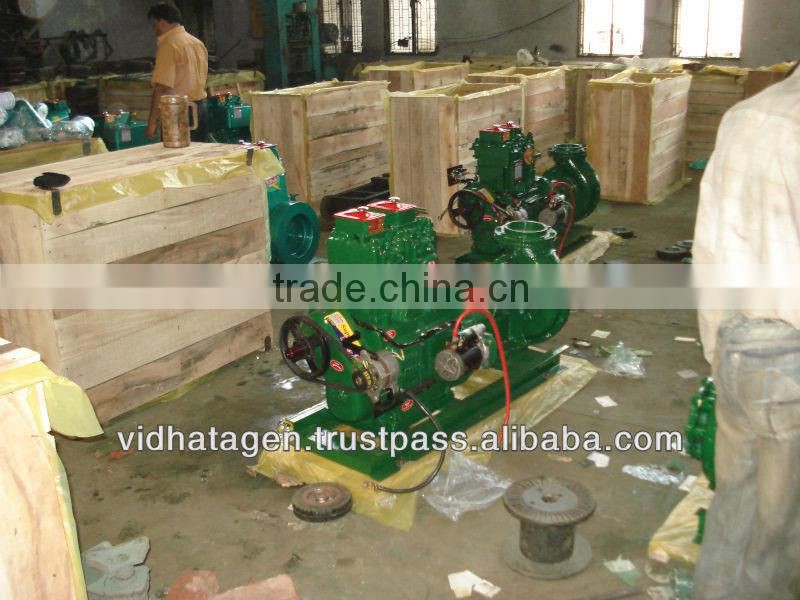

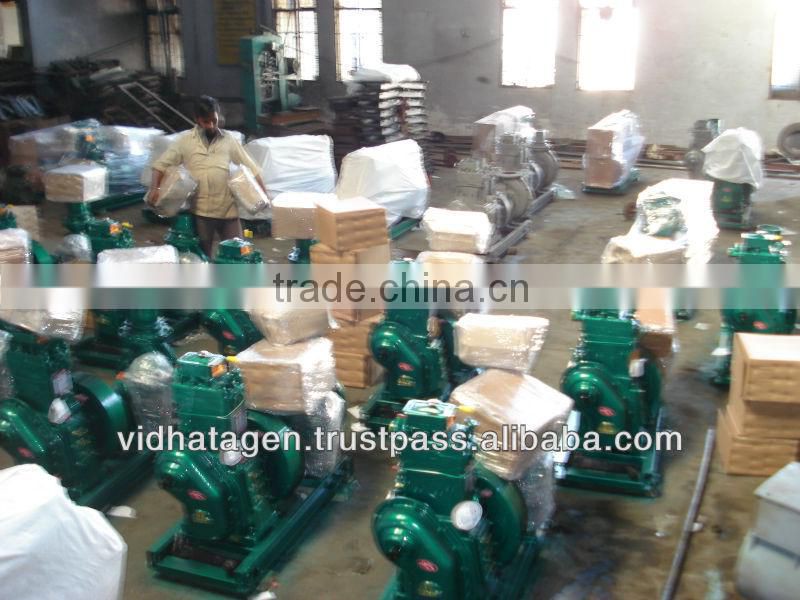

Diesel engine water pump set
Product description
Product Description
Specifications
1 DIESEL ENGINE DRIVEN WATER PUMPSET FOR LIFT WATER FROM WELL, RIVER, POND, IRRIGATION,
2 DEWATERING SIZE PRESSURE 150 PSI
(DIESEL OPERATED, WITH PETTER/LISTER INDIAN STYLE ENGINE)
PRIVATE | Engine | NO OF | PUMP | HEAD RANGE | DISCHARGE | GROSS | COUPLE SET | PACKING |
4.5 | 1500 | 1 | 65x50 | 10 to 13 | 16 to 10 | 125 | 220 | 96x58x81 |
5.0 | 1500 | 1 | 80x65 | 11 to 16 | 22 to 14 | 202 | 314 | 104x64x96 |
6.5 | 1500 | 1 | 80x65 | 9 to 20 | 26 to 15 | 210 | 322 | 104x64x96 |
7.5 | 1500 | 1 | 100x80 | 9 to 15 | 31 to 14 | 230 | 342 | 104x64x96 |
8.0 | 1500 | 1 | 100x100 | 9 to 16 | 32 to 14 | 210 | 322 | 104x64x96 |
10.0 | 1500 | 1 | 125x125 | 7 to 17 | 52 to 29 | 275 | 385 | 115x64x100 |
6.5 | 1500 | 1 | 125x125 | 9 to 9 | 36 to 20 | 275 | 385 | 115x64x100 |
8.0 | 1500 | 1 | 150x150 | 6 to 19 | 37 to 22 | 275 | 380 | 115x64x100 |
20.0 | 1500 | 2 | 100x125 | 14 to 20 | 100 to 180m3/hr | 380 | 495 | 130x64x100 |
28 | 1500 | 2 | 150x150 | 6-10 | 100L/S | 390 | 500 | 130x64x100 |
30 | 1500 | 2 | 200x200 | 5-6 | 150L/S | 550 | 750 | 140x70x120 |
28.0 | 1500 | 2 | 100x125 | 22 to 20 | 140 to 210m3/hr | 390 | 495 | 130x64x100 |
28 | 1500 | 2 | 80x80 | 40 | 50m3/h | 420 | 520 | 130x64x100 |
10 | 1500 | 1 | 80x80 | 26 to 35 | 23 to 6 L/S | 290 | 395 | 115x64x100 |
STANDARD PARTS
Air Cleaner, Silencer, Wrench Set, Screw Driver, Starting Handle, One Bag, Oil Can , Instruction Manual.
APPLICATION
These Pump Sets can be used in Agriculture ,Irrigation, Mining, Forestry Culture, Fishing and other purposes.
ADDITIONAL PRODUCT INFORMATION
| User Application Sector | Power, Construction and Earthmoving, Agriculture, Industry |
| User Sub Sector | Power generation, Infrastructure, Large community irrigation schemes, Farm irrigation, Harvesting, Food processing |
| Industry Sector | Diesel power, Construction Equipments, Aquaculture |
| Application Areas | Prime movers, Prime Mover, Pumping systems, Flood irrigation, Agricultural implements, Fluid handling |
WE CAN ALSO PROVIDE DIESEL ENGINES WITH MUD PUMPS & SELF PRIMING PUMPS AS PER REQUIREMENTS
MUD PUMPSET, SELF PRIMING TYPE
