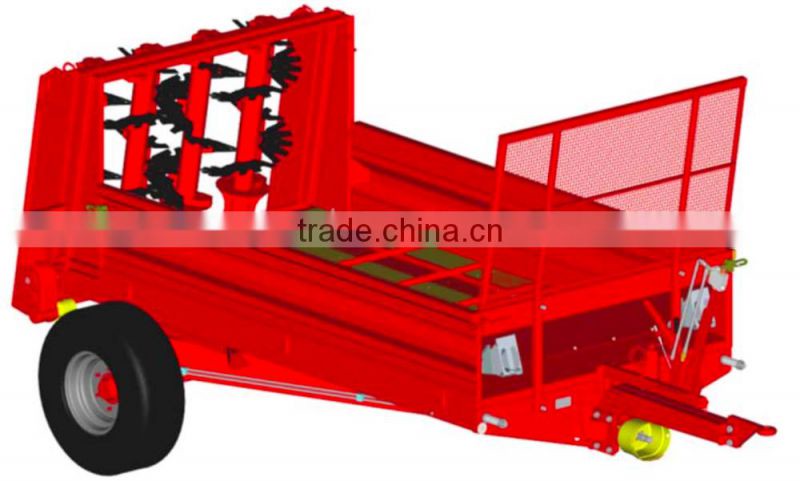

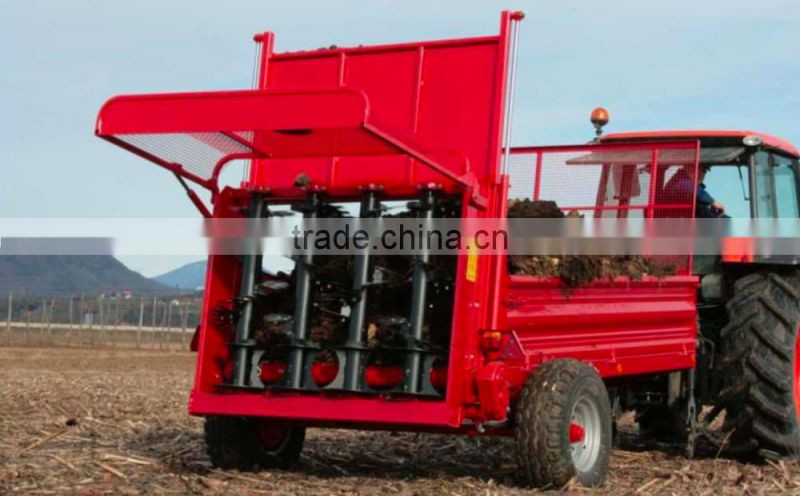

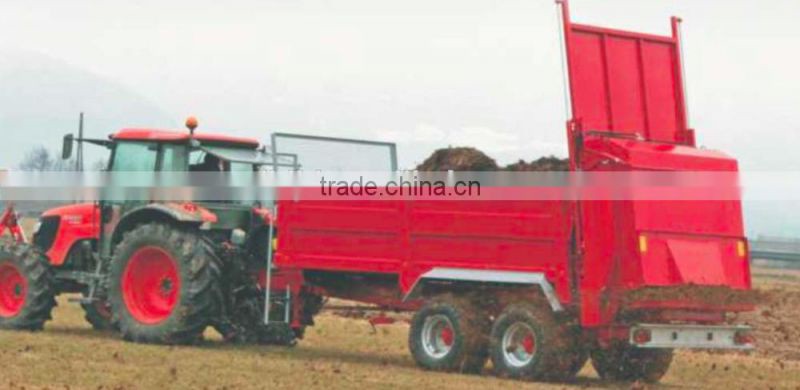

Manure Spreader



Applications

2F series manure spreaders are suitable for spreading organic fertilizer, compost fertilizer and animal manure. The manure spreaders are convenient to operate, efficient, sturdy and durable. 2F series manure spreaders are perfect implements for spreading livestock and poultry manure, preventing pollution, and fertilizing soil.



Features

lSpreading unit made of 4 axles vertical screws, spreading evenly, no blocking, spreading width of 6 to 8 meters.

lSpreading unit made from wear-resisting alloy steel, sturdy and durable, with long service life.

lHigh efficacy. Model 2F50 can fertilize more than 2 hectares per hour.

lSpeed control valve made in Italy is applied to adjust the speed of conveyor, which can regular fertilizing amount.

lThickened nylon lining board is mounted on the baseboard, which is anti-corrosive and wear resistant, free from sticking material, with long service life.

lWide tires with larger bearing area, gives lower ground pressure, with wide adaptability.

lChassis made from coldly bending steel plate, with high strength and light weight, bring lower pressure to soil.

lV- Frame supports the chassis from wheel axle, with sturdy and reliable structure.

lPneumatic or inertia brakes with high reliability, convenient and safe.

lDischarge hope, driven by hydraulic cylinder, can be controlled in the driving cab, conveniently and safely.



Specifications

Model	Gross weight (kg)	Load capacity (kg)	Weight of spreader (kg)	Max. length of spreader (m)	Max. width of spreader (m)	Max. height of spreader (m)	Height of sides (m)	Loading Surface (m)	Loading volume (m3)	Required minimum power (kW)	Distance between wheels (m)
2F50	6000	4470	1530	5.5	2	2.65	0.5	3.7x1.7	5	30	1600
2F80	8000	5300	2700	6.72	2.2	2.69	0.6	4.6x1.9	8	50	1700
2F100	10000	7000	3000	6.72	2.2	2.69	1.1	4.6x1.9	10	59	1700

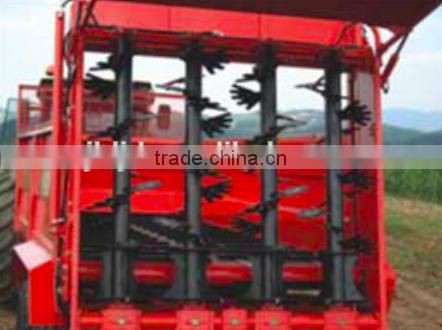

Spreading Unit

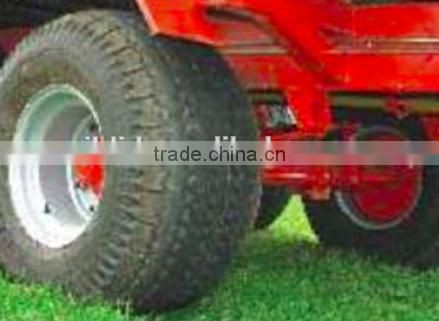

Wide Tires

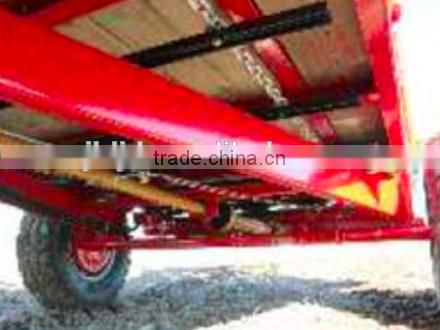

V Frame for Chassis

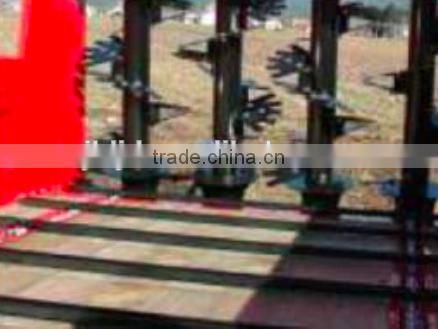

Nylon Lining Board

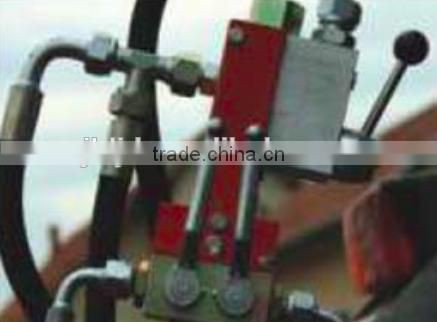

Speed Control Value
