Specifications

Candle Making Machine

1.Type A, Type B, Type C

2. Different size of candle

3. With water cooling system

Manual Candles machine HRX-W







HRX-W Serial Molding Candle Machines include Type A, Type B & Type C , 3types of candle machines of different specifications, You can get more information form below sheet.

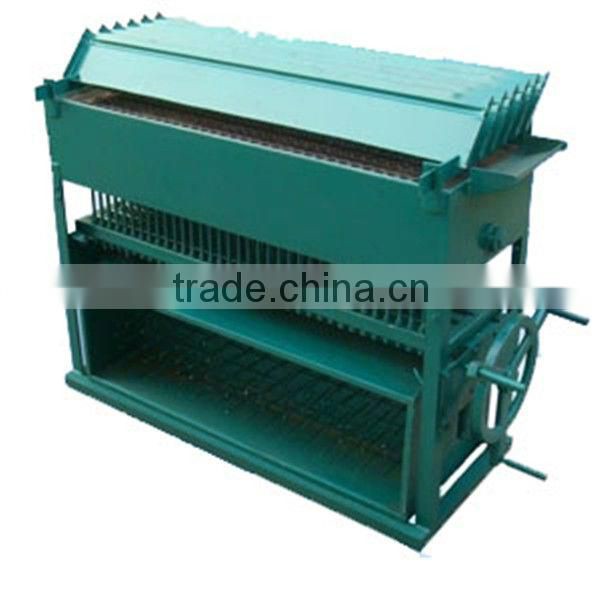

Type A: Manual Candle Machine. A type of lighting candles machine for two rows of candles pipe, the mold candles were placed on both sides of the platen, simple structure, easy to operate, skilled workers can operate up to eight candle machines per person. The wax mold tubes are made of seamless stainless steel tube through the stretch forming, fine polishing materials, high precision mold, good finish, durable.

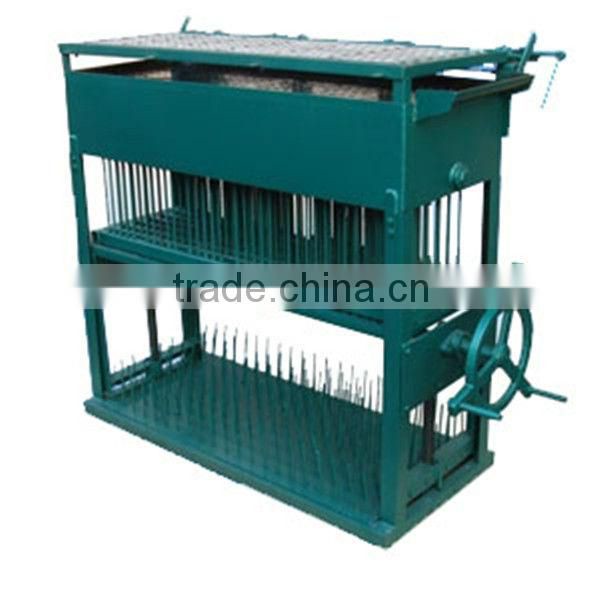

Type B: Manual Candle Machine . B type of lighting candle machine with six to eight rows of wax mold tubes, the mold candles placed on the tray, high capacity, high efficiency, easy to operate, skilled workers can operate four machines per person. The machine mold tube are made of seamless stainless steel tube through the stretch forming, polishing refined, has the best surface finish, corrosion resistance, fast cooling, closed good features.

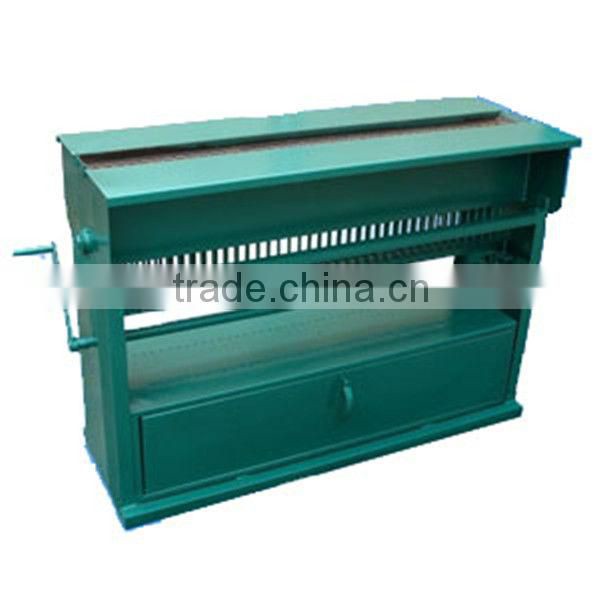

Type C: Semi-Automatic Candle Machine. C type of lighting candles machine for six to eight rows of tube wax mold, the wax clamped by aluminum rod, Candle in the clamp unit, wick hanging in the middle of the wax mold tube, saving labor, high capacity, high efficiency, skilled workers and operated six machines per person. The machine mold tubes are made of seamless stainless steel tube through the stretch forming, polishing refined, has the best surface finish, corrosion-resistant, fast cooling, closed good characteristics





Type	Model	Candle Size (big dia×small dia × height)	Candle Weight(g)	Capacity/each time	Number of Times/Hour	Output(kg)/Hour	Candel size(mm)	Packing Size(mm)	Candle Machine Net Weight(kg)	CBM/20FCL
lighting the candle machine	HRX-W-19A	φ13.5×φ12×170	19	80	6	9	140×50×85	145×55×100	80	32
	HRX-W-19B	φ13.5×φ12×170	19	240	6	27	140×50×90	145×55×115	175	32
	HRX-W-19C	φ13.5×φ12×170	19	240	6	27	140×65×110	145×60×115	200	26
	HRX-W-25A	φ14.5×φ12.5×203	25	80	5	10	140×50×85	145×55×100	80	32
	HRX-W-25B	φ14.5×φ12.5×203	25	240	5	30	140×50×90	145×55×115	180	32
	HRX-W-25C	φ14.5×φ12.5×203	25	240	5	30	140×65×110	145×60×115	200	26
	HRX-W-28A	φ15×φ13.8×203	28	80	5	11	140×50×85	145×55×100	80	32
	HRX-W-28B	φ15×φ13.8×203	28	240	5	33	140×50×90	145×55×115	185	32
	HRX-W-28C	φ15×φ13.8×203	28	240	5	33	140×65×110	145×60×115	200	26
	HRX-W-35A	φ17×φ15×203	35	80	4	11	140×50×85	145×55×100	85	32
	HRX-W-35B	φ17×φ15×203	35	240	4	33	140×50×90	145×55×115	185	32
	HRX-W-35C	φ17×φ15×203	35	210	4	29	140×65×110	145×60×115	200	26
	HRX-W-50A	φ20×φ18×210	50	70	3	10	140×55×90	145×58×105	85	32
	HRX-W-50B	φ20×φ18×210	50	210	3	31	140×50×90	145×55×115	190	32
	HRX-W-50C	φ20×φ18×210	50	180	3	27	140×65×110	145×60×115	200	26
	HRX-W-66A	φ22×φ20×220	66	60	3	12	140×55×90	145×58×105	85	32
	HRX-W-66B	φ22×φ20×220	66	180	3	36	140×50×90	145×55×115	190	32
	HRX-W-80A	φ23×φ21.5×240	80	60	3	14	140×55×90	145×58×105	85	32
	HRX-W-80B	φ23×φ21.5×240	80	180	3	43	140×52×90	145×58×115	200	32

 Packing

About us :
--as a member of HRX Group, was established in 1992.
--head-quarter in Beijing, branch office in hongkong and Australia.
-- Managed by a trustworthy and professional team with experience of 30 years;
-- Own Concept: "sincere", "Persistent", "Practical" "Innovative";
-- 7 years' cooperation experiences with Alibaba.

Guarantees:
We ensure that we can provide you with timely shipment, best possible service, responsible and customized

packing, and guarantee that the goods arrive clean, neat and tidy, arrive to your satisfaction.


Welcome to our company. We hoping to cooperate with you and establish business relations worldwide.
