About us:

Chongqing Haodong Technology Co,. LTD is the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater.



Product introduction :



Ceramic plate Heater/ Infrared Gas burner heating equipment (HD242)





*industrial ceramic series infrared catalytic gas burner



Specification

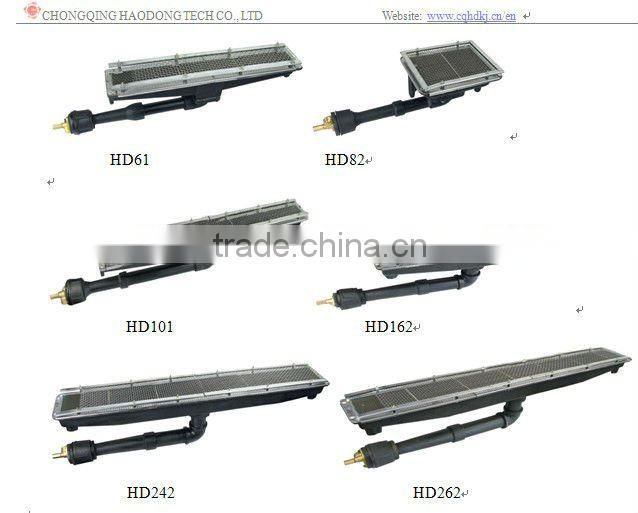

MODEL	Dimension	Weight	Gas Type	Heat Output		Consumption
	mm	kg		KW/h	Kcal/hr	NG(m3/h)	LPG(kg/h)
HD61	423*80*94	3.8	NG/LPG	2.4	2030	0.18	0.18
HD82	219*164*108	4.8	NG/LPG	3.1	2700	0.24	0.24
HD101	690*80*115	6.9	NG/LPG	3.9	3380	0.3	0.29
HD162	570*130*175	8	NG/LPG	6.3	5400	0.49	0.47
HD242	840*130*175	11.7	NG/LPG	9.4	8120	0.75	0.71
HD262	930*130*175	13	NG/LPG	10.9	9360	0.8	0.82











Material:

Shell:gray cast iron
Upper cover:stamped  stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated

Technical parameters:

Items	Technical parameters
Types	natural gas (NG),liquefied petroleum gas (LPG)
Light-off temperature	≥350
complete combustion temperature	≤380
Heat source temperature	around 850
Baking temperature range	30---850
Wavelength range	1.9m--15m
Furnance pressure natural	Gas 150mmAq;liquefied petroleum gas 280mmAq

Advantages:

1. Energy saving: conversion rate:≥90%

2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm

3. Whole combustion: 95% of energy released in the form of infrared ray ;heating the objects directly

4. Long life:≥11000hr

5. Easily installed

6. Flameless & smokeless

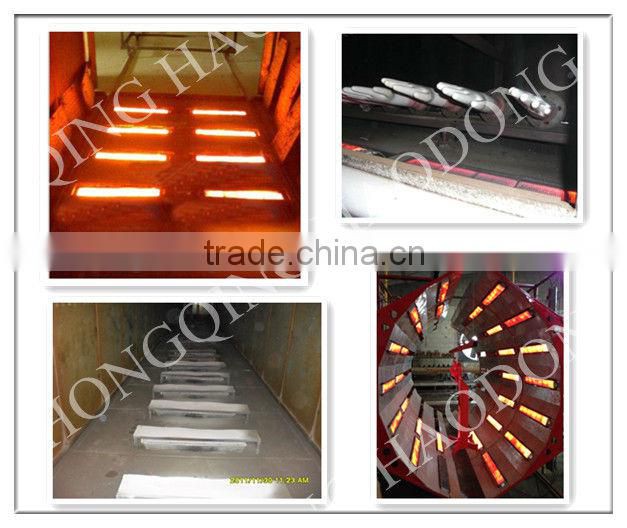

Application

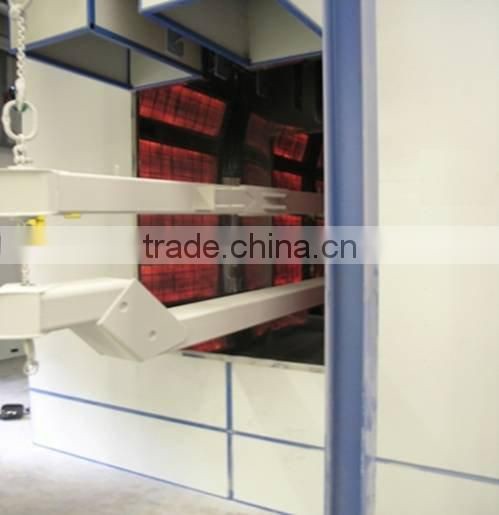

1. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.

2. The food industry: drying for processed food such as  cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.

3. Agriculture and animal husbandry:  keeping warm for a variety of birds, the livestock shed;grain drying.

4. Food and beverage industry: all kinds of barbecue, fruit and vegetable dehydration.

5. Drying operation in printing and dyeing, paper, wood, carpet and other industries

6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.

7.  Heating ,warming and insulation for commercial buildings and  workshop





Factory & Packing Photoes:
