Zipper bag Making Machine with Attachment





Performance and Characteristics



1. This machine uses fully automatic servo motor with computer digital
function to control length, it is easy for operation.

2. Flow process of production is from rolled material through automatic
edge alignment, edge trimming, strip piercing, laminating, ultrasonic

compressive embossing, photo cell sensing, hole punching, thermo cutting off
and ends with automatic counting,all of the operations are fully automatic.

3.This machine equips automatic stop equipment, it will stop working when there is no material, when temperature is below the minimum temperature required.







Main Technical Parameters



Model	JD-500	JD-760
Production	30-120(pcs/min)	30-120(pcs/min)
Maximun width	480mm(Bag L)	755mm((Bag L)
Minimum width	50 mm	50 mm
Maximum length	800 mm(Bag W )	1250 mm(Bag W)
Sealing and cutting thickness	0.015-0.20 mm	0.015-0.20 mm
Width of Roll	500 mm	760 mm
Main motor	1HP	1HP
Servo motor	1.5KW	1.5KW
Total power	7KW	8KW
Voltage	380V/220V	380V/220V

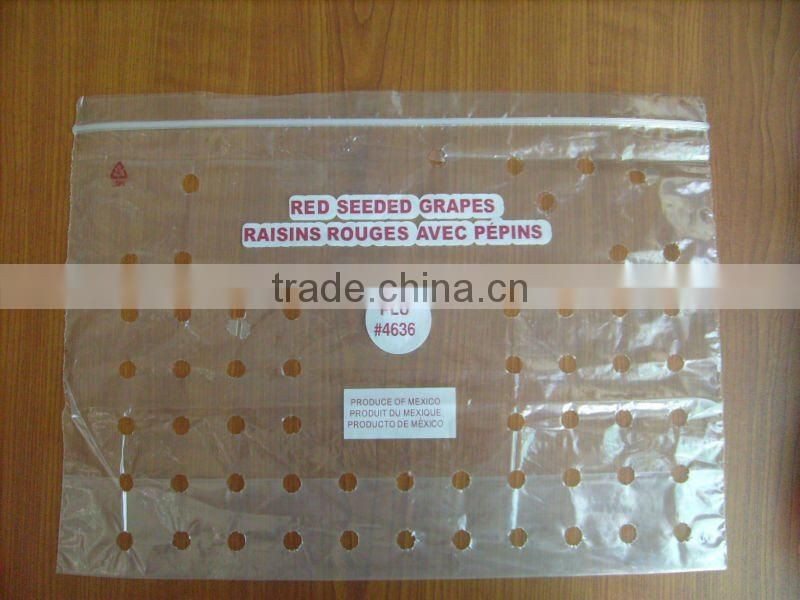

Finished Products produced by this machine:
