middle pressure dental suction aeration compressor

Product description


Product Description




middle pressure dental suction aeration compressor

1.IP55 Insulations class F

2.Bearing continuously works 130000 hours without maintenance 12-moth warranty

3.Famous Brand:GZLing (OEM Allowed)

4.Certificates:CE,UL,RoHS,CCC

5.German technology

6.EX-stock

7.Production name:middle pressure dental suction aeration compressor

Product Description

Item NO.

Stage

(S/D/3)

Frequency

(HZ)

Power

(KW)

Voltage

(V)

Current

(A)

Air Flow

(m³/h)

Vacuum

(mbar)

Pressure

(mbar)

Sound

dB(A)

Weight

(KG)

XGB-2200A

Double

50

3

200-240/

345-415Y

12.5/7.2Y

230

-340

410

72

39

60

3.45

220-275/

380-480Y

12.5/7.3Y

275

-380

360

74

Features:
1. Beautiful surface
2. Easy installation
3. Low noise level
4. No vibration, and therefore complete dynamic stability
5. Pulsation-free discharge
6. Minimal maintenance
7. Higher pressure ratio
8. Cooler running bearings
9. Longer grease life
10. Simple maintenance
11. 100%oil-free air
12. Suitable for environmental protection
13. Small dimensions
14 continuous duty

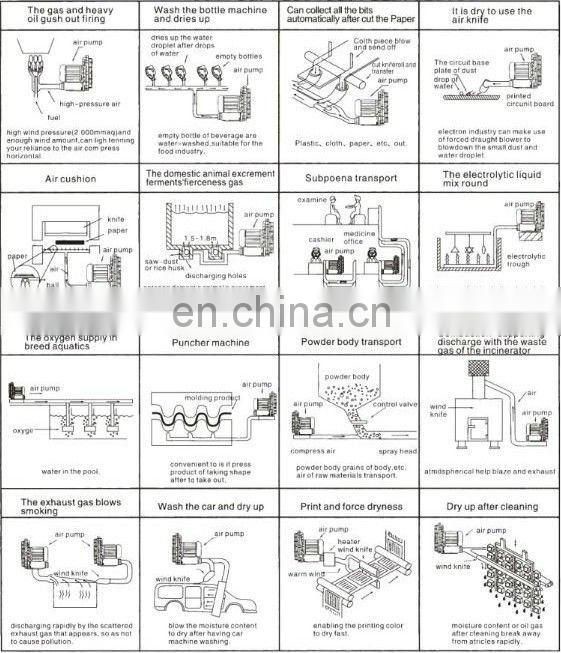

Applications:

 1.Pneumatic conveying systems

 2.Lifting and holding of parts by vacuum

 3.Packing machines

 4.Aeration of sewage-treatment plants

 5.Filling of bags/bottles/hoppers

 6.Soil remediation

 7.Thermoforming

 8.Sorting/enveloping of letters

 9.Food-processing

10.Laser printers

11.Dental suction equipments

12.Paper processing

13.Printers/copiers

14.Textile machines

15.Aeration of fish ponds

16.Gas analysis

17.Swimming pool equipment/whirlpools

middle pressure dental suction aeration compressormiddle pressure dental suction aeration compressor

 Performance curve:

middle pressure dental suction aeration compressor

Size:

middle pressure dental suction aeration compressor

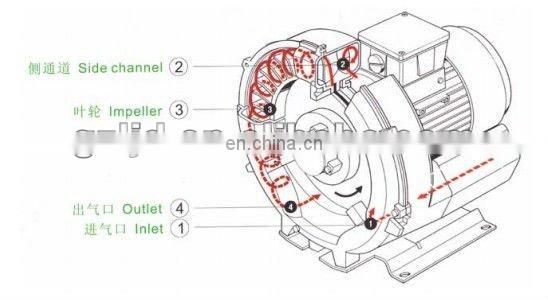

G-series operating principle

The impellers in the G-series machines are mounted directly on the motor shaft for noncontact compression entirly without friction.Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.

The gas it taken in through the inlet 1 .As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Everyrotation adds kinetic energy.resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and dis-charging it through the outlet silencer 4 where it exits the side channel blower.





Composion:

middle pressure dental suction aeration compressor

Certification:

middle pressure dental suction aeration compressor

Factory:middle pressure dental suction aeration compressormiddle pressure dental suction aeration compressor
