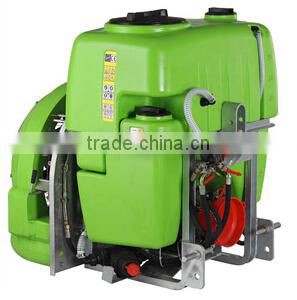

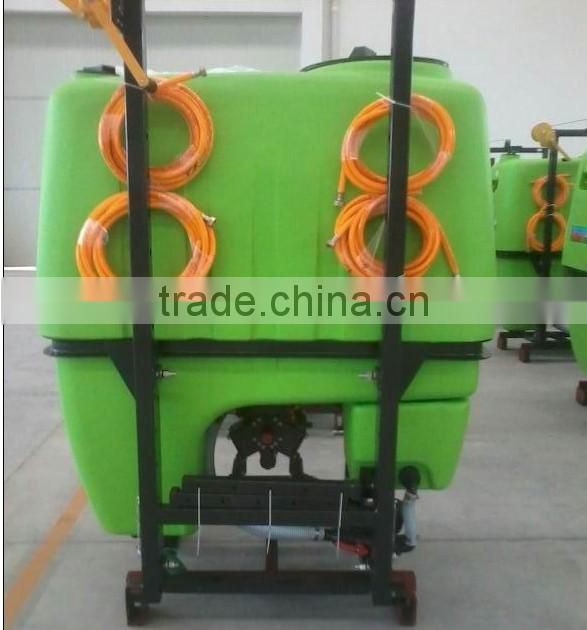

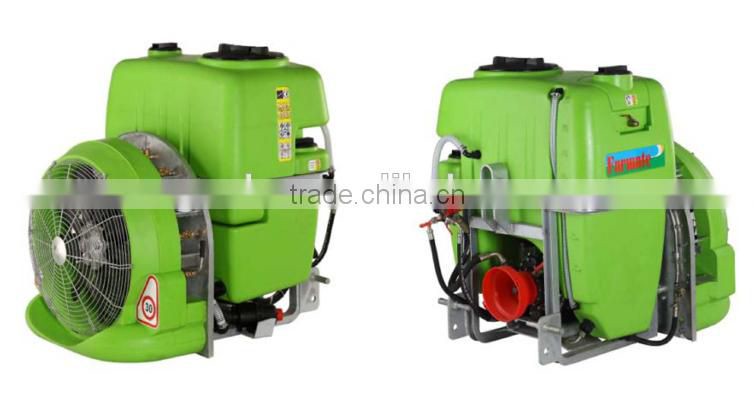

Air mist orchard sprayer, fan mist blower FDX7-340
Product description
Features:
Diaphragm pump
Anti-drip brass double nozzle
Hand-washing tank (capacity 15L)
Circuit-rinsing tank (capacity 80L)
Outside transparent level gauge
Suction filter with check-valve.
Hydraulic liquid stirrer
Control unit with pressure regulator
Clutch for ventilation fan gear box
Hot galvanized frame.
Air blast sprayer, orchard sprayer, orchard mist blower FXD7-340:
Model | FXD7-340 |
---|---|
Power | ≥ 35Hp |
Chemical tank capacity | 300L |
Circuit rinsing tank capacity | 40L |
Hand washing tank | 10L |
Radius range | >5M |
Nozzle numbers | 10Pcs |
Pump flowrate | 80L/min |
Working pressure | 0-5Mpa |
Dimension | 130x100x127cm |
Net weight | 190kg |
Air blast sprayer, orchard sprayer, orchard mist blower7-680:
Model | FXD7/680 |
---|---|
Power | ≥ 50Hp |
Chemical tank capacity | 600L |
Circuit rinsing tank capacity | 80L |
Hand washing tank | 15L |
Radius range | >5M |
Nozzle numbers | 10Pcs |
Pump flowrate | 80L/min |
Working pressure | 0-5Mpa |
Dimension | 151.5x136x136cm |
Net weight | 280kg |
Air blast sprayer, orchard sprayer, orchard mist blower FXD7-880:
Model | FXD7/880 |
---|---|
Power | ≥ 75Hp |
Chemical tank capacity | 800L |
Circuit rinsing tank capacity | 80L |
Hand washing tank | 15L |
Radius range | >5M |
Nozzle numbers | 10Pcs |
Pump flowrate | 80L/min |
Working pressure | 0-5Mpa |
Dimension | 151.5x136x160cm |
Net weight | 288kg |
