Product Description

China best quality farming machinery soybean oil press machine with CE approved

Introduction of oil press machine :

1. The soybean oil press machine squeezes the oil out from the fat by using external forces. It can be divided into screw type oil press and hydraulic oil press.The screw oil press machine can be divided into hot press and cold press.

2. The soybean oil press machine is used in soybean, peanut, rapeseed, cottonseed, sunflower seeds, palm nuts, linseed, tea seed, corn embryo, rice bran, oil seeds, etc.

D-100 Features of soybean oil press machine

4-step pressing, oil plants can be squeezed dry only by one time when using hot pressing.

Equipped with big deceleration box to ensure stable running.Lengthened cage, the squeezing power is extremely

D-100 soybean oil press machine suit for
Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds

and palm kernel, etc.

Medium and small oil refinery, oil mill and private oil squeezing workshop.

erforms well both in cold pressing and hot pressing

The operation of the oil press machine

1.When oil press is on work, material enters the extruding chamber from the hopper

and then moves forwards by the rotating pressing screw and is pressed.

2.Under high temperature condition in the chamber,

there is quite strong friction among press screw, chamber and the oil materials.

3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4.Hence when rotating, the thread not only pushes particles moving forwards

but also turns them outwards as well.

5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating,

causing every particle inside the chamber to possess different speed.

6.Therefore, relative movement among particles creates neatwhich is necessary during manufacturing

because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity,resulting

in high oil.

Technical parameters:

Type	Parameter	Output (kg/h)	Power (Kw)	Dimension (mm)	Weight (Kg)
D-30	Pressure:60-100t; Dia. :300mm;	12	manual	400×300×700	100
D-53	Screw shaft Dia.:53mm; Speed :70-80r/min; Inscribed circle Dia.:55mm	50-80	1.5	1020×720×798	300
D-60	Screw shaft Dia.:60mm; Speed :70-80r/min; Inscribed circle Dia.:62mm	80-100	2.2	1300×1050×1650	630
D-80	Screw shaft Dia.:80mm; Speed :60-90r/min; Inscribed circle Dia.:82mm	150-200	5.5	1500×1200×1700	780
D-100	Screw shaft Dia.:100mm; Speed :40-60r/min; Inscribed circle Dia.:102mm	200-300	7.5	2000×1210×1700	1000
D-120	Screw shaft Dia.:120mm; Speed :36-40r/min; Inscribed circle Dia.:122mm	300-400	11	2500×1310×1750	1500

More details:

For more detailed information, pls contact with me .

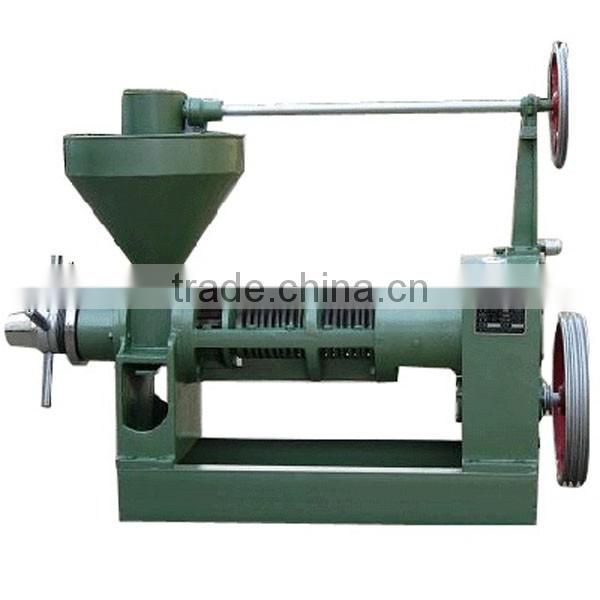

Model	6YL-80 Screw-type Oil Press Machine
Suitability	Various
Power	5.5kw motor
Voltage	220/380(V)
Capacity	85~125(kg/h)
Weight	330(kg)
Packing size	1320440695
Shaft Speed	30(r/min)
Oil Remaining	6~8(%)
Squeezer Diameter	77(mm)
