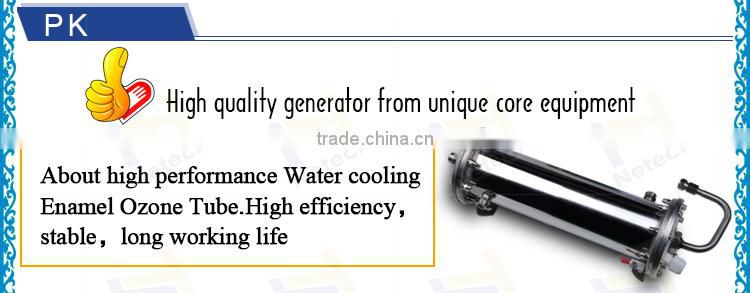

18g/hr -80g/hr water cooling ozone generator tube

Product description

Product Description

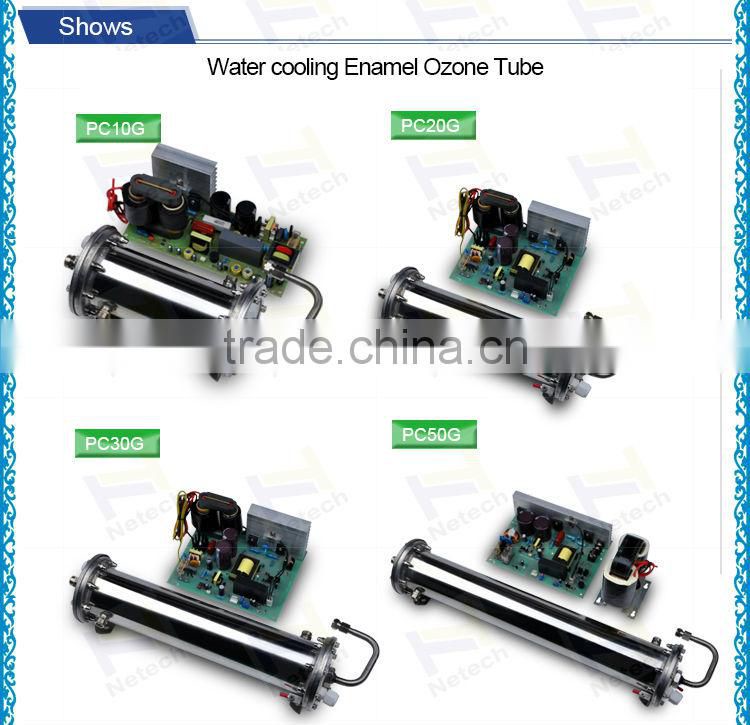

Water cooling 18g to 80g transformer for ozone generator parts ceramic plate

CH-PC 18-80G/Hr

Item	Unit	CH-PC18G	CH-PC30G	CH-PC40G	CH-PC60G	CH-PC80G
Ambient temperature	℃	23	23	23.9	23.9	24
Ambient humidity	%	38	38	37
Oxygen flow rate	LPM	1~4	2~8	3~10	5~17	8~20
Ozone concentration	Mg/L	112~78	123~72	123~70	120-72	118-74
Ozone output	G/Hr	6.7-18.7	14.8~34.6	22.1-42	36-73	56-88
Power	Kw	≤0.22	≤0.3	≤0.4	≤0.6	≤0.8
Cooling method	Water cooling for internal & external electrodes
Cooling water flow rate	LPM	≥2
Cooling water temperature	℃	ambient temperature ± 8℃
Diameter of gas inlet/outlet	mm	1.Air inlet & ozone outlet: EDφ8mm
Diameter of water inlet/outlet		EDφ10mm
Adjustable range	%	20-100
Power supply	V/Hz	110/220V 60/50HZ
Fuse	A	3		5	10
Ozone tube dimension	mm	285160125	340160125	460160125	600160125	705160125
Power supply dimension	mm	2129095	18914695		21014662
Ozone tube weight	Kg	2.5	3	3.6	4.9	5.45
Power supply weight	Kg	1			2.4

<cooling water output temperature: 35°C

<Working conditions

<Ambient temperature: 32°C, Oxygen concentration: >99%, Dew point: >-45,

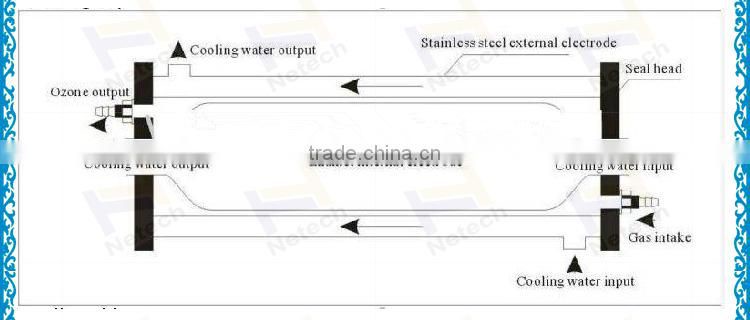

<1 ,Electrodes

<Use enamel coating as internal electrode, stainless steel as external electrode,

<capacity of corona resistance and machinery antiforce capacity are stronger than glass,

<ceramic material. Uniformity air gap between enamel coating internal

<electrode and stainless stee l external electrode, it produces high

<concentration ozone output. It uses insulation materials for

<connections,for preventing creepage.

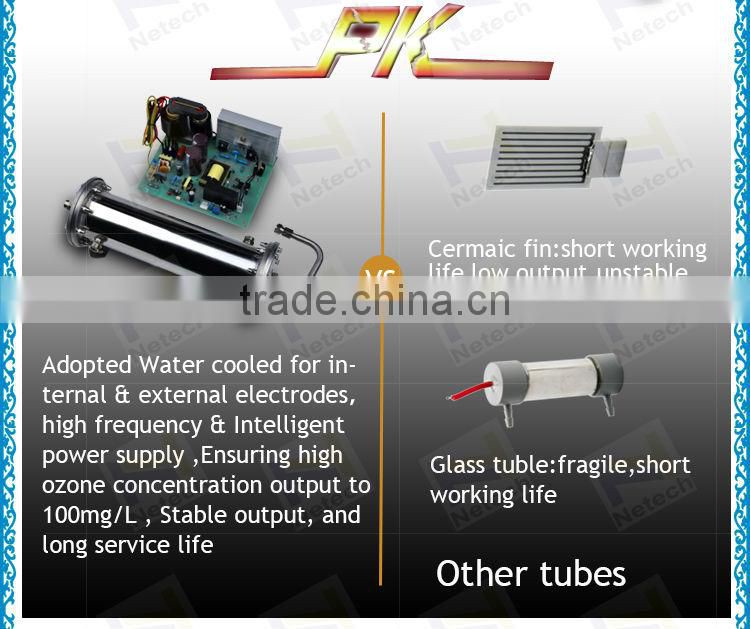

<Water cooled for internal & external electrodes, effective prevent high temperature rising <when the tube is discharging, for ensuring high ozone concentration output.

<3.Adjustable ozone output: 20-100%.

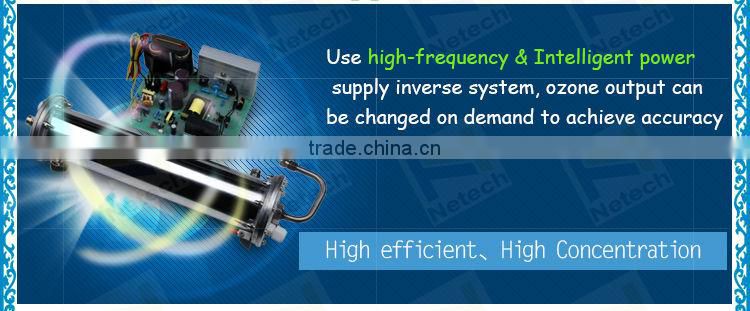

<Use high-frequency & Intelligent power supply inverse system, ozone output can be <changed on demand to achieve accuracy control.

<4.High ozone concentration & output

<Quality control

<Every procedure has personnel inspection.

<All the products must be tested and qualified before packaging.

<After sales service

<We provide 12month free maintenance.

<The buyer should return the product in the original conditions to us and should

<bear the shipping costs for return.

<If any part is required to be replaced,

<the buyer should also pay for the costs of the parts to be replaced.
