Specifications

fuel dispenser flow meter

1 Endure high temperature

2 Meter asphalt,bitumen,etc

3 Corrosion resistent

4 Digital display

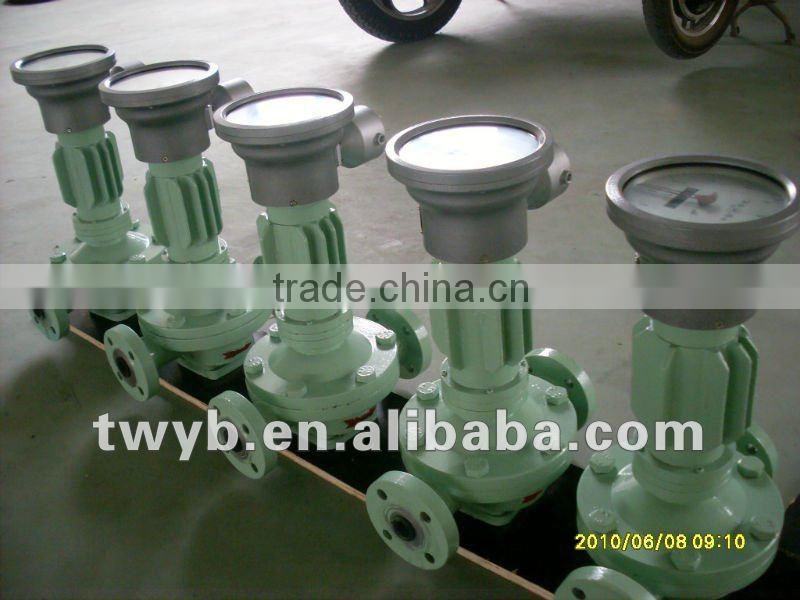

LC Series oval gear oil flowmeter, the main type of positive displacement flow meters, is used to measure pressure in the pipeline closed under full pipe flow of the fluid flow. It has good adaptation and essentially unregulated measuring temperature, pressure change, and easy of installation.

Medium temperature:

LC-A/B/E(-20°c~+100°c)

In high temperature adjustment, with high temperature heat tube can reach 280 degrees

2 Technical Data

( 1)normal cast iron type(A), Steel type(E),Stainless steel type(B)

Type	A	E	B
Pressure(Mpa)	1.6	2.5,4.0,6.4	1.6
Temperature(°C)	-20~280	-20~280	-20~280
Viscosity(mpa.s)	2~200	2~200	2~200



3 Flow range(m³/h)

Type	A	A	E	E	B	B
Accuracy	0.5	0.2	0.5	0.2	0.5	0.2
Diameter(10mm)	0.08~0.4	0.1~0.4	0.08~0.4	0.1~0.4	0.1~0.5	0.1~0.5
Diameter(15mm)	0.25~1.5	0.3~1.5	0.25~1.5	0.3~1.5	0.3~1.5	0.3~1.5
Diameter(20mm)	0.5~3	0.6~3	0.5~3	0.6~3	0.6~3	0.6~3
Diameter(25mm)	1~6	1.2~6	1~6	1.2~6	1.2~6	1.2~6
Diameter(40mm)	2.5~15	3~15	2.5~15	3~15	3~15	3~15
Diameter(50mm)	4~24	4.8~24	4~24	4.8~24	4.8~24	4.8~24
Diameter(80mm)	10~60	12~60	10~60	12~60	12~60	12~60
Diameter(100mm)	16~100	20~100	16~100	20~100	20~100	20~100
Diameter(150mm)	32~190	38~190	32~190	38~190	38~190	38~190
Diameter(200mm)	34~340	68~340	34~340	68~340	68~340	68~340

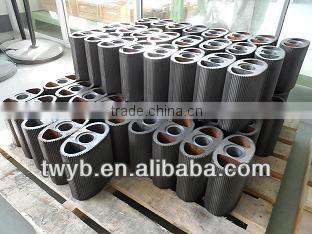

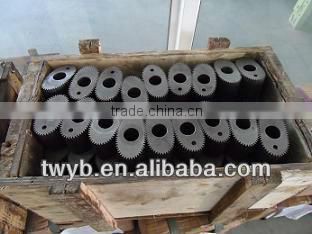

Parts of  fuel dispenser flowmeter
