2 Axis Brush filling Machine

Product description


Product Description




Specifications

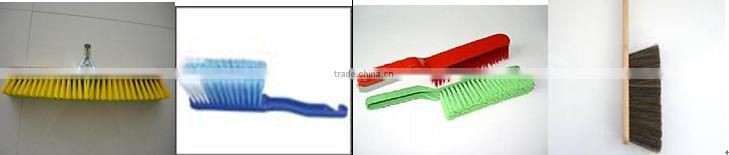

1)Brush filling machine can make cleaning brushes with flat surface.

2) 2 axis movement cleaning brush filling machine





2 Axis Brush filling Machine

 BM-CNC2Z23P2 Axes Flat Brush Tufting Machine
ItemModelBM-CNC2Z23P
1NO. of axis2-axis
2The stroke of X axis 200mm,provide flexible customize for customer.
The stroke of Y axis 150mm,provide flexible customize for customer.
3Setting of Worktablehigh-precision straight-line rail and ball screw,steady and durable.
4Material of Brush HandlePolyethylene, polystyrene, return materials, wood
5Material of FilamentsPP,PET,PVC,STEEL WIRE
6ApplicationTo tuft varieties of flat  brushes
7Diameter of Filaments 0.08mm-1.2mm
8The length of filament(outside the hole)15mm-50mm
9Diameter of hole 2mm-4mm
10Colors of Brush Filamentssingle color or double colors
11Maximum Tufting Speed4~6 holes/second
12AC motorItalian Brake Motor
13Type&Brand of Driver/Motorstepper motor&driver , can adopt some brand motor&driver requested by users.
14Adjust SpeedFrequency-conversion stepless-adjustable speed
15Replaceable FixtureFMS type. It can be easily changed to make other kinds of brushes.
16Head modeStaple
17Programme StorageStore 2000 programmes,each can imput 100 thousand processing data.
18Program SystemCNC system,high precision,stability and efficiency
19Dimension(L*W*H) 1250×1150×1600mm
20Gross weight 350KG
21Power3-phase 380v, 50Hz
22Total powerAbout 600w
23Compressed Air Pressure 0.6-0.8Mpa

Feature
1With 5.7 LCD screen,Chinese and English interface.
2Supports data switching.The controller can be used as a U-Disk,and it also can be connected with  U-Disk.
3Convenient to adjust the hole position with the handwheel.
4Long life , nice feel,and reliable keypad.
5Safe to operate.With alarming fuction ,the system will give an alam and stop to run  when the machine fails.
6Full Featured, Editing functions of processing data, such as ADD, ALT,INSERT,DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.
7 Easy to operate and program.
8Large capacity,it can store 2000 programmes and each programme can imput 100,000 processing data.
9 Convenient to find the specific program  by choosing the program number.
10Standard designed circuit reduces the line interference and makes sure send the correct singal.
11You can confirm whether the hole postion is right by step test after the program is saved.
12Reasonable designed mechanical part position makes the machine good features.
13Standard spare parts offered.
14Spare parts are all made by our factory.It is very easy to replaceable.
