Product Description

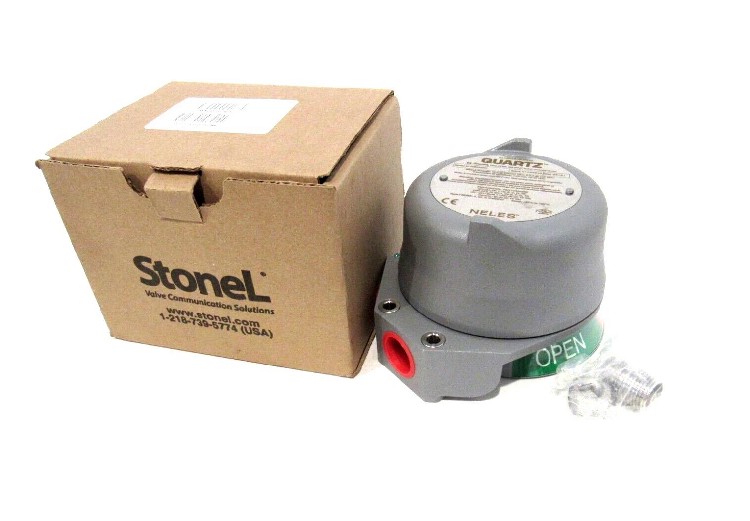

The NELES EN33A05DM is a robust mechanical limit switch box designed for reliable open close position feedback on quarter turn pneumatic and electric actuators. Manufactured to NELES’s rigorous quality standards, this switch box provides direct wired contact output for PLC, DCS, or safety interlock systems, ensuring operators have immediate and fail safe confirmation of valve status. Common applications include emergency shutdown valves, product transfer lines, tank farm isolation valves, and burner management systems across oil refineries, chemical storage terminals, power plants, and water treatment facilities.

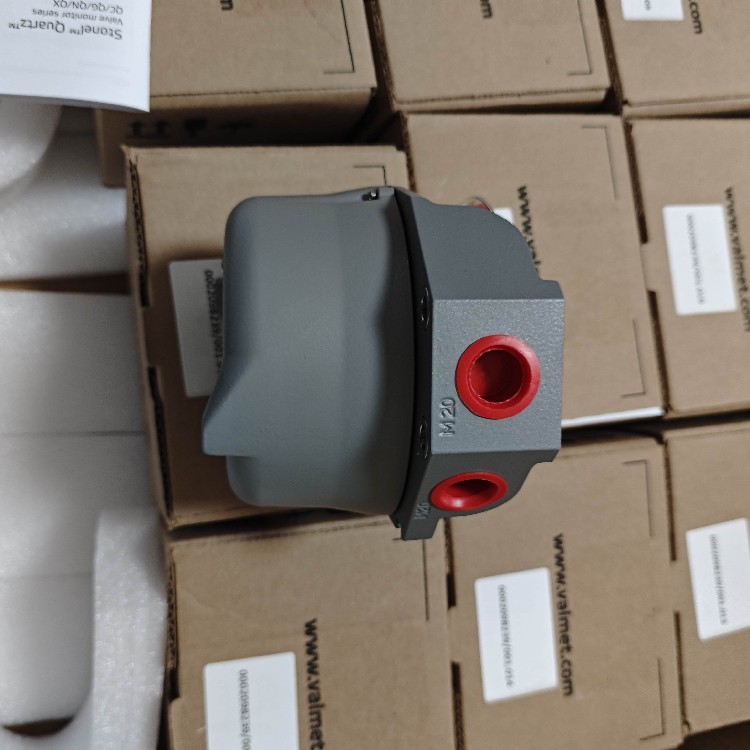

The NELES EN33A05DM features a compact glass reinforced polyester enclosure rated IP66 and IP67, offering complete dust tight protection and resistance to temporary submersion. The housing is also certified for hazardous area use with ATEX II 2G Ex mb IIC T6 and Ex tb IIIC T85°C ratings, allowing direct installation in Zone 1, Zone 2, and combustible dust environments without additional protection. Two cable entries accept M20 threads for flexible conduit or gland selection, and an internal grounding terminal ensures safe electrical bonding.

Inside the NELES EN33A05DM, two heavy duty mechanical snap action switches provide independent normally open and normally closed contacts rated at 5A 250V AC and 3A 30V DC. These switches are activated by a cam mechanism driven directly from the valve stem through a standard NAMUR VDI VDE 3845 coupling. The adjustable cams allow precise setpoint adjustment over 90 degrees of rotation without removing the enclosure cover, simplifying field setup. An external visual position indicator with three colors green yellow red provides local status confirmation even when the cover is closed.

Installation of the NELES EN33A05DM is straightforward thanks to its universal mounting pattern compatible with most ISO 5211 actuator drive shafts including 9 mm double square and 11 mm square adapters. The switch box attaches directly to the actuator top interface using four M6 bolts, with no additional brackets required for standard sizes. Wiring is simplified by a terminal block with clearly labeled common, normally open, and normally closed connection points. The NELES EN33A05DM operates reliably across a wide temperature range from -40°C to +80°C, making it suitable for freezing cold storage or hot process pipe bridges.

Maintenance benefits of the NELES EN33A05DM include a corrosion resistant housing that withstands chemical washdowns, salt spray, and UV exposure, ensuring long term reliability in outdoor and marine environments. The mechanical switches require no external power and generate no heat, making them inherently safe for explosive atmospheres without intrinsic safety barriers. For plant engineers seeking a durable, certified, and easy to install valve position feedback device, the NELES EN33A05DM limit switch box delivers proven performance backed by decades of NELES automation experience. Upgrade your valve monitoring with the NELES EN33A05DM and gain confident, immediate status indication for every critical valve in your facility.
