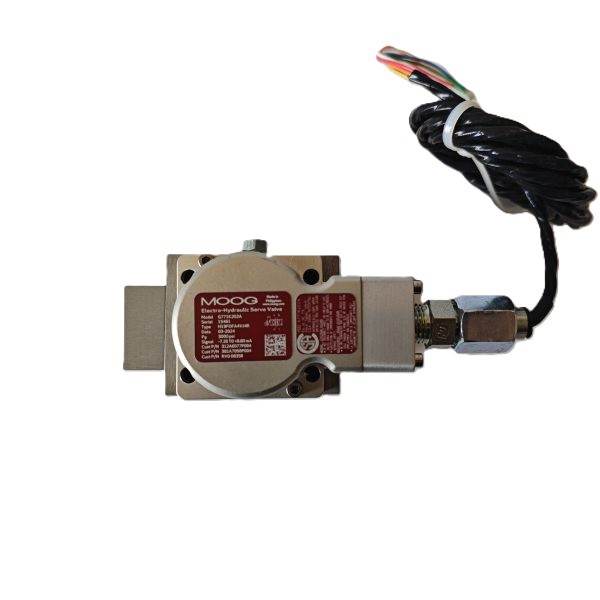

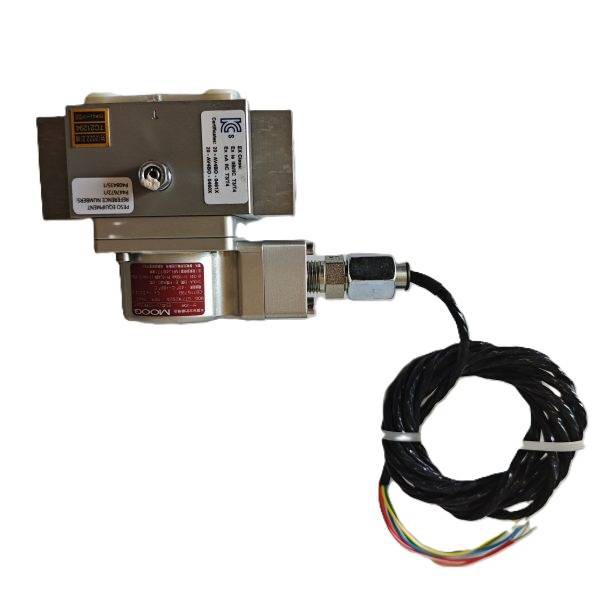

The MOOG G771K289A is the official upgraded replacement model for the legacy MOOG G771K200A servo valve, designed to deliver enhanced performance, greater reliability, and improved control precision in modern industrial hydraulic systems. As part of the trusted MOOG G771 series — a globally recognized family of 2-stage electrohydraulic servo valves — the G771K289A provides millisecond-level closed-loop regulation of hydraulic flow and pressure, making it an ideal choice for system upgrades, maintenance replacements, and new project deployments across automation, heavy machinery, aerospace, and energy sectors.

With the discontinuation of early G771K models, MOOG has systematically transitioned to performance-optimized successors such as the G771K289A, enabling users to modernize their hydraulic systems without extensive redesign or prolonged downtime.

Direct Replacement Compatibility

The G771K289A serves as a direct, drop-in replacement for the G771K200A, maintaining identical mounting dimensions and mechanical interface configurations. This seamless compatibility allows users to replace aging valves without modifying existing valve blocks, hydraulic piping, or control logic, significantly reducing maintenance costs, spare parts inventory complexity, and unplanned system downtime. The valve adheres to the ISO 10372-02-02-0-92 mounting surface standard, ensuring straightforward integration into existing hydraulic manifolds.

Performance Enhancements Over G771K200A

Compared to the outgoing G771K200A, the G771K289A incorporates several key engineering improvements:

• Faster Dynamic Response: Advanced electrohydraulic control technology delivers a markedly reduced step response time, enabling the valve to meet high-frequency control demands in servo-driven systems, precision machining, and automated production lines.
• Improved Pressure Control Stability & Flow Linearity: The upgraded model exhibits superior stability under varying pressure conditions and more precise flow characteristics, resulting in smoother hydraulic motion and reduced system vibration and noise.
• Enhanced Temperature Adaptability: Optimized internal materials and sealing technology allow the G771K289A to maintain consistent performance over a wider temperature range, ensuring reliable operation during prolonged equipment runtime.
• Extended Component Durability: The valve body is constructed from high-strength materials combined with advanced sealing techniques, providing exceptional wear resistance and corrosion protection for long-term reliable operation in harsh industrial environments.

Core Technical Specifications

Key Features & Benefits

• True Drop-In Replacement: Physically and electrically compatible with existing G771K200A installations, eliminating the need for manifold modifications or control system reprogramming.
• High-Speed Dynamic Response: Engineered to react almost instantaneously to electrical input changes, maintaining precise hydraulic output under varying load conditions and enabling millisecond-level closed-loop control.
• Superior Control Precision: Low hysteresis (≤3%) and high resolution ensure accurate positioning, velocity, and force control in demanding closed-loop applications such as rolling mill automatic gauge control (AGC), injection molding pressure profiling, and aerospace actuator test stands.
• Robust Construction for Harsh Environments: The rugged, compact design with high spool driving forces ensures long-life operation even under continuous heavy loads, high vibration, and extreme temperature conditions.
• Intrinsically Safe Versions Available: Select G771K configurations are certified for use in potentially hazardous environments, meeting FM, ATEX, CSA, TIIS, and IECEx standards for explosive atmospheres.
• Flexible Electrical Input Options: Supports a wide range of rated signals (8, 15, 20, 40, 200 mA) and standard analog current interfaces, providing broad compatibility with PLCs, DCS systems, and motion controllers.
• Mechanical Feedback (MFB) Design: The cantilever feedback spring mechanism provides robust, reliable spool position feedback without requiring external electronics, ensuring consistent performance and simplifying field maintenance.
• Any-Orientation Installation: The valve can be installed in any orientation — fixed or movable — offering maximum flexibility for space-constrained equipment layouts.

Applications

The MOOG G771K289A servo valve is ideally suited for high-criticality hydraulic control applications across the following industries:

• Steel & Metal Processing: Automatic Gauge Control (AGC) systems for rolling mills, coil tension control, continuous casting mold level regulation, and hydraulic screwdown systems.
• Plastics & Injection Molding: Melt pressure closed-loop control, injection speed profiling, mold clamping force regulation, and blow molding wall thickness control.
• Industrial Automation: Hydraulic servo systems for CNC machine tools, robotic arms, automated production lines, and precision testing equipment.
• Aerospace & Defense: Flight simulators, structural fatigue test benches, actuator control systems for aircraft landing gear and flight surfaces, and missile fin actuation.
• Power Generation: Steam turbine electro-hydraulic control systems (DEH), gas turbine fuel regulation, hydroelectric turbine wicket gate control, and boiler feedwater valve positioning.
• Heavy Machinery & Mining: Large excavator hydraulic systems, material handling equipment, mining machinery, and heavy-duty presses.
• Research & Testing: Laboratory hydraulic test rigs, seismic simulation tables, vehicle dynamics testing, and high-cycle fatigue testing systems requiring high responsiveness and repeatability.
• Oil & Gas / Petrochemical: Pipeline valve control, wellhead choke positioning, and hydraulic power unit (HPU) flow regulation in hazardous area installations (using intrinsically safe certified versions).

Installation & Maintenance Guidelines

• Fluid Cleanliness: Maintain hydraulic fluid cleanliness to ISO 4406 Code 16/13 or better. For longer valve life, a β5 ≥ 75 (5 μm absolute) filter is strongly recommended. Contamination is the leading cause of servo valve performance degradation.
• Fluid Compatibility: Standard fluorocarbon (FKM) seals provide compatibility with a wide variety of hydraulic fluids, including mineral oils (DIN 51524, ISO 11158), phosphate esters, and synthetic esters.
• Viscosity Range: Recommended viscosity range is 10 to 97 mm²/s (cSt) at 38 °C; maximum permissible range is 5 to 1,250 mm²/s (cSt) at 38 °C.
• Pre-Installation Inspection: Before installation, ensure the hydraulic system is thoroughly flushed and contamination-free. Never transport or handle the valve by its torque motor or pilot stage components.
• Post-Replacement Calibration: After replacing a G771K200A with the G771K289A, perform null bias adjustment and verify step response characteristics to confirm optimal system integration.
• Routine Preventive Maintenance: Schedule periodic inspections based on duty cycle, not simply calendar time. Monitor valve response, electrical connections, and hydraulic lines. Document all maintenance activities to track performance trends over time.
• Seal Compatibility: Verify seal material compatibility when using non-standard hydraulic fluids. Contact MOOG application engineering for special fluid requirements.

Replacement Model Reference

As an authoritative reference, the following official upgrade paths have been documented for the MOOG G771 series:

Note: These replacement models maintain interface compatibility while representing a technical upgrade generation from the original MOOG designs.

Conclusion

The MOOG G771K289A represents the next generation of precision hydraulic control within the legendary G771 series, delivering faster response, enhanced stability, and extended durability compared to the original G771K200A. Its true drop-in compatibility ensures seamless system upgrades with minimal downtime, while its robust construction and wide application versatility make it the preferred choice for engineers and maintenance professionals seeking to modernize hydraulic systems across steel, plastics, aerospace, power generation, and heavy machinery industries.

When selecting a replacement for a G771K200A — whether for planned maintenance, unexpected valve failure, or a system performance upgrade — the MOOG G771K289A offers the ideal combination of precision, reliability, and longevity required for today‘s demanding industrial automation environments.
