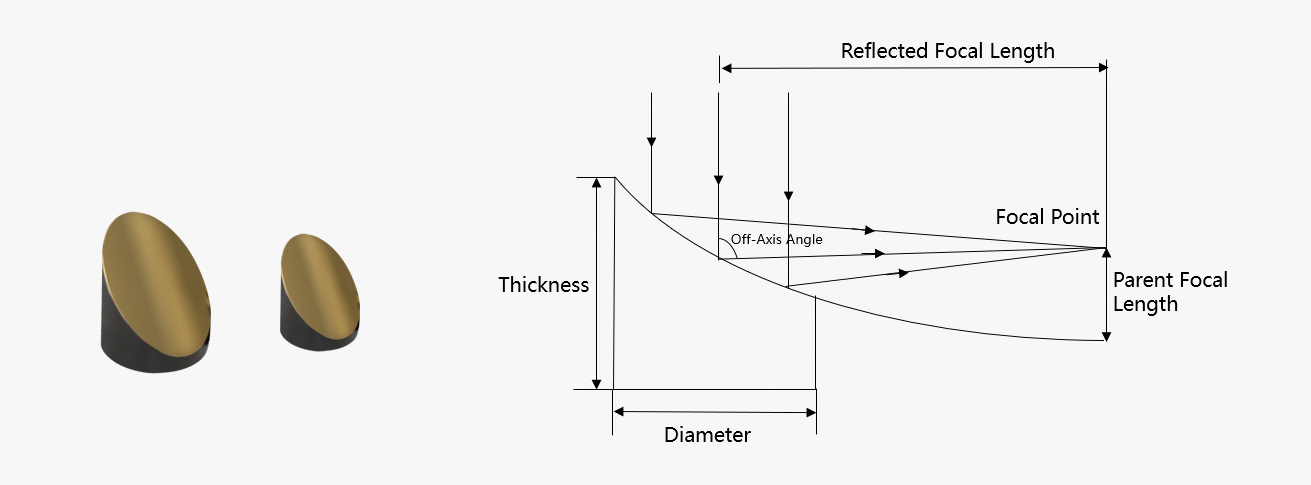

Our standard off-axis parabolic mirrors are segments of a full paraboloid with a circular cross sectional aperture. The optical axis is folded 90° and displaced from the mechanical axis, giving unobstructed access. Parabolic mirrors allow achromatic collimation or focusing of light from UV to near IR.

Low scatter for UV applications

Achromatic focusing and collimation

UV-IR and NIR-IR coating options

15°, 30°, 45°, 60° or 90° offset angle

Bare gold or protective gold film for NIR and IR applications，Gold-coated off-axis parabolic mirrors (OAP) are designed to minimize scattering losses in light focusing applications. Provides excellent reflectivity from near infrared (NIR) to far infrared (IR).

Aluminized coating suitable for UV, visible and near-infrared applications，Silver-coated off-axis parabolic mirrors (OAP) are designed to guide and focus incident collimated light at a specific offset angle, minimizing scattering losses. Offers high reflectivity from visible to infrared (IR), making it ideal for broadband applications.

Aluminized coating suitable for UV, visible and near-infrared applications，Aluminum-coated off-axis parabolic mirrors (OAP) are a cost-effective solution for focusing incident light and minimizing scattering losses. Offers high reflectivity from ultraviolet (UV) to near infrared (NIR). OAP aluminum-coated off-axis parabolic mirrors are used in optical systems such as Schlieren and spectroscopic systems, and to focus laser beams in laser systems.

Seray Optics offers full customization of optical & imaging components, tailored to your unique application needs.

Our core capabilities include:

Customization of dimensions, substrates and coatings

High-precision control of surface quality and flatness

Machining to tight tolerances and complex geometric profiles

Flexible scalable production system — from prototype sampling to mass production
