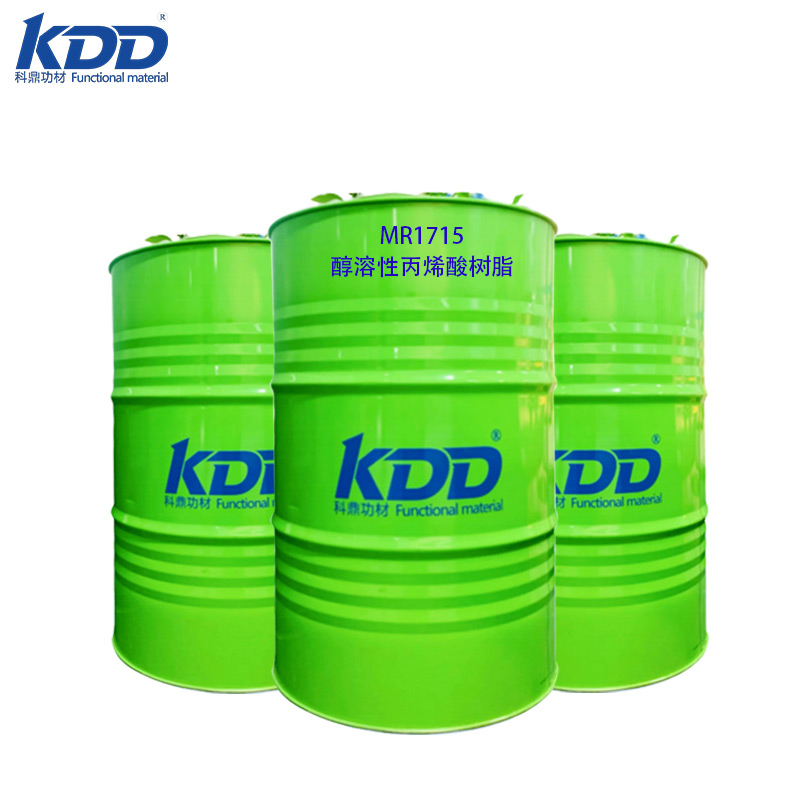

Made in China KDD resin MR1715 alcohol soluble acrylic resin PCB circuit board insulation paint special resin, low odor, environmentally friendly, fast drying
Product description
Solid (effective) content: (± 2%) 52
Appearance: transparent to microemulsion liquid
Solvent: ethanol/propylene glycol methyl ether
Viscosity: (cps/25 ℃) 3000~5500
Acid value: (mgkOH/g) 18~30
Glass transition temperature (TG): (℃) 35
Product Features
Excellent adhesion of plastic
• Good alcohol solubility
• Low odor
• Good chemical resistance
• Insulation properties
Application Direction
Low odor and environmentally friendly three proof paint
Anti burning adhesive plastic paint
• High durability baking paint
solubility
Butyl acetate ● Anhydrous ethanol ●
Butanone ● 90% ethanol ●
N-butanol ● 80% ethanol ●
PM ● 70% ethanol ●
BCS ● 60% ethanol ●
120 # ○ 50% ethanol ○ D30 ○ water ○●: infinite dilution; ⦿: Large dilution; ○: Minor dilution; X: Insoluble
