Product Introduction

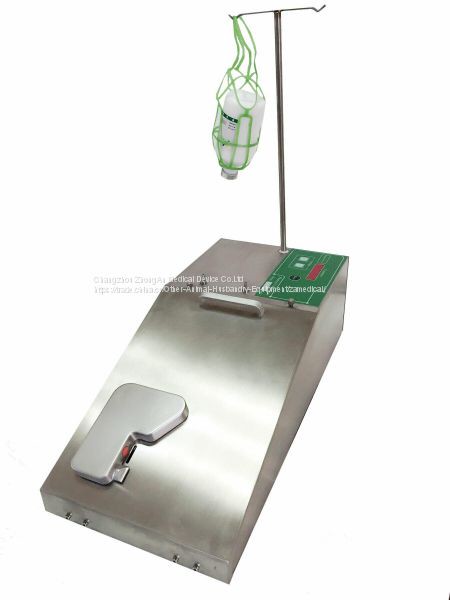

The automatic vaccinator for day-old chick is a patented device developed and manufactured

by Changzhou ZAMedical Devices (ZAM), China. The device is used for the injection of day-oldchicks or within 7-days poultry. The device is suitable for the administration of live vaccines (Marek Disease), killed vaccines (ND Inactivated), antibiotics or vitamins (either water or oil based liquid). It has the features of rapid injection, easy operation, accurate and multiple dose.

1. Technical date

Driving Power	Step Motor
Power Source	AC: 220/110V 50HZ
Injection Dose	0.15ml~0.3ml adjustable (others upon customers request)
Injection Accuracy	+ 0.01ml
Key Component Material	Stainless steel, Medical Silicon rubber   tube
Suitable Injection Objects	Within 7-days Poultry (Chick, Duck, etc.)
Suitable Vaccines	Water or oil based vaccines
Max. Injection Rate	4000 per hr
Net Weight	9kg

2. Package Components

1.Machine Body     2. PowerWire     3. Vaccine Bottle Hanger       4. No.7 Needles (20)              5. 50ml Syringe     6. Medical-use Soft Tube  7. Wrench 8. Users Manual

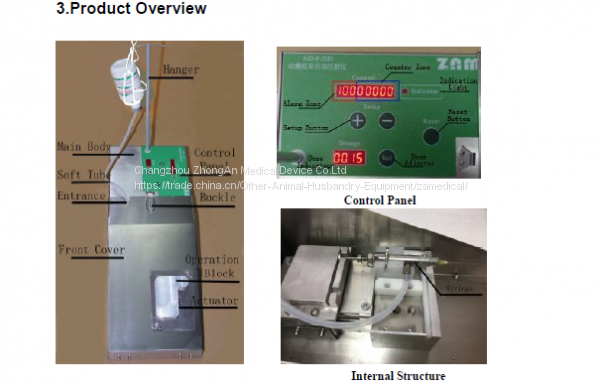

1. 3.Product Overview


2.

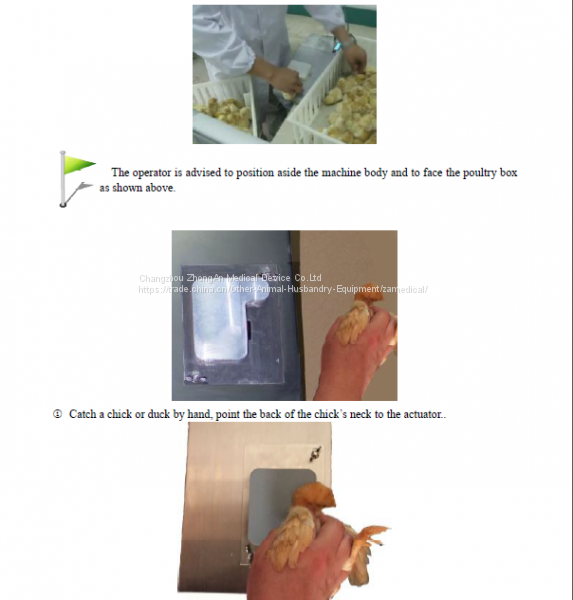

   4.Injection instruction
