Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph

Product description


Product Description





Top Selling Greenhouse CO2 Controller

Smart Farming CO2 Controller Hydroponics/Copnograph

Related Products

"Quality is Our Culture!"

Click the picture or the title to know more details.

Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/CopnographTop Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/CopnographTop Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph
Anying Temperature & Humidity Sensor TH6

Unique design, easy to install

Relay & RS485 Output

with external sensor

Enable Software Management

Anying Solid Moisture & Temperature Sensor
High-sensitivity
Enable Software Management
Optional 4-20 mA, 0-2V, RS485 output
Be compatible to all kinds of solid
Endure long time electrolysis

Anying Humidity & Temperature Controller TH1

Clear LCD screen to show real-time data

RS485 Output

with built-in sensor

Enable Software Management

Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/CopnographTop Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/CopnographTop Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph
Anying Lux Meter A-LUX1



Waterproof, easy installations
Stable remote control
3 optional output: 0-5V/4-20mA/RS485/RS232
3 optional power supply: 220V AC/24V AC/24V DC
Anying Conductivity Sensor A-EC01

High sensitivity and stability
3 Options of Output signals:
Voltage output:0~5V or 0~2V
Current output:4-20mA
Digital output:RS485

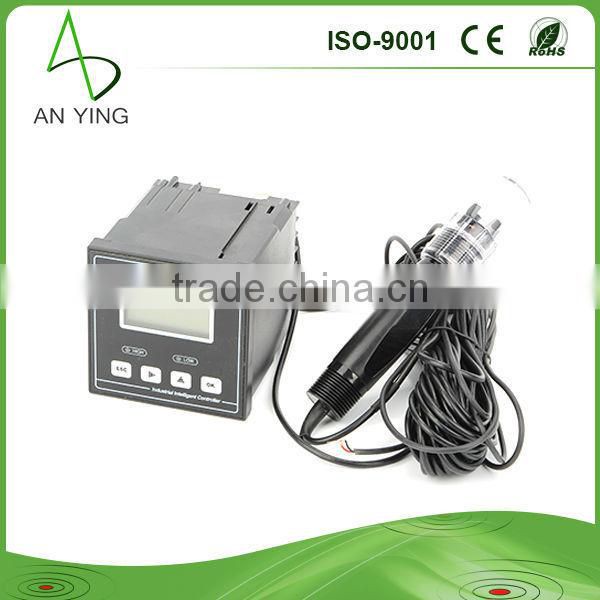

Anying PH Sensor A-PH01

Standard & friendly English interface
Equipted with relays
Together with temperature sensor
3 optional output: 0-5V/4-20mA/RS485
3 optional power supply: 220V AC/24V AC/24V DC



Product Feature

Anying CO2 intelligent carbon dioxide transmitter, using imported infrared sensor probe, greatly enhance the service life of the products, compared with the conventional electrochemical sensor, the service life raised from two years to five years; variable transmission part adopts the top domestic integrated circuit technology, advanced machinery and welding. We have a high-level R & D team, every product is processed with great care, to ensure the reliability of each product in your hand; in order to apply digital analog mixed communication technology, we made it with the whole intelligent gas variable feeder. Products are with communication and self-diagnosis function, also realize the convenient installation and maintenance. The advanced performance of typical intelligent scene supervision has been fully developed, reaching the standard of industrial security monitoring equipment, it’s now widely used in environmental protection, test equipment, medical treatment equipment, chemical, pharmaceutical and other industrial applications.

Details Show

Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph

Technical Parameter



Detection principle

Dual channel non dispersive infrared principle

Range

0~2000ppm ,0 ~ 5000ppm (Maximum 0-150,000 PPM)

Precision

±2% ppm      (0~3000ppm) @10 ~ 50

Response time

0 ~ 80% < 30sec

Data update time

Every 2.0 Seconds

Preheating time

@25    < 90sec

Operating environment temperature

0 ~ 50, 0 ~ 90%RH Non Condensing

Save temperature

-40 ~ 70

Output

Analog quantity  :4~20mA , 0~5V , 0~10V

Digital quantity :RS485

Power supply

DC 12-24V

Power waste

Peak 150mA, Low 25mA (@5VDC)

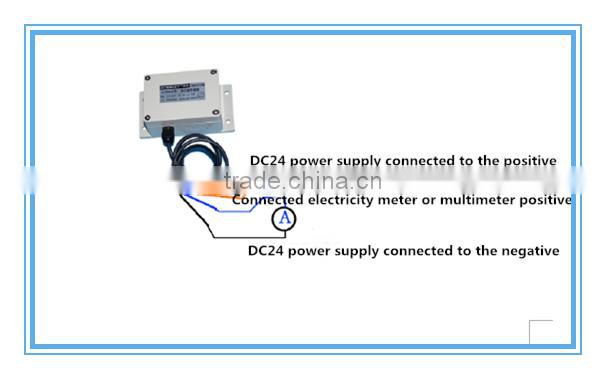

Interface

Red:    (+)

Blue:(-)

Yellow:    The signal line

Size

(W)112mm  x (H)45mm  x (D)90mm







Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph



Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph



Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph

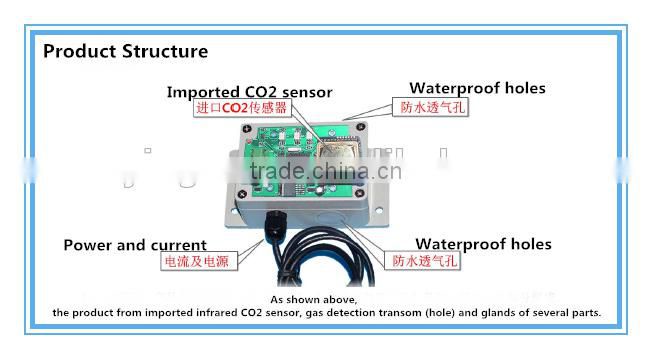

Introductions of Structure & Interface

Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph

Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph

Shipping & Payment

Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph

About ANYING

Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph

Our Service

Top Selling Greenhouse CO2 Controller, Smart Farming CO2 Controller Hydroponics/Copnograph

The OEM service is offered if needed.
