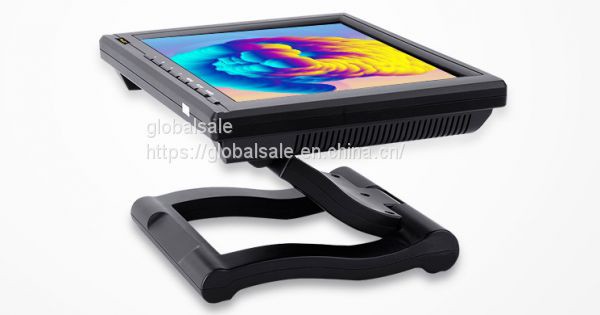

Field LCD Touch Monitor 7 8 9.7 10.1 10.4 inch

Product description


Product Description

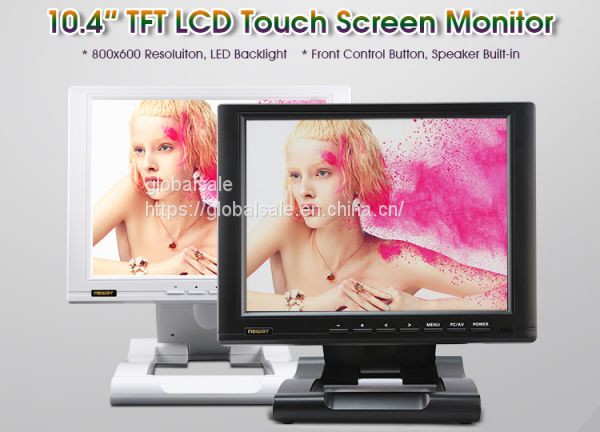

TFT LCD monitor with touch screen.

* Use a high quality new LCD Panel, with 800x600 resolution, 250cd/m² high brightness, 500:1 contrast which can display clear images. * It uses LED backlight,which has advantage like Energy-Saving, Long life and  environmental protection.

Abundant Interfaces
CL1046NT also has HDMI, DVI-D, VGA, YPBPR, S-Video, Audio (1 RCA) &Video (2 RCA) input, which can support many devices like PC, DVR, Camera, DVD, HD Video Player and so on.

desktop & wall mount folding bracket.

* Power consumption ≤8W, Audio output≤1.2W

* Work temperature -20~60℃, Store temperature -30~70℃

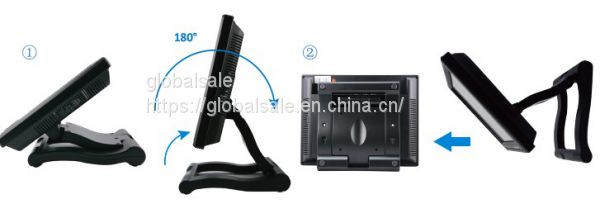

Support desktop & wall mount folding bracket

Support VESA 75mm Mounting holes

4-wire resistive touch screen

CL1046NT: 4-wire resistive touch (USB Touch interface as standard. RS232 Touch interface is optional.)

CL1046N: Non- touch

Application

With convenience, safety, space-saving feature, this product employs new integrate circuits and high-quality LCD Screen. Its advantage is low power consumption, emits no radiation, etc. This product is shaped with modern style and is easy to be carried with. Usually best for VGA, VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military, Oil Gas & Energy, Retail. You will certainly benefit from this monitor in lots of ways, to some of them.

Ÿ  Specification

Model

CL1046N (without touch)

CL1046NT (with   touch)

LCD Size

10.4 inch

Signal Input

HDMI x 1 / DVI-D x 1 / YPbPr x   1/S-video x 1 /

VGA x 1 /   Video x 2 / Audio x 1

Resolution

800 x 600

Touch Panel

4-wires resistive (USB Touch as   standard)

Optional

RS232 Touch Interface

Dot Pitch

0.088(W) x 0.264(H) mm

Active area

211.2(W) x 158.4(H) mm

Color System

PAL-4.43, NTSC-3.58

Brightness

250cd/m2

Contrast

500:1

Aspect Ratio

4:3

Viewing Angle

140°(H) / 110°(V)

Voltage

DC12V

Power consumption

≤8w

Speaker

x1(Built-in backside)

Audio output

≤1.2w

Work temperature

-20~60

Store temperature

-30~70

Size(mm)

226L x 200W x 39H

260L x 200W x   70H (with bracket)

Weight

1554g

Support OS (Touch Driver)

Windows XP / Windows Vista / Windows 7   (32 bit & 64 bit)

/ Windows 8   (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6

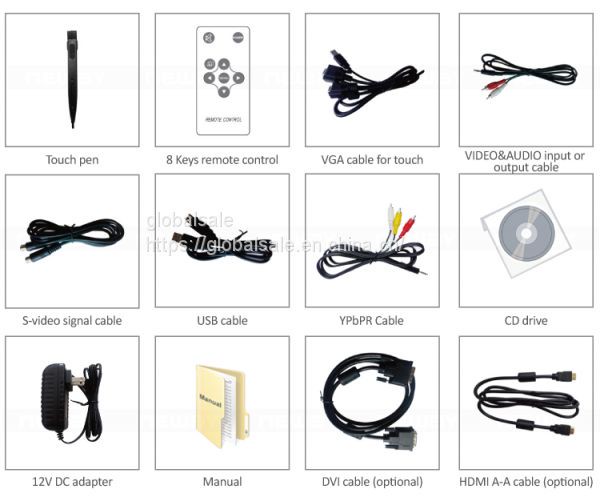

Ÿ  Accessories

Shipping Way: DHL /Fedex/UPS/TNT/Air way /Sea way
