Rack Mount Monitor RM173S

Product description


Product Description

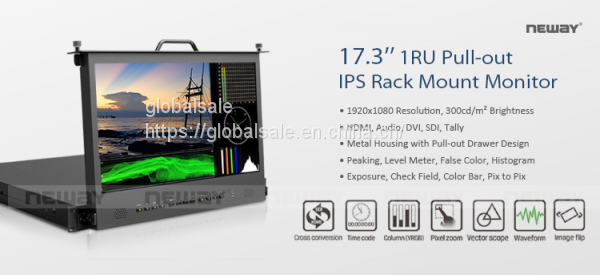

RM173S: 17.3 inch 1RU Pull-out Rack Mount Monitor

1920×1080, Full HD resolution,
300cd/m² high brightness,
700:1 high contrast,
1RU pull-out drawer type,
3G-SDI, HDMI, DVI, Audio & Tally inputs,
SDI and HDMI cross conversion,
Waveform PIP mode, vector,
Column (YRGB peak), time code.

Feature

It features 17.3” 16:9 Ips panel with 1920X1080 full HD resolution ,700:1 hight contrast,178°wide viewing angles 300cd/m² high brightness,which offers outstanding viewing experience

* Durable & Space-saving

Metal Housing with pull-out drawer type design,which provides perfect protection for a 17.3inch monitor from shock and drop. It’s also convenient for portable outdoor,or applied in rack mount because of amazing space-saving design.Power will be off automatically when screen down and pushed in.

Dual 7" 3RU Rack Monitors With dual 7” IPS screens, viewing SD, HD and 3G-SDI video on 3RU rack monitor.Perfect 3G-SDI Monitoring with Broadcast Quality for Live Events & Shows

* SDI and HDMI Cross Conversion

The HDMI output connector can actively transmit an HDMI input signal or output and HDMI signal that has been converted from an SDI signal.In short signal transmits from SDI input to HDMI output and from HDMI input to SDI output

* Advanced Function

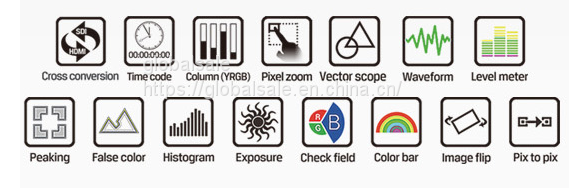

RM173S integrated column(YRGB peak),time code ,waveform,vector scope&audio level meter into field monitor. These assist users to accurately monitor when shooting,making and playing movies/videos

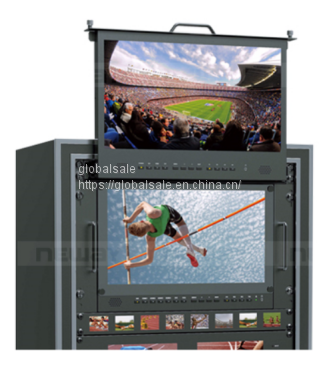

It has a various of mounting methods for broadcast,on-site monitoring and living broadcast van,etc. As well as setup a video wall of rack monitors in control room and see all the scenes.A 1U rack for a customized monitoring solution also can be supported for viewing from different angles and images displays.



 Application

Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields because of better filtering and scaling advantages, 3RU rack monitors are really suitable for broadcast quality monitoring system.With high quality SD, HD & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently. Highly integrated Tally port and Tally description, which are ideal for large broadcast systems.

Ÿ  Specification

Display

Display Screen

17.3″IPS

Physical Resolution

1920×1080

Aspect Ratio

 16:9

Brightness

300cd/m2

Contrast

700:1

Viewing Angle

178° / 178° (H/V)

Input

3G-SDI

1

HDMI

1

DVI

1

AUDIO

2(L/R)

TALLY

1

Output

3G-SDI

1


HDMI

1

Audio

Speaker

2


Ear Phone Slot

1

SDI Format

SMPTE-125M

480i(59.94)

1080i(60/59.94/50)

1080p(30/29.97/25/24/24sF/23.98/23.98sF)

SMPTE-292M

1080p(30/29.97/25/24/24sF/23.98/23.98sF)

SMPTE-296M

720p(60/59.94/50/30/29/25/24/23.98)

SMPTE-372M

720p(60/59.94/50)

1080i(29.97/25/24/23.98)

1080p(60/59.94/50/30/29.97/25/24/23.98)

SMPTE-425M-AB

-Level A&   Level B

1080P(60/59.94/50)

1080i(60/59.94/50)

720p(60/59.94/50/30/29.97/25/24/23.98)

ITU-R BT.656

576i(50)

HDMI Format

Full HD-HD

1080p,1080i,720p,576p,576i,480p,486i

Power

Current

2.8A

Input Voltage

DC10-18V

Power Consumption

≤32W

Environment

Operating Temperature

 -20 – 60ºC

Storage Temperature

 -30 – 70ºC

Dimension

Dimension (LWD)

482.5X44X507.4mm

Weight

8.6kgs

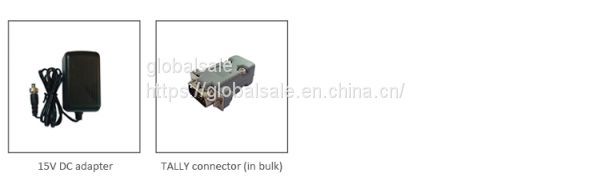

Ÿ  Accessories

Shipping Way: DHL /Fedex/UPS/TNT/Air way /Sea way
