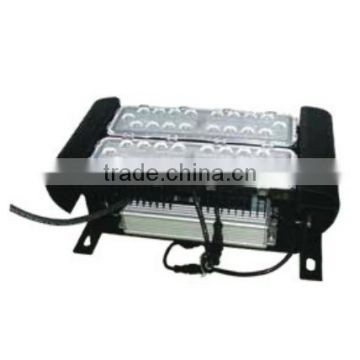

10 LED Tunnel Lightings
Product description
Product Description
Product Introductions:
l CREE or Philips Lumileds LED, high luminous efficiency and long life;
l High efficiency LED Driver, the wide range input voltage AC100-277V/AC200V-480V;
l Specially designed for outdoor using, with self-cleaning mechanism lead to less dust and water accumulation, reducing maintenance;
l Seperate drive box design, enhancing the driver’s dfficiency and stablity;
l IP67 rated, water and dust proofed, even withstand stormwater.
Material and process:
l 6063 aluminium module housing;
l Anodized aluminum housing withstand corrosion.
Product Applications:
l LED Tunnel Lighting series can use in highway, railway, subway, underground passage, plant, warehouse, gymnasia, construction site.
Distribution Curves:
Specification:
T120
T180
T240A
T240B
Technical Parameters:
Type | PF | LED Tj | CCT | Ra | Working Life | Light Materials | Working Temperature | Protection Level |
T120 | >0.95 | <80°C | 2700-7000K | >80 | 50,000Hrs | Aluminum | -30 - + 50°C | IP67 |
T180 | >0.95 | <80°C | 2700-7000K | >80 | 50,000Hrs | Aluminum | -30 - + 50°C | IP67 |
T240A | >0.95 | <80°C | 2700-7000K | >80 | 50,000Hrs | Aluminum | -30 - + 50°C | IP67 |
T240B | >0.95 | <80°C | 2700-7000K | >80 | 50,000Hrs | Aluminum | -30 - + 50°C | IP67 |
Type | Power | Luminous Flux | Product Dimension | Packing Dimension | Net Weight | Gross Weight |
T120-1 | 40W | 4000Lm | 480×287×180mm | 550×285×235mm | 3.2Kg | 4.0Kg |
50W | 4750Lm | |||||
60W | 5400Lm | |||||
T120-2 | 100W | 10000Lm | 4.2Kg | 5.0Kg | ||
120W | 11400Lm | |||||
T180-1 | 40W | 4000Lm | 150×290×230mm | 325×155×245mm | 2.8Kg | 3.6Kg |
60W | 5400Lm | |||||
T180-2 | 100W | 10000Lm | 235×290×230mm | 3.8Kg | 4.6Kg | |
T180-3 | 120W | 12600Lm | 315×290×230mm | 4.8Kg | 5.6Kg | |
180W | 17100Lm | |||||
T240A-2 | 100W | 8400Lm | 170×340×230mm | / | 4.4Kg | 5.2Kg |
T240A-3 | 120W | 12600Lm | 250×340×230mm | 5.4Kg | 6.2Kg | |
180W | 17100Lm | |||||
T240A-4 | 200W | 20000Lm | 330×340×230mm | 6.4Kg | 7.4Kg | |
240W | 22800Lm | |||||
T240B-2 | 100W | 10000Lm | 430×340×170mm | 520×430×230mm | 6.3Kg | 7.3Kg |
T240B-3 | 120W | 12600Lm | 510×340×170mm | 600×430×230mm | 7.3Kg | 8.3Kg |
180W | 17100Lm | |||||
T240B-4 | 200W | 20000Lm | 590×340×230mm | 680×430×230mm | 8.3Kg | 9.3Kg |
240W | 22800Lm |
