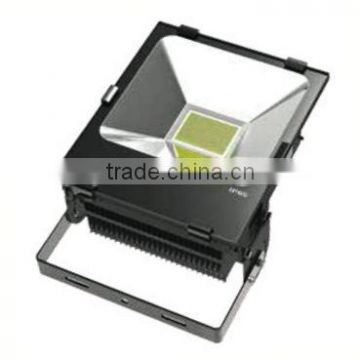

14 LED Flood Lightings
Product description
Product Description
Product Introductions:
l CREE LED, high luminous efficiency and long life;
l MEAN WELL High efficiency LED Driver, the wide range input voltage AC100-277V/AC200V-480V;
l Heatpipe riveted to the heat base and fins, efficiently transfer the heat;
l Seperate drive box design, enhancing the driver’s efficiency and stability;
l The projection angel is conveniently adjusted with multi-points adjustable bracket;
l IP65 rated, water and dust proofed, even withstand stormwater.
Product Applications:
l LED Flood Lighting series can use in shopping plaza, exhibition center, parking lot, stadium, tennis playground, gymnasia, billboard, statue, lighting engineering project, building, public passage, and other indoor and outdoor applications.
Distribution Curves:
Specification:
F10 F20 F30 F50
F70
F100
F150
F200
Outline Dimension:
F10
F20
F30
F50
F70
F100
F150
F200
Technical Parameters:
Specification | Power | PF | Luminous Flux | CCT | Ra | Working Life | Lighting Angle | Working Temperature | Protection Level |
F10 | 10W | >0.95 | 1000Lm | 2700-7000K | >80 | 50,000Hrs | 120° | -30 - + 50°C | IP65 |
F20 | 20W | >0.95 | 2000Lm | 2700-7000K | >80 | 50,000Hrs | 120° | -30 - + 50°C | IP65 |
F30 | 30W | >0.95 | 3000Lm | 2700-7000K | >80 | 50,000Hrs | 120° | -30 - + 50°C | IP65 |
F50 | 50W | >0.95 | 5000Lm | 2700-7000K | >80 | 50,000Hrs | 120° | -30 - + 50°C | IP65 |
F70 | 70W | >0.95 | 7000Lm | 2700-7000K | >80 | 50,000Hrs | 120° | -30 - + 50°C | IP65 |
F100 | 100W | >0.95 | 10000Lm | 2700-7000K | >80 | 50,000Hrs | 120° | -30 - + 50°C | IP65 |
F150 | 150W | >0.95 | 15000Lm | 2700-7000K | >80 | 50,000Hrs | 120° | -30 - + 50°C | IP65 |
F200 | 200W | >0.95 | 20000Lm | 2700-7000K | >80 | 50,000Hrs | 120° | -30 - + 50°C | IP65 |
