Specifications

fuel nozzle, mist nozzle, fog nozzle, high pressure garden hose nozzle, plastic nozzle, fountain nozzle

High pressure nozzle system users move to medium pressure nozzle system?



Price conscious farmers in the Middle East have chosen our nozzles for solving their problems i.e.

high temperature stress, disease control, crop protection and so on. And quality conscious farmers in Japan have use ours for several years.





TECHNICAL SPECIFICATIONS (Nozzle)

Pressures(Nozzle)	0.25mm	0.30mm
20bar	130cc/min	145cc/min
25bar	145cc/min	160cc/min
30bar	160cc/min	175cc/min



TECHNICAL SPECIFICATIONS (Plastic pipe)

Working	33kgf/cm2 at 20 °C
Maximum	134kgf/cm2 at 20°C



Features and Applications

Features :

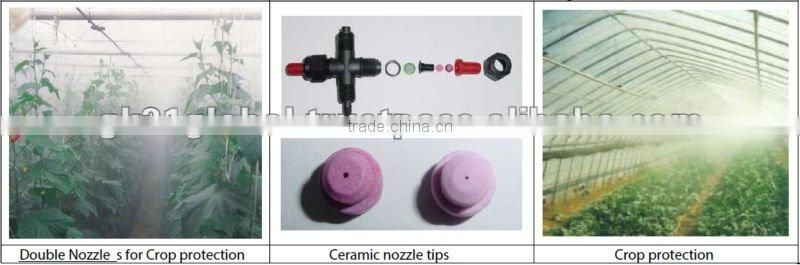

Ceramic Nozzle tip

Built-in stainless steel mesh filter

Easy Maintenance

Installer friendly quick connecting type

High quality plastic pipe

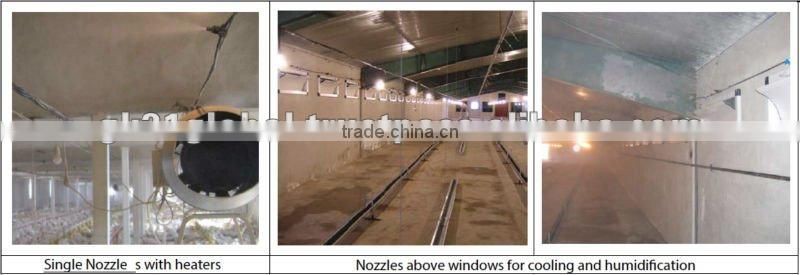

Single Nozzle : for spraying one way

Double Nozzle : for spraying two ways



Applications :

Cooling

Humidification

Crop protection
