Air Cool  : Centrifugal Cooling System



Model Name :  AM2S-02 + Rotator

What’s Aircool?

Aircool, centrifugal evaporative cooling system, is an ideal cooling system for livestock sheds, greenhouses, outdoor cooling, and many other applications. It doesn’t use nozzles, high pressure pumps, and compressors, but adopts centrifugal airflow spraying system. And there fore there is no clogging of nozzles and no trouble on its components. Aircool gives great cooling effect for the places where air conditioners are not available.



[Features]

-        Centrifugal spraying system without nozzles.

-        Easy installation & No need maintenance.

-        Adjustable water volume.

-        Separated operation of fan and sprayer.

-        Use normal water pressure or low pressure pump.



[Uses]

  Cooling Air, Humidity control, Ventilation, Disinfection, Dust & Odor control.

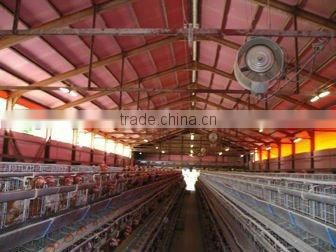

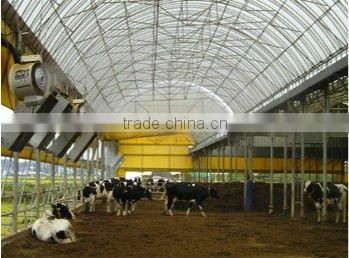

-        Livestock shed

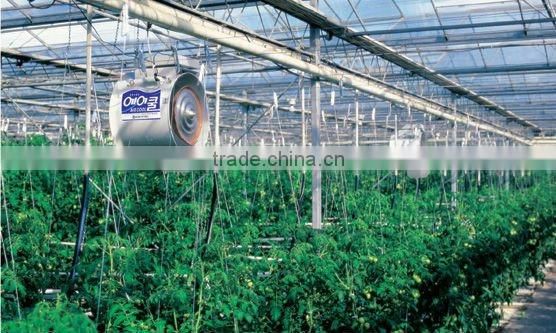

-        Greenhouse

-        Mushroom growing

-        Industry

-        Outdoor cooling

-        Cold storage



[Technical Specifications]

Air volume	m3/h	5,880
Range/ Throw	M	20~35
Power/Frequency/ phase	V/Hz	Buyer’s order
Speed at 60Hz (ventilator)                          (Disc)	rpm rpm	1,750 3,500
Power consumption(ventilator)                                 (vent.+disc/pump)	W W	300 620
Supply water pressure	bar	1~6
Water capacity	l/h	20~40
Covering area	m2/unit	100~320m2
Diameter	mm	Ø560
Air intake	mm	Ø610
Length	mm	420
Packed weight	kg	33
Dimensions of packaging	cm	67 * 67 * 57
