Specifications

1.316L/304 stainless steel

2. Titanium tube

3. Good acidic resistance

4. High heat transfer capacity

Introduce:

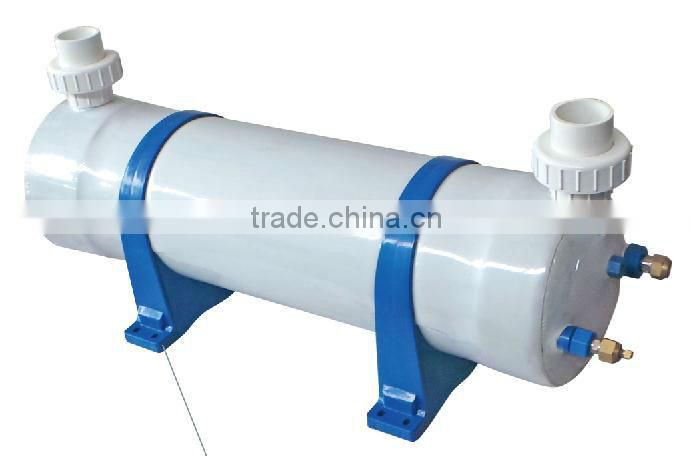

The heat exchangers are made of top injection PVC and titanium tube they passed the pressure test of 3.5Mpa and leak testing.

Outward can be made of 3 kinds of material: PVC-U or PP-R, stainless steel and so on. They are all compliant the environmental protection, with acid-resistant, corrosion –resistant.



Feature:



Made by top 316L, 304 stainless steel tube, with good acid resistance ability.

Compact design, with high heat transfer capacity.

Working temperature: 0°C~38°C

Range from 0.5hp~60hp

Pass two times pressure testing and leakage testing.

Can produce base on your design and   requiremen.



Technical data:



Model	Heating capacity		Water flow rate	Tube Diameter	Water Connection	Refrigerant In/Out
	KW	Btu	M3/h	mm	mm	mm
WN-Z5P	17	58000	7.5	12.7*0.6	50	12.7/12.7
WN-Z7P	23	78000	10.5	16*0.6	50	12.7/12.7
WNF-Z10P	33	110000	15	2-12.7*0.6	50	12.7/12.7
WN-Z12P	39	120000	18	2-12.7*0.6	50	12.7/12.7
WN-Z15P	47	160000	22.5	2-16*0.6	50	12.7/12.7

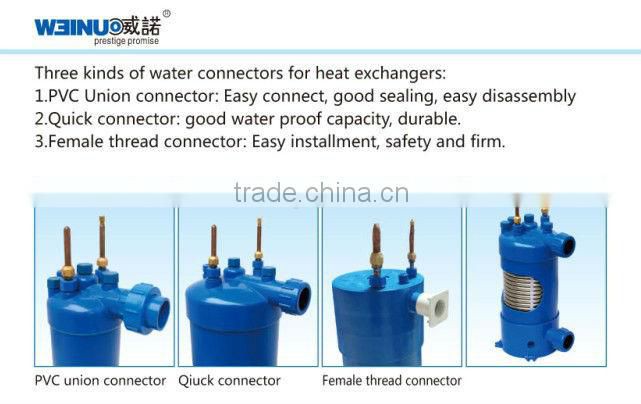

PVC water connector:
