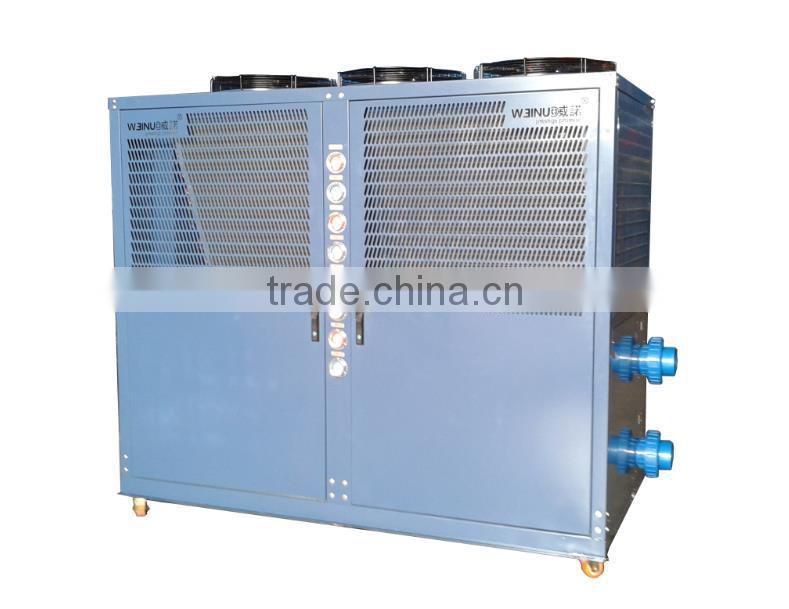

1)      The chiller/heater unit can be used for the adjusting and controlling of the fish pond water temperature in the hotels, restaurants, seafood markets, ocean parks, aquariums,pool .



2)      The heat exchanger in the unit is made of pure high-quality industrial titanium so it is well resistant to corrosion. And it is suitable both for seawater and fresh water.



3)      The unit has a double service-refrigerating and heating. There is electronic temperature controller with number display on it and users can set the temperature by themselves. It is stable, efficient and easy to operate.



4)      High-end temperature controlling system: power-off temperature memory system. It will restart at the former temperature once the power is reconnected.



Features:

1. Original Panasonic or Copeland compressor.
2. Copper condenser, high cooling capacity.
3. Pure titanium heat exchanger, with good corrosion resistance..
4. Microcomputer operate defrodting.
5. Double external rotor motor.
6. Temperature range: 5~35°C
7. Save 70% energy, environment –friendly
8. Low noise, vibration,, long life circle, and have safety protection devices.

 Technical data:



Model			WN-1BN 1BN	WN-1BN 1.5BN			WN-1BN 2BN		WN-1BN 3BN		WN-3BN 3BN		WN-3BN 5BN
Power			220V50Hz								380V
Normal refrigerating capacity/W			2700	3800			5200		7200		8580W		14890W
Normal heating capacity/W			2700	3800			5200		7200		8580W		14890W
Compressor power/HP			1	1.5			2		3		3		5
Rated power of the draught fan/W			40*2	100*2			100*2		120*2		120*2		150*2
Maximal air-flow capacity/m3 /h			850*2	1500*2			1500*2		1700*2		1700*2		1700*2
Input power of compressor	Refrigerating/KW		1	1.27			1.78		2.34		2.34		4.9
	Heating/KW		0.8	1.08			1.4		1.75		1.75		3.92
Total rated input current/A			4.8	6.5			9.8		12.5		6.8		9.1
Refrigerant			R22								R22  or  R410
Refrigerant intake volume/g			1000		1100	1300		1680			1680	2200
Evaporator material			PVC plastic barrel, pure industrial titanium
Diameter of water inlet/outlet/inch			1, 1/2
Using range		Ambient temperature/°C	5°C-35°C
		Chilled water temperature/°C	5°C-25°C
		Allowed maximal water pressure/MPA	≤0.2
Factory default of temperature controller			Temperature: 20°C      temperature difference: 2°C
Outward size: length*width*height/MM3			600*380* 576		720*390* 678	720*440* 678		735*460* 727		735*460* 720		850*550* 950
Net weight/KG			45		65	68		78		93		150
