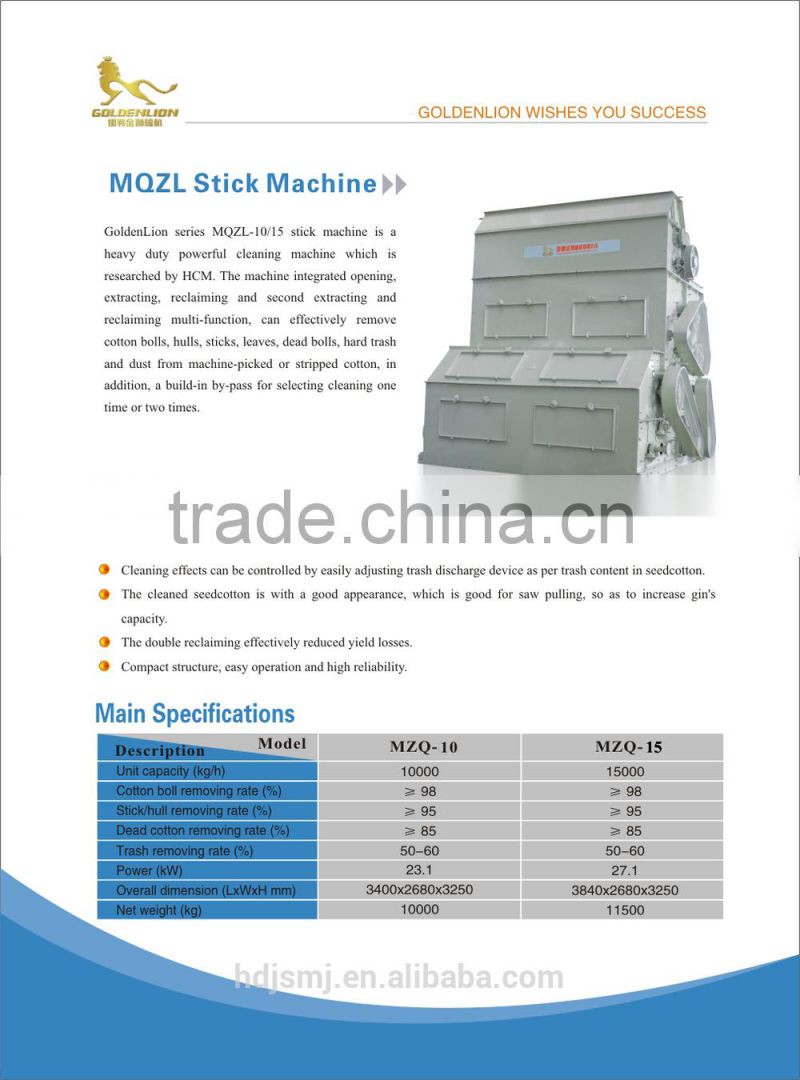

MQZL Stick Machine





Goldenlion series MQZL-10/15 stick machine is a heavy duty powerful cleaning machine which is researched by HCM for machine-picked seedcotton. The machine integrated opening, extracting, reclaiming and second extracting and reclaiming multi-function, can effectively remove cotton bolls, hulls, sticks, leaves, dead bolls, hard trash and dust from machine-picked or stripped cotton, in addition, a build-in by-pass for selecting cleaning one time or two times.





Main Features



* Excellent cleaning effect, can offer a maximum cleaning of dead cotton from the seedcotton, to improve the seedcotton quality and pave the way for lint upgrading.
* Cleaning effects can be controlled by easily adjusting trash discharge device as per trash content in seedcotton.
* The cleaned seedcotton is with a good appearance, which is good for saw pulling, so as to increase gin’s capacity.
* The double reclaiming effectively reduced yield losses.
* Compact structure, easy operation and high reliability.





Main Technical Specification



Description Model:                           MQZL-10           MQZL-15
Unit capacity (kg/h):                         10000                15000
Cotton boll removing rate (%):         ≥ 98                    ≥ 98
Stick/hull removing rate (%):            ≥ 95                    ≥ 95
Dead cotton removing rate (%):       ≥ 85                    ≥ 85
Trash removing rate (%):                 50-60                 750-60
Power (kW):                                     23.1                    27.1
Overall dimension (L x W x H mm): 3400x2680x3250 3840x2680x3250
Net weight (kg):                              10000                   11500
