MQY foreign fiber cleaner

Most of the cotton harvest method in the world is hand-picking. Hair, feather, plastic fiber, bast-fiber, and etc. foreign fiber could be mixed with picked seedcotton. Even in Machine-picked cotton there are some leaves, broken branches and plastic film mulch, etc. The current seedcotton cleaners in the market primarily separate cotton leave, mote, dead cotton and dust from the seedcotton, but for the foreign fiber, we have to separate them manually. This is high labor intensity, low efficiency and high production cost work, and it is difficult to separate such as hair, bast-fiber and plastic film mulch smaller foreign matters. These foreign matters not only lower the lint price but also affect yarn quality.

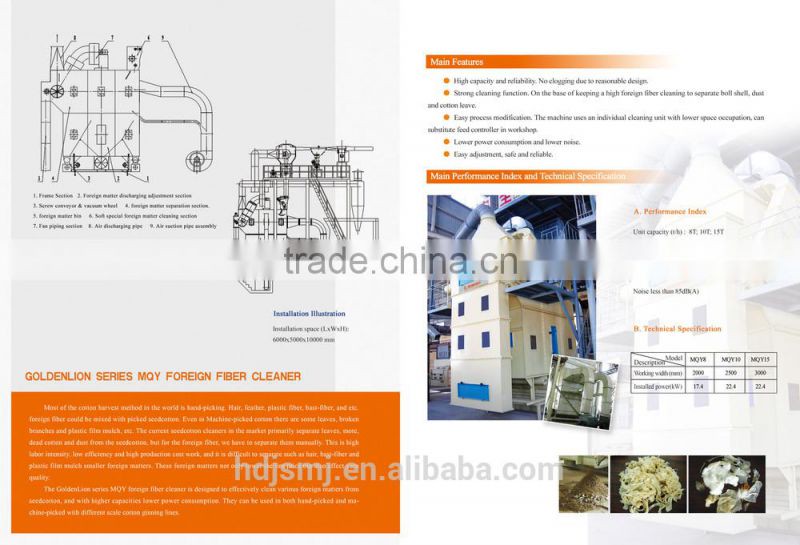

The Goldenlion series MQY foreign fiber cleaner is designed to effectively clean various foreign matters from seedcotton, and with higher capacities lower power consumption. They can be used in both hand-picked and machine-picked with different scale cotton ginning lines.



Main Features

1. High capacity and reliability. No clogging due to reasonable design.
2. Strong cleaning function. On the base of keeping a high foreign fiber cleaning to separate boll shell, dust and cotton leave.
3. Easy process modification. The machine uses an individual cleaning unit with lower space occupation, can substitute feed controller in workshop.
4. Lower power consumption and lower noise.
5. Easy adjustment, safe and reliable.



Main Performance Index and Technical Specification

A. Performance Index

Unit capacity: 8T; 10T; 15T
Soft and special foreign matter removing rate: ≥85%
Residual film removing rate: ≥90%
Hair, feather and animal hair: ≥40%
Noise: no more than 85dB(A)

B. Technical Specification

Description Model:  MQY8    MQY10    MQY15
Working width (mm): 2000     2500        3000
Installed power:        17.4       22.4         22.4
