Feature

Windows operation interface, figure button, mouse operation

96-well plate, multiple tests in the single plate.

Arrangement of Test item in micro-plate can be store and re-use

Parameter can be modified and stored

Plate shaking, speed and time adjustable

Open system, test item and parameters can be added or modifiedLarge storage for 1000 test item and 1,000,000 results

10.4 inch color LCD

Printing comprehensive report, include hospital and patient information and test results

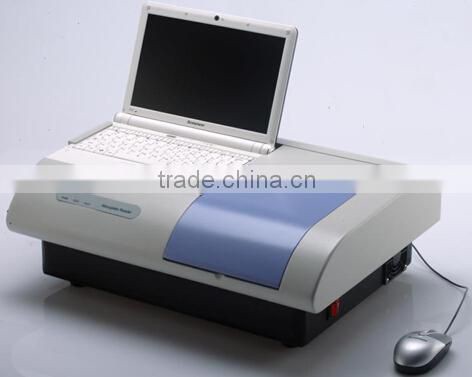

Built-in Laptop Computer, Easy to use.



Specifications

Micro plate types: 96-well plate(U,V,or plat-bottom)

Test mode: End-point, kinetic, Multi-wave analysis

Measuring system: 8-channel optical system

Light source: Tungsten Halogen,12V/20W,>2000 hours

Wavelength: 405nm, 450nm, 492nm, 630nm, 4 free positions for additional filters

Wavelength accuracy < 2nm

Reading range: 0.000-4.000 Abs

Measurement range: 0.000-3.000Abs

Resolution <1% or ±0.001Abs

Stability: <±0.005Abs/10min

Well Coincidence:≤0.015A

Linearity: r > 0.999

Repeatability: < 0.3%

Reading speed : 5s single wavelength , 10s double wavelength

QC: Westguard Multi-rule, automated QC alert.

Self-Checking function : Self-checking and calibration function.

CPU: High-speed CPU

Printer: External jet printer, multi-form patient report.

Interface :RS232 interface, USB and PC connection.

Power supply: 220VAC 15% or 110VAC 15%50-60Hz 100w

Work environment: Temp 5℃-40℃;Humi ≤85%;

Machine Dimension: : 43CM*34CM*16CM

Weight: 9 KG
