One in Two Power Divider

Product description


Product Description





Product Description

Power dividers can divide one signal into two or N way equal or non-equal energy,in reverse,they are also used as combiners by combining multiple signal into one.They are mainly usued in feed  network in antenna array,mixer and balanced amplifier, finish the work of distributing, combining and measuring power, isolating signal sources and measuring swept reflected coefficient etc.



Technical Parameters

Items

Indicatorsators

Frequency Range (MHz)

800 -2500MHz

Insertion Loss

≤ 3.8 dB

Flatness In Band

≤0.5 dB

VSWR

≤1.4

Isolation

≥20dB

Power Capacity

≤50W

Impedance

50Ω

Connector Type

N-Female



Operation Environment

Temperature:

Operating: -35°C to +80°C

Storage : -55°C to +95°C

Humidity: 0%-100% non-condensing

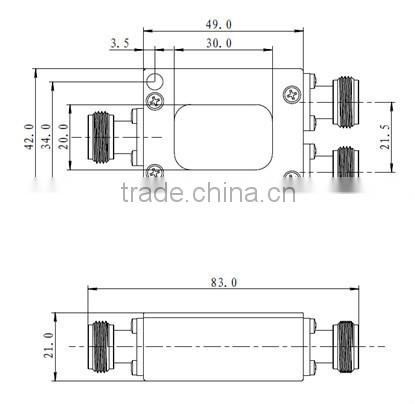

Outline Dimensions

One in Two Power Divider



Specifications



1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE

Production Line

One in Two Power Divider



Machine and test equipment:

One in Two Power Divider

Design concept

It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.



Environmental Guarantee



Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.



After-sale service



Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).



Other Service



We can produce products in your brand according to your request.

 If you need more information about it, please send me inquiry, you can get our reply within one day.
