Cavity Directional Couplers

Product description


Product Description





Product Description

Directional couplers are used to supervise and control transmitter’s output power and output spectrum, they are also taken as a power meter together with detector or level indicator. CLCP-01XXA-N serial products feature compact small size,light ,low loss of mainline transmission, excellent flantness in frequency response of coupling value, high power capacity, stable performance and high reliability etc.



Specifications

  Items

Indicators

  Model Number

 CLCP-01XXA-N

  Frequency

  Range(MHz)

800-2500MHz

  Coupling

  Value(dB)

  -5.0  -7.0  -10.0  -15.0  -20.0 -30.0  -40.0

  Flatness In

  Band

≤0.4≤0.6≤0.6≤0.8  ≤0.8  ≤1.2≤1.2

  Insertion

  Loss(dB)

≤2.0  ≤1.3≤0.7  ≤0.4≤0.2≤0.2≤0.2
  VSWR≤1.3

  Directivity

  (dB)

≥20

  Three order Intermodulation

≤130 dB
  Impedance

50Ω

  Connector Type

N-Female

  Power Capacity

50W



Operation Environment

Temperature:

Operating: -40°C to +70°C

Storage : -55°C to +95°C

Humidity: 0%-100% non-condensing

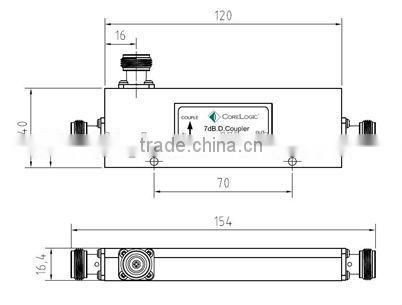

Outline Dimensions

Cavity Directional Couplers

                                                                                                          Unit:mm

Production Line

Cavity Directional Couplers

 Machine and test equipment:Cavity Directional Couplers

Design concept

It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.



Environmental Guarantee

Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.



After-sale service

Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).



Other Service

We can produce products in your brand according to your request.
