Stripline Circulators

Product description


Product Description





Product Description

Circulators and Isolators permit flow of microwave energy in one direction only. Isolators make energy from input to output and Circulators control energy transfer follow one certain loop. Thus to make each calss and system of microwave equipment independence and isolate from each other.



Technical Parameters

ItemsIndicators
Frequency Range

1000 -3000MHz

Band Width1880-1900MHz(20MHz)
Insertion Loss ≤0.7dB
Isolation≥23dB
VSWR≤1.25
Reverse Power≤10W
Impedance50Ω
Connector Type

W-W



Operation Environment

Temperature:
Operating: -35°C to +80°C
Storage : -55°C to +95°C
Humidity: 0%-100% noncondensing

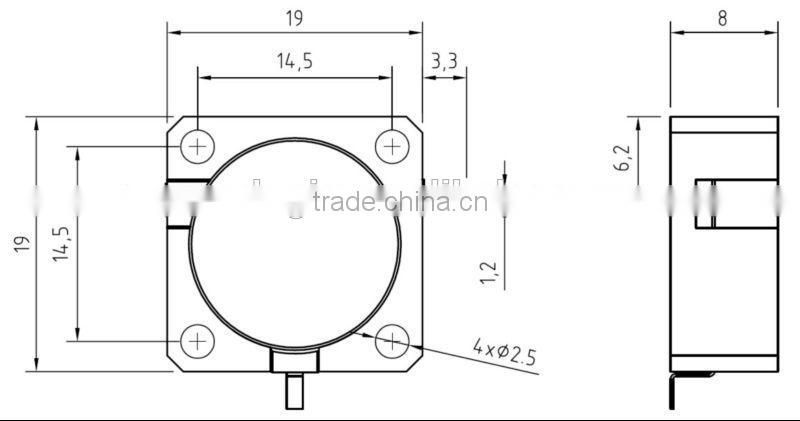

Outline Dimensions

Stripline Circulators

                                                                                                                         Unit:mm

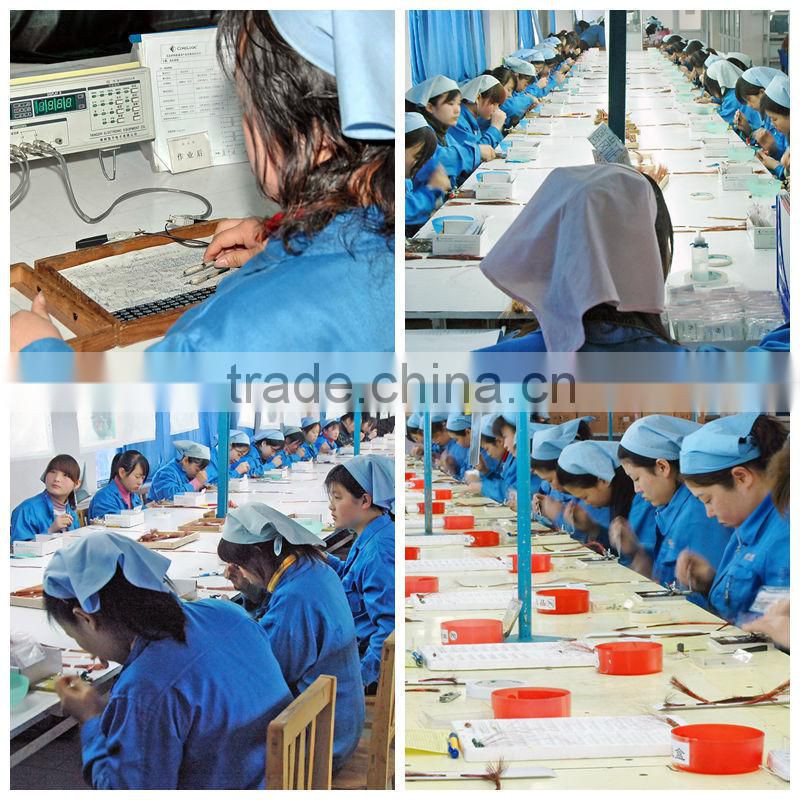

Production Line

Stripline Circulators

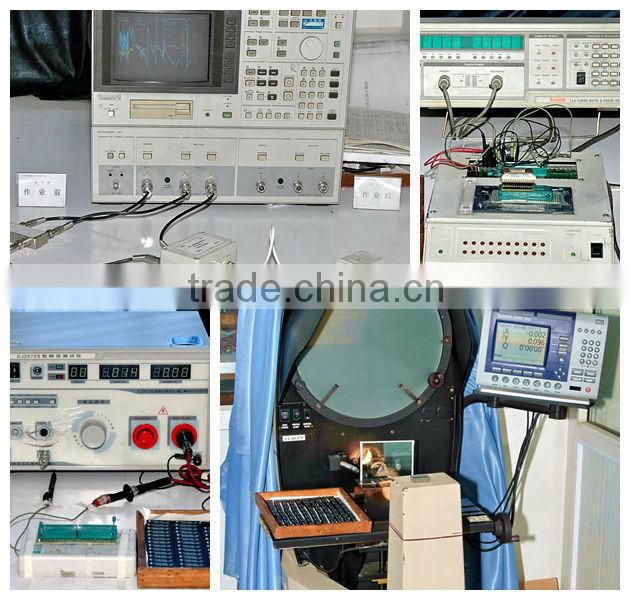

Machine and test equipment:

Stripline Circulators

Design concept

It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.



Environmental Guarantee

Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.



After-sale service

Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).



Other Service

We can produce products in your brand according to your request.



If you need more information about it, please send me inquiry, you can get our reply within one day.
