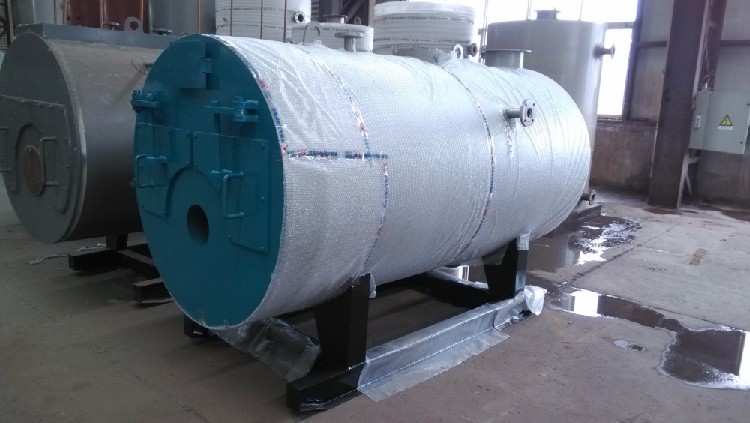

High Efficiency 93% Atmospheric Hot Water Boiler CWNS 1.4MW 1200000 kcal/h
Product description
Product Overview
Our High Efficiency CWNS Series Atmospheric Hot Water Boiler sets a new standard in commercial heating technology. This 1.4MW (1,200,000 kcal/h) unit achieves an exceptional 93% thermal efficiency through advanced engineering and condensing technology, while maintaining the safety benefits of atmospheric pressure operation. Designed for reliability and fuel flexibility, it represents the perfect balance of performance, economy, and compliance for modern heating applications.
Key Advantages:
- Industry-Leading Efficiency: Achieves 93% thermal efficiency through optimized heat exchange surfaces and condensing technology, significantly reducing fuel consumption and operating costs.
- Atmospheric Pressure Safety: Operates at standard atmospheric pressure, eliminating explosion risks associated with pressurized systems and simplifying regulatory compliance.
- Multi-Fuel Capability: Compatible with natural gas, light diesel oil, and heavy oil (configurable), providing adaptability to local fuel availability and pricing.
- Smart Control System: Features fully automatic PLC control with precise temperature modulation, self-diagnosis, and remote monitoring capabilities.
- Compact & Quiet Operation: The horizontal design offers a small footprint while advanced combustion technology ensures quiet operation suitable for urban environments.
Technical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| Model | CWNS1.4-85/60-YQ | - |
| Rated Thermal Capacity | 1.4 / 1,200,000 | MW / kcal/h |
| Outlet/Return Temperature | 85/60 | °C |
| Thermal Efficiency | ≥ 93 | % |
| Working Pressure | Atmospheric | - |
| Natural Gas Consumption | ~171.4 | m³/h |
| Light Diesel Consumption | ~141.2 | kg/h |
| Power Supply | 380V/50Hz/3-Phase | - |
| Electrical Power | 11 | kW |
| Shipping Weight | ~4.1 | Ton |
| Dimensions (L×W×H) | 3600×1660×2100 | mm |
Applications
This high-efficiency boiler is ideal for:
- Large commercial buildings (hotels, hospitals, shopping malls)
- Institutional facilities (schools, universities, government buildings)
- Light industrial processing and manufacturing
- District heating systems and apartment complexes
Why Choose Our Boiler?
- Significant Fuel Savings: The 93% efficiency rating translates to substantial cost reduction compared to conventional boilers
- Environmentally Friendly: Lower emissions and reduced carbon footprint meet stringent environmental standards
- Reliable Performance: Quality components and robust construction ensure long service life with minimal maintenance
- Easy Installation: Pre-assembled modules and atmospheric design simplify installation process
- Global Certification: Complies with international standards for safety and performance
Packaging & Shipping
- Main Unit: Weather-proof packaging with reinforced steel frame protection
- Control System: Separate wooden crate with anti-static protection
- Accessories: Individually packed in sealed containers
- Export Standard: All packages clearly marked with handling instructions
FAQ
- Q: How is 93% efficiency achieved?A: Through condensing technology that recovers heat from flue gases and advanced heat exchanger design that maximizes heat transfer.
- Q: What maintenance is required?A: Regular maintenance includes annual combustion analysis, heat exchanger cleaning, and burner adjustment. The control system provides maintenance reminders.
- Q: Can this boiler be used in residential areas?A: Yes, the quiet operation and clean combustion make it suitable for urban environments where noise and emissions are concerns.
- Q: What is the expected lifespan?A: With proper maintenance, the boiler can operate efficiently for 15+ years thanks to its corrosion-resistant construction.
Contact us today to learn how our high-efficiency boiler can reduce your operating costs!
